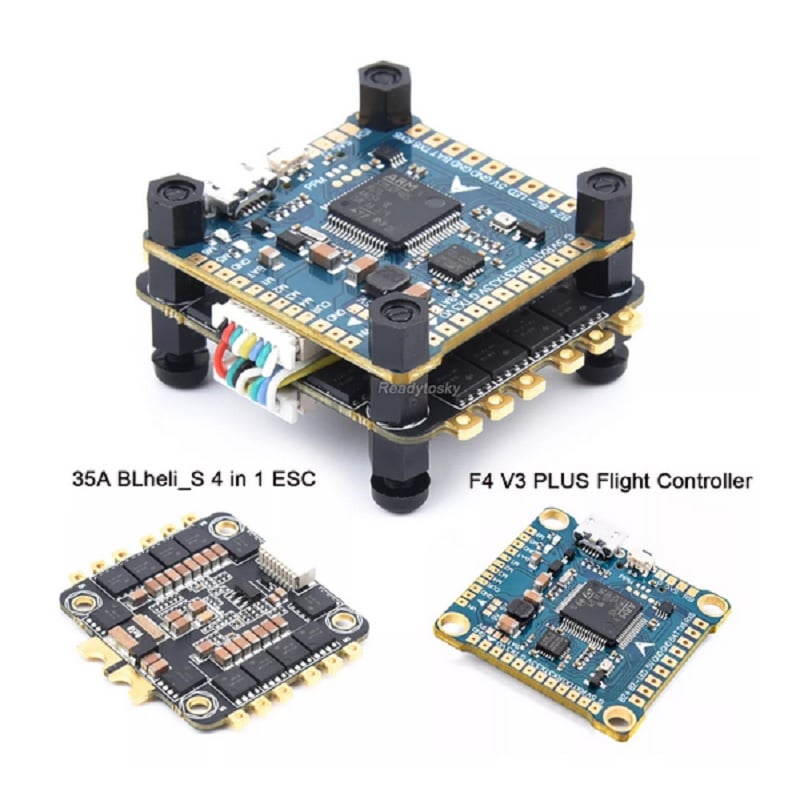

35A 4in1 ESC & F4 V3S Plus Flight Control V3.5 V3 S Built-in Image Filtering OSD

This product is a combo kit of 1 Flight  controller & 1 ESC which are highly efficient to work in drones, we brought this combo of flight controller & ESC  in chipper price than market price, This  high performance Flight controller is able to handle your Drone &  model plane controller with 95% accuracy.

ESC (Electronic Speed Controller) comes in the kit is compatible with flight controller they work together very efficiently.

The flight controller uses the data gathered by the sensors to calculate the desired speed for each of the four motors. The flight controller sends this desired speed to the Electronic Speed Controllers (ESC’s), which translates this desired speed into a signal that the motors can understand.

The MPU6500 is the most widely used IMU sensor, and it’s used in nearly all of the greatest flight controllers. The reason for this is that it has a high vibration tolerance and can sample the gyro at 8kHz over an SPI interface.

Note: Product may vary from images in terms of Color and Design

Features:

1. This is combo kit of Flight controller & ESC
2. High performance & efficient flight controller & ESC
3. Light weight, Easy to connect
4. Compact in size
5. Flight controller comes with ARM processor
6. ESC is build to give best performance

Specifications:

Product name: 35A BLheli_S 2-6S 4 in 1 ESC

1. Model: REV35
2. Con. Current: 35A
3. Peak- Current(10s): 40A
4. LBEC: NO
5. SBEC: NO
6. Lipo: 3-6S
7. Programming: YES
8. Weight: 13g
9. Size(PCB): 36 x 36mm
10. Hole size: 30.5 x 30.5mm
11. BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
12. Supports 3-6S Lipo input
13. 4PWM input
14. Built-in Current sensor
15. Only 36x36mm, mount holes 30.5×30.5mm M3
16. No External capacitors needed
17. Dshot600 ready(Default) Support PWM/ONESHOT/MULTISHOT/DSHOT

Product name: F4 V3 PLUS Flight Controller

1. Firmware: Omnibus~f4
2. Size: 36 x 36mm
3. Mounting holes: 30.5×30.5mm
4. STM32 F405 MCU
5. Dshot support
6. Drag and Drop OSD configured via Beta-flight
7. BMI270 / MPU6500 6 axis SPI gyro & accelerometer(send at random )
8. SBUS / PPM AND Spketrum DSMX ports
9. MicroSD card blackbox
10. Baro (BMP280)
11. 5v3a 9V3A BEC
12. On-board video filters (only 5V to VTX and camera)

Packages Include:

1 x 35A 4in1 ESC & F4 V3S Plus Flight Control V3.5 V3 S Built-in Image Filtering OSD
