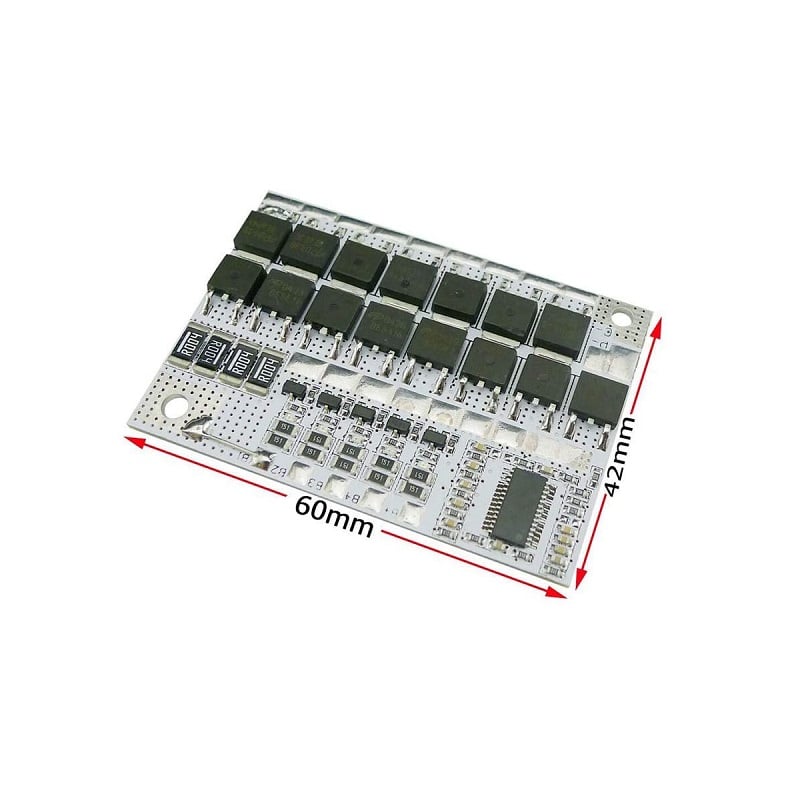

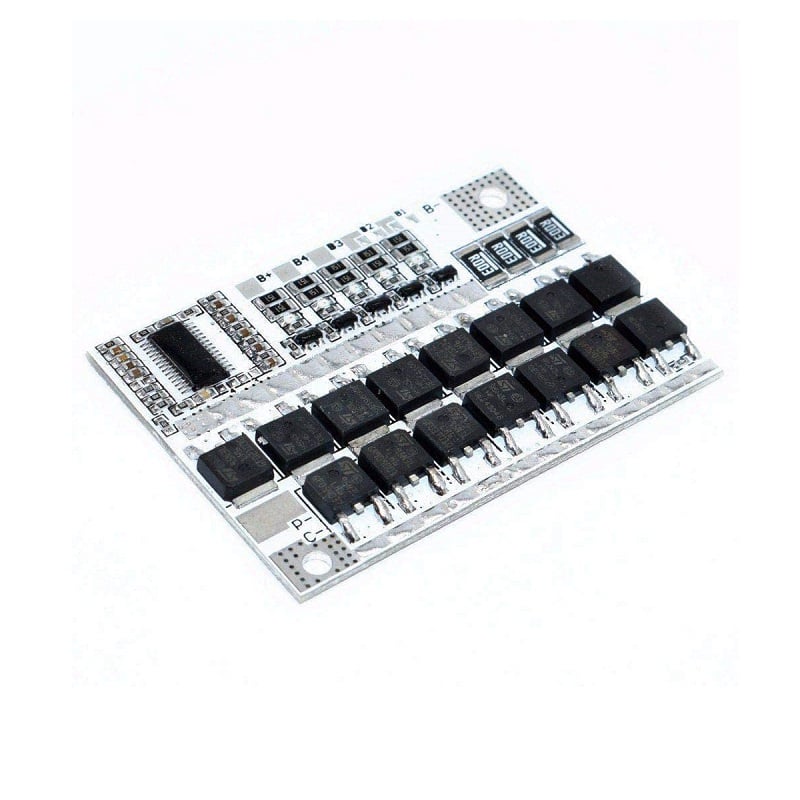

3S 100A LiFePO4 Battery Balance Charging BMS Protection PCB Board-White

This protection board is 3s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can used for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.

Features:

1. Temperature protect: Yes
2. Disconnect protect: Yes
3. Shortage protection: Yes
4. Shortage delay: 100-600 uS
5. Shortage protect recovery: YES
6. Charging Current: 60A
7. Current Balance: Yes

Package Includes:

1 x White 4S 100A LiFePO4 Lithium Battery Protection PCB Board
