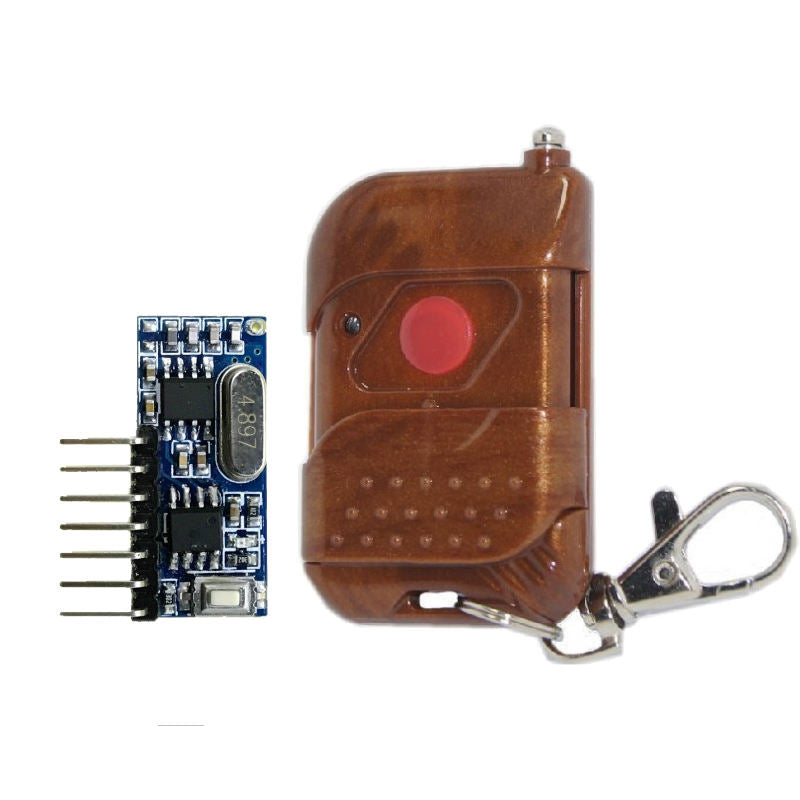

433 MHz Brown Color Single Button Wireless Button RF Receiver Module Kit Remote Control with Receiver

433 MHz Brown Color Single Button Wireless Button RF Receiver Module Kit Remote Control with Receiver, RF receivers are electronic devices that separate radio signals from one another and convert specific signals into audio, video, or data formats. RF receivers use an antenna to receive transmitted radio signals and a tuner to separate a specific signal from all of the other signals that the antenna receives.

Main parameters of the remote control:

• Working voltage: DC12V/23A
• Operating frequency: 315MHz, 433MHz (other frequencies can be customized)
• Standby current: 0mA
• Working current: 16mA
• Coding method: fixed code (2264/2260 chip pad pair code)
• Learning code (1527 chip)
• Modulation method: OOK (amplitude modulation)
• Reference distance: generally can reach 30 meters to 80 meters in use, many factors are subject to the test
• Working temperature: -10°C~+70°C
• Size: 58 x 38 x 14mm

Receiver main parameters:

• Working voltage: DC2.5V-5V
• Working current: 3.7mA
• Sensitivity: -108DBM
• Rate: MAX 10 KB/S
• Working mode: jog, self-locking, interlocking (freely convertible)
• Module output: 4 CMOS level signals, which can correspond to 4 buttons of remote control "ABCD"
• Receiver module can store remote control: 16
• Support coding chip model: EV1527, PT2262, 2264, 2260 other customization
