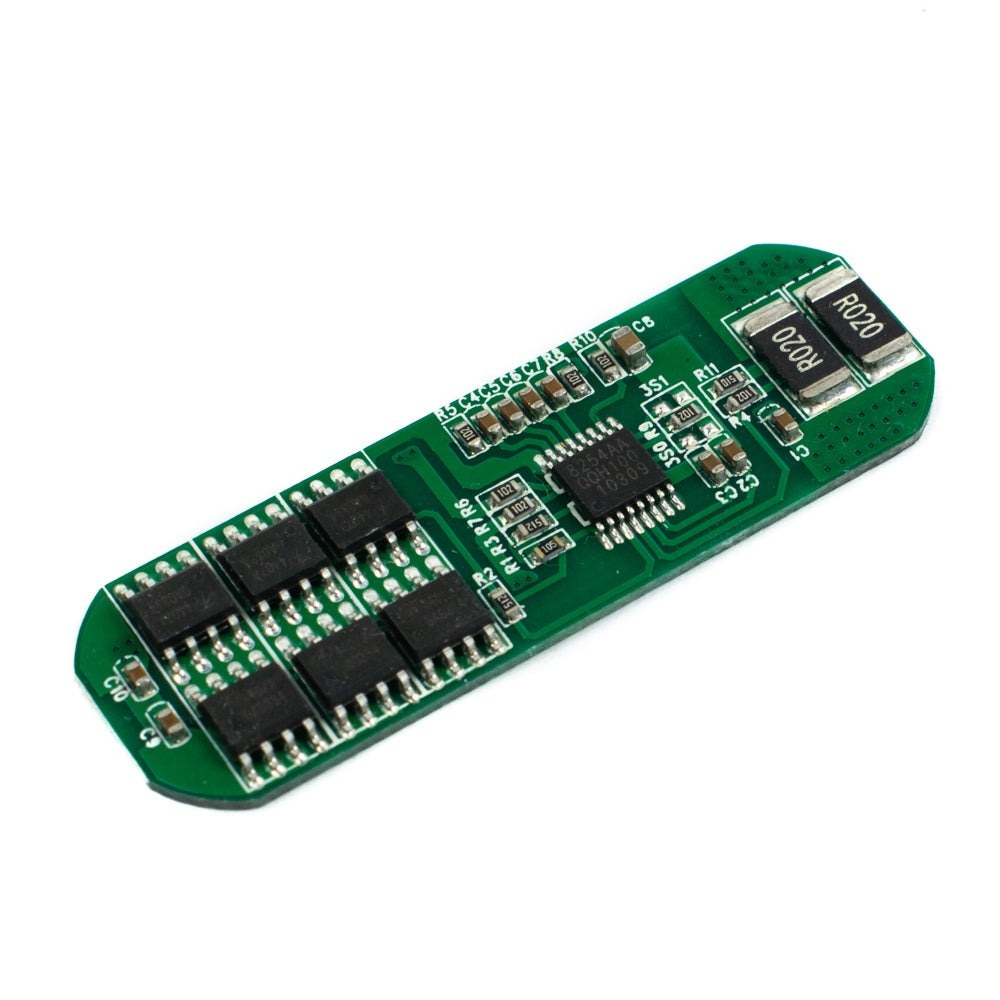

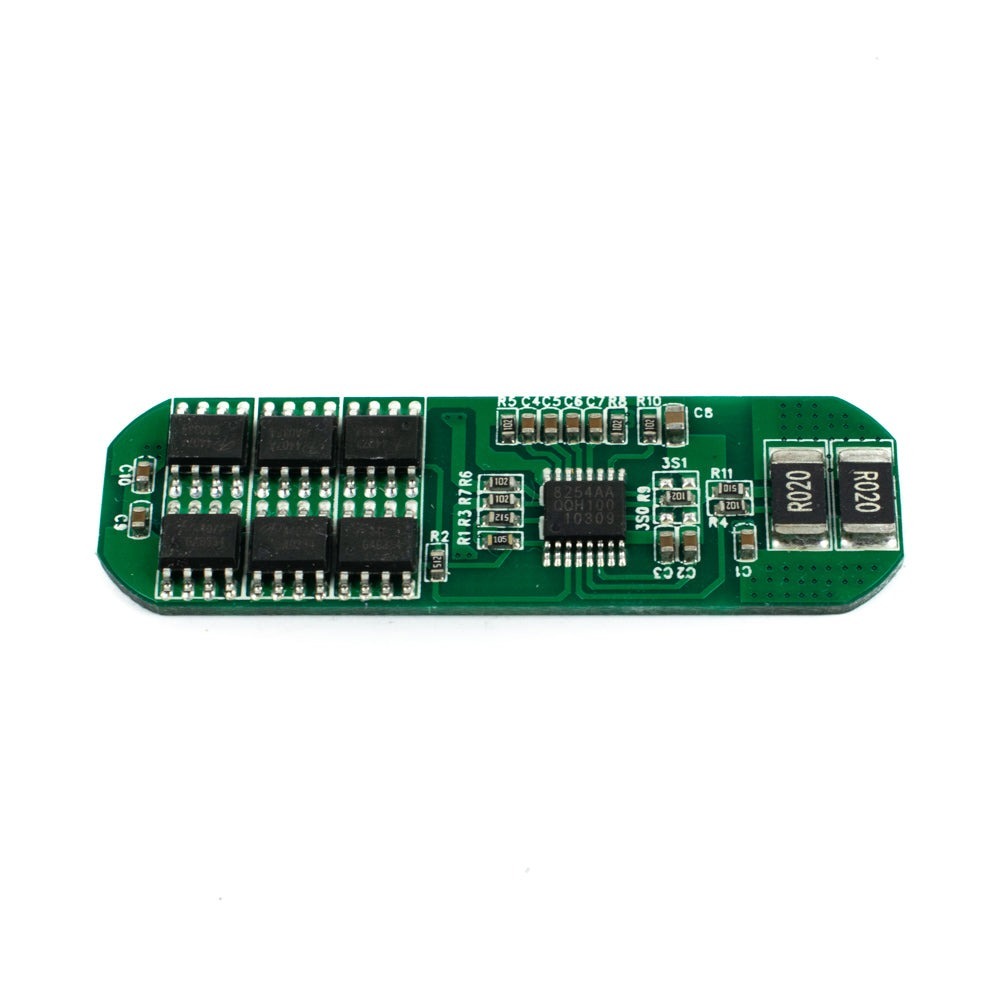

4S 8A 12.8V LiFePO4 BMS Battery Protection Board

SKU: RZ24341282 Category: Batteries & Power

₹ 247.25

Out of Stock

Buy 4S 8A 12.8V LiFePO4 BMS Battery Protection Board online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 242.31
11 – 30	3%	₹ 239.83
31 – 50	4%	₹ 237.36
51 – 100	5%	₹ 234.89

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Batteries & Power

Subcategory Batteries (General)

SKU RZ24341282

This is a LiFePO4 battery BMS protection board, often known as a battery management system, for LiFePO4 batteries. The board's design is lightweight, making it simple to store and move. Overcharging and over-discharging protection, as well as short circuit and overcurrent protection, are all included on the board. This board may also be used to charge lithium batteries, as long as they are rechargeable. We can construct a battery pack with a voltage rating of up to 15V DC by combining 4 LiFePO4 electric cells with this BMS system. Charging the LiFePO4 battery without BMS may degrade the quality of battery.

Features

High-accuracy voltage detection circuit;
Terminal of the charger using a high voltage device;
Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
MOS transistor can control the battery charge and discharge;
Low standby current consumption.

Specifications

Single overcharge detection voltage	3.7V±0.025V
Overcharge detection delay time	1.5s
Single overcharge release voltage	3.60V±0.04V
Cell balance detection voltage	3.5V±0.025V
Cell balance release voltage	3.50V±0.025V
Balance Current	70mA±10mA
Single over-discharge detection voltage	2.10V±0.08V
Over-discharge detection delay time	1.5s
Single over-discharge release voltage	2.40V±0.1V
Quiescent Current	≤40µA
Sustainable Discharge Current	8A
Sustainable Charging Current	8A
Stop Charging at Temp.	>50°C
Stop Discharging at Temp.	>70°C
Size	70x17x3mm
Country of Origin	China
