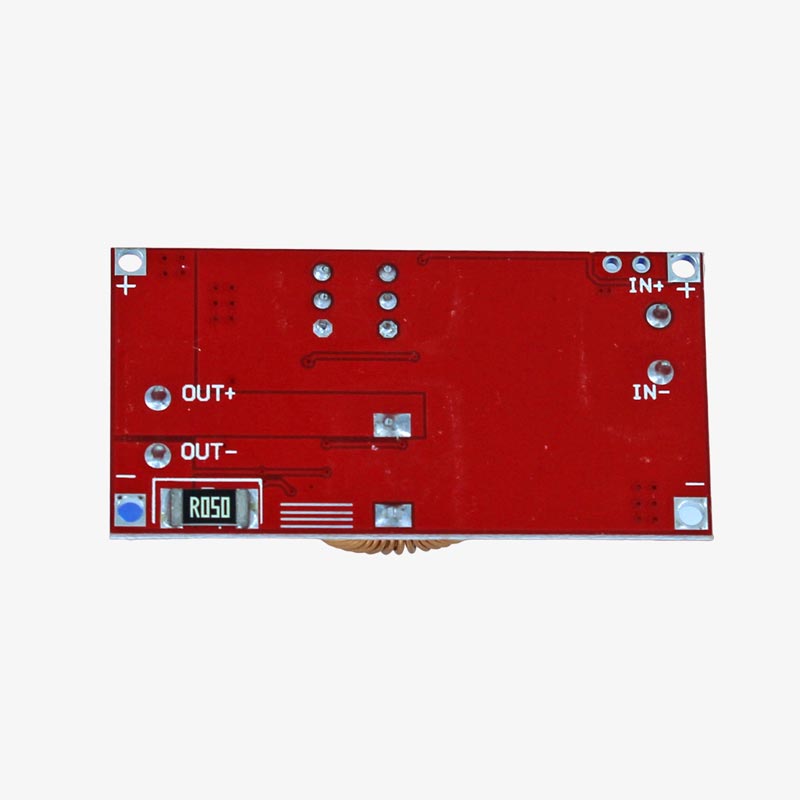

5A DC to DC Converter with Constant Current (CC) and Constant Voltage (CV) Control

This DC to DC converter module can work as a small desktop power supply by taking in a DC input between 4-38V and converting to Adjustable DC Voltage between 25V to 36V with a maximum current of 5A.

Both, the maximum output voltage (CV) and current (CC) can be set using the trimpot given on the module. Hence, the module is very commonly used for Lithium battery charging, Powering LED lights etc

Do note that this module cannot step-up voltage, so the input voltage should always be higher than output voltage and at any point the maximum output power will be 75W maximum.

Features:

1. Input Voltage Range: 4-38V
2. Output Voltage Range: 25-36V continuously adjustable
3. Output current: adjustable, up to 5A
4. Output power: up to 75W
5. Working temperature :-40 ~ + 85 degrees
6. Working frequency: 180KHz

Applications:

• Lithium Battery Charger
• LED Drivers
• Step-down Power regulators
• DIY Bench Power Supply
