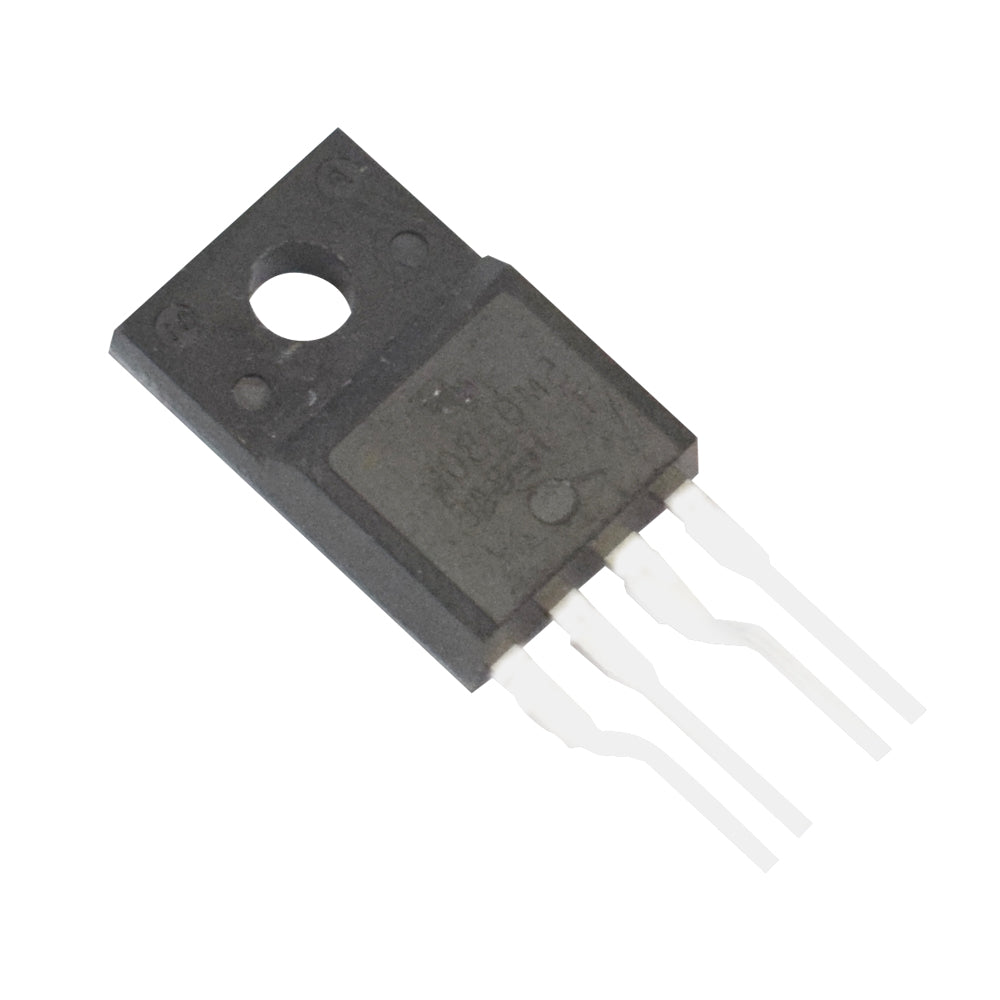

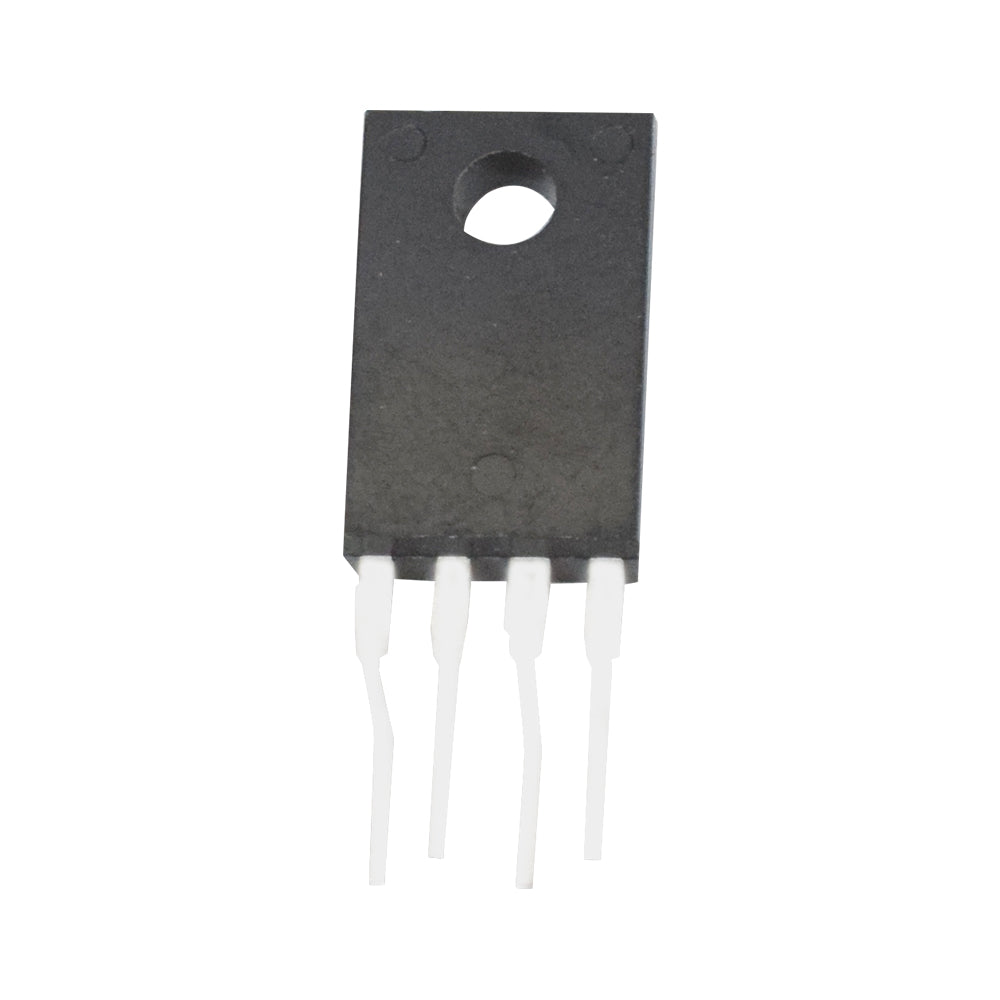

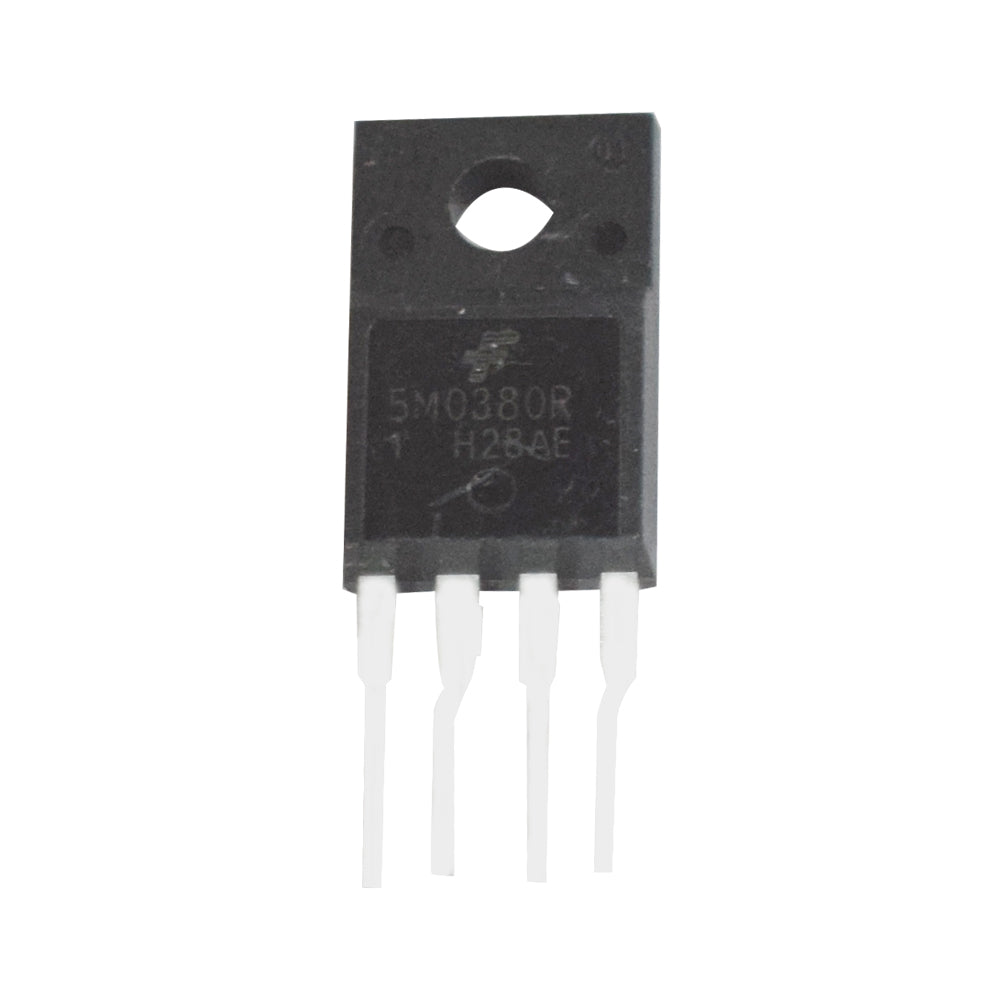

5M0380R 650V, MOSFET (TO-220F-4L)

SKU: RZ24338055 Brand: ON Semiconductor Category: General

₹ 134.55

Out of Stock

Buy 5M0380R 650V, MOSFET (TO-220F-4L) online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 131.86
11 – 30	3%	₹ 130.51
31 – 50	4%	₹ 129.17
51 – 100	5%	₹ 127.82

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand ON Semiconductor

Category General

Subcategory General

SKU RZ24338055

The Fairchild Power Switch(FPS) product series was created specifically. A high voltage power SenseFET and a current mode PWM IC make up the Fairchild Power Switch (FPS). The fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimised gate turn-on/turn-off driver, the over-voltage protection, and the temperature-compensated precision current sources are all integrated into the included PWM controller for loop compensation and fault protection. A Fairchild Power Switch (FPS) can decrease the total number of components, design size, and weight while boosting efficiency, productivity, and system dependability when compared to a discrete MOSFET and a PWM controller or an RCC solution. Its fundamental framework is suitable for the It has a total of four pins, and its package is TO-220F-4L.

Applications • SMPS for VCR, SVR, STB, DVD & DVCD • SMPS for Printer, Facsimile & Scanner • Adaptor for Camcorder

Features • Precision Fixed Operating Frequency (100/67/50kHz) • Low Start-up Current(Typ. 100uA) • Pulse by Pulse Current Limiting • Over Current Protection • Over Voltage Protection (Min. 25V) • Internal Thermal Shutdown Function • Under Voltage Lockout • Internal High Voltage Sense FET • Auto-Restart Mode

Specifications

Model	5M0380R
Package	TO-220F-4L
Type	MOSFET
No of Pins	4
Brand	Fairchild
Max Drain Voltage	650V
Drain pulse current	12.0A
Operating Temperature	65 to 150° C
Country of Origin	China
