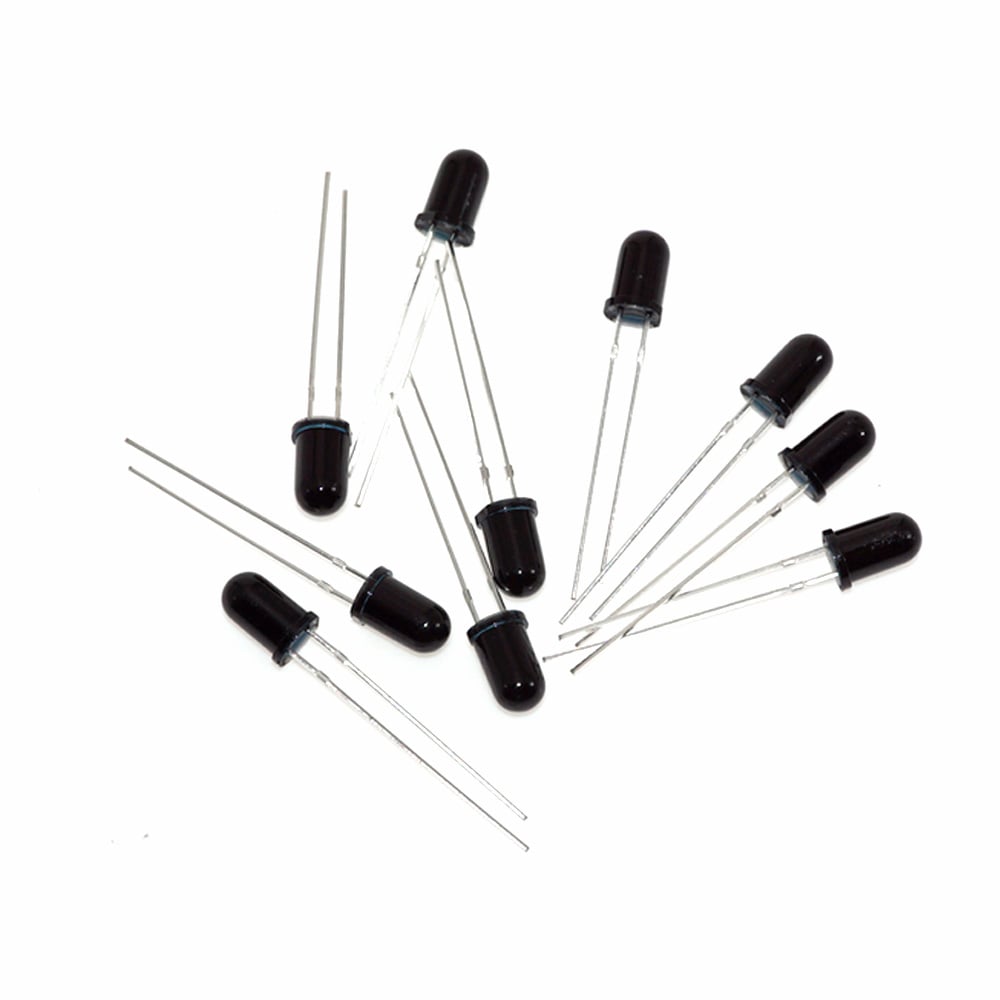

5mm 940nm Infrared Receiver LED IR Diode LED- (Pack of 5)

IR Receiver LED as the name suggests is used to detect Infrared Rays. It is always connected in negative polarity i.e., Anode and Cathode are inversely connected to ground and supply voltage respectively. When light falls on the IR Receiver LED it allows current to flow through it. The amount of current flow is directly proportional to the light falling on the IR Receiver LED. The Diameter of this IR Receiver LED is 5mm. Power dissipation (Pd) is 100mW.

Specifications and Features:

1. Diameter : 5mm
2. Power dissipation Pd(mW) : 100
3. Reverse voltage : 5V
4. Forward Voltage : 1.2 V-1.3V
5. Operating Temperature : -40°C- +100°C
6. Peak Response wavelength : 940nM
7. Lead Spacing : 2.54mm

Package Includes:

1 x 5mm 940nm Infrared Receiver LED IR Diode LED- (Pack of 5)
