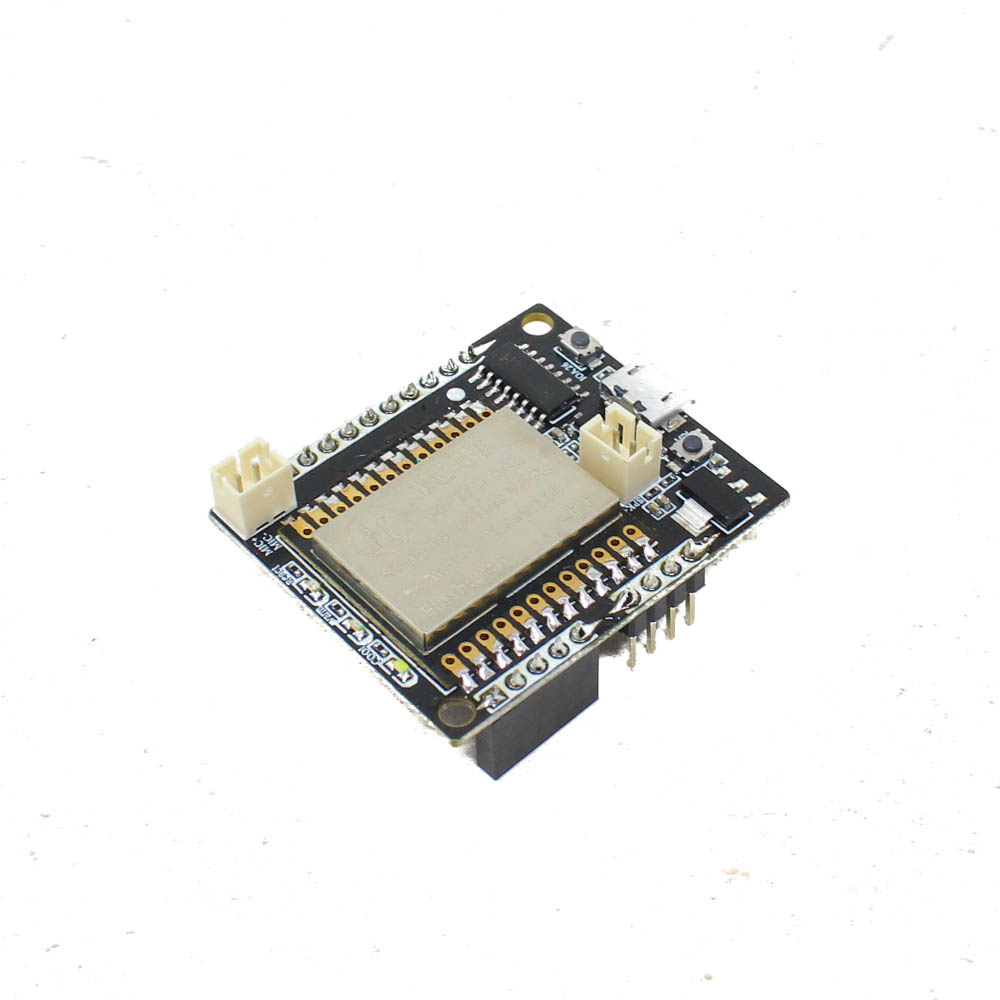

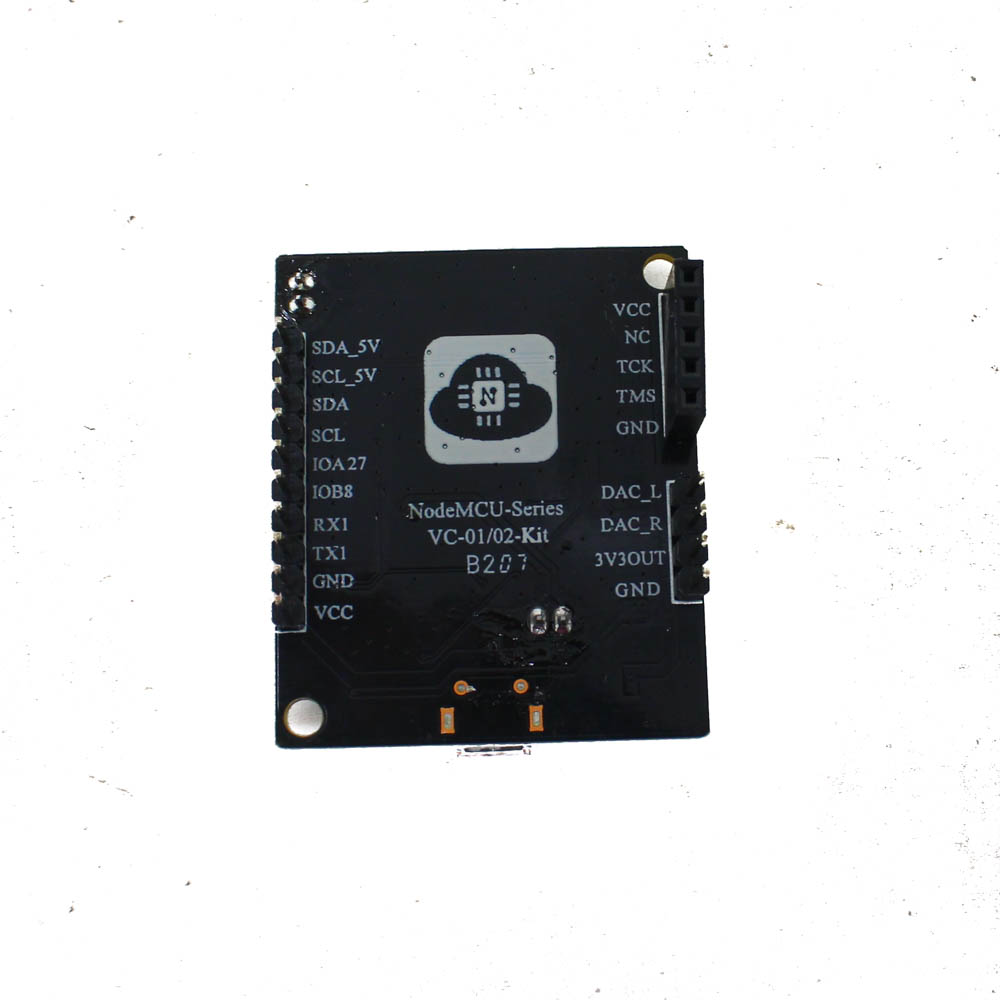

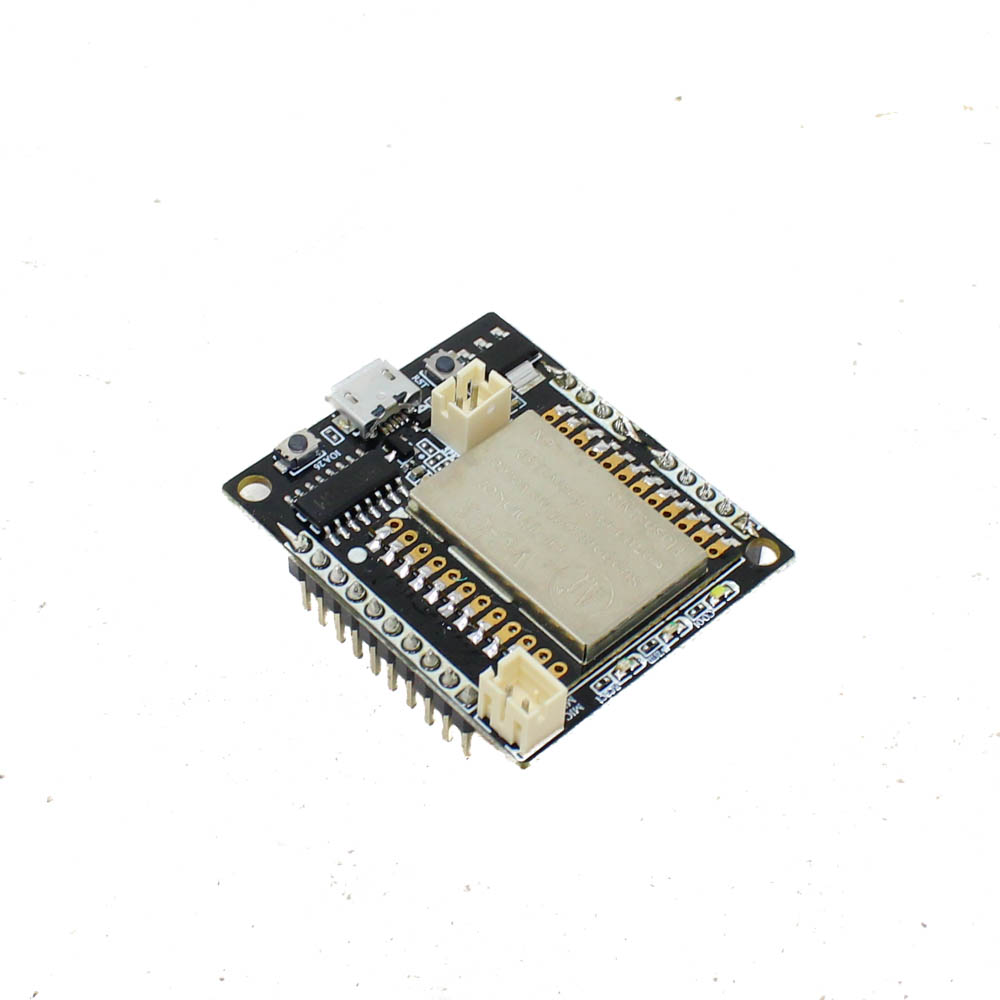

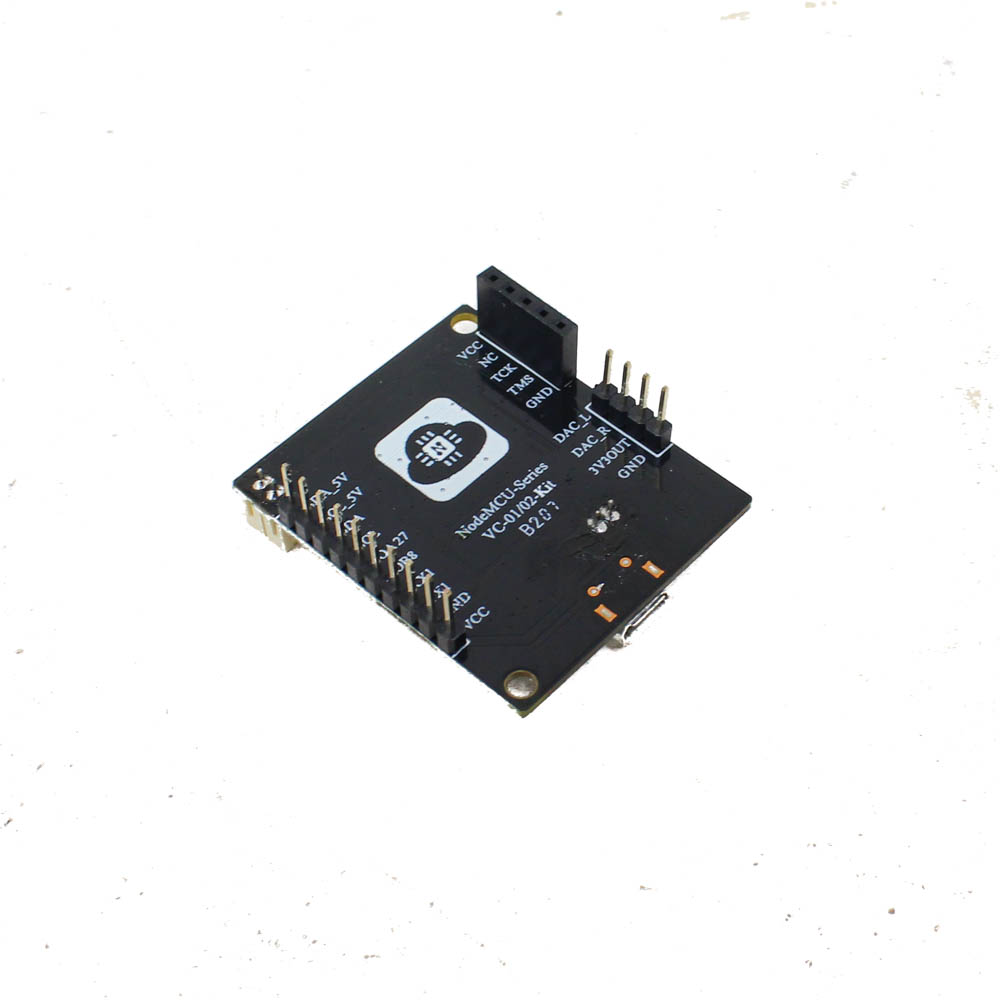

Ai-Thinker VC-01-Kit

The VC-01-Kit is a development board designed for the VC-01 module, and it is a shared the same board with the VC-02-Kit. The development board integrates the CH340C serial port to the USB chip, providing a basic debugging interface and USB upgrade interface, the design of a wake-up light and cold and cooling lamp, provides status indication and control instructions, and easy to debug the simple control
function. VC-01 is a low-cost pure offline speech recognition module developed by Shenzhen
Ai-Thinker Technology Co., Ltd. The module uses the voice chip US516P6 launched by Unisound, and continuously optimizes and innovates algorithms in speech recognition technology. The offline recognition algorithm and chip architecture are deeply integrated to provide customers with ultra-low-cost offline speech recognition solutions. It can be widely and quickly applied to smart homes, all kinds of smart small household appliances, 86 boxes, toys, lamps, and other products that need voice control. The US516P6 chip uses a 32-bit RSIC architecture core and incorporates a DSP instruction set
specifically for signal processing and speech recognition, an FPU arithmetic unit that supports floating-point operations, and an FFT accelerator. VC-01 supports offline identification of 150 local instructions, an RTOS lightweight system, rich peripheral interfaces, and simple and friendly custom tools.

Feature:

1. 32bit RISC core, running at 240MHz
2. Support DSP instruction set and FPU floating point operation unit
3. FFT Accelerator: Support up to 1024-point complex FFT/IFFT operations, or 2048-point
   real FFT/IFFT operations
4. Unisound customized speech algorithm operator

Specification:

1. Model: VC-01-Kit
2. Working temperature: -40 ℃ ~ 85 ℃
3. Storage environment: -40 ℃ ~ 125 ℃ , < 90%RH
4.  Supply voltage: 5V,
5. Current: greater than 500mA
6. Interfaces: UART/I2C/PWM/DAC/GPIO
7. IO: 5 GPIOs
8. UART rate UART1 default 115200 bps, UART0(IOB8) default 57600
9. Built-in 242KB high-speed SRAM
10. Flash: 2MB (built-in)
11. Package: DIP-19（2.54 spatial standard pin header）
12. Size: 42.2 x 35.6(±0.2)mm

Packages Includes:

1 x  Ai-Thinker VC-01-Kit
