Arducam 12MP IMX477 Pan Tilt Zoom(PTZ) IR-Cut Switchable Camera for Raspberry Pi 4/3B+/3 and Jetson Nano

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.

Useful links:

1. To use this camera on Raspberry Pi, please follow this tutorial for hardware and software setup.

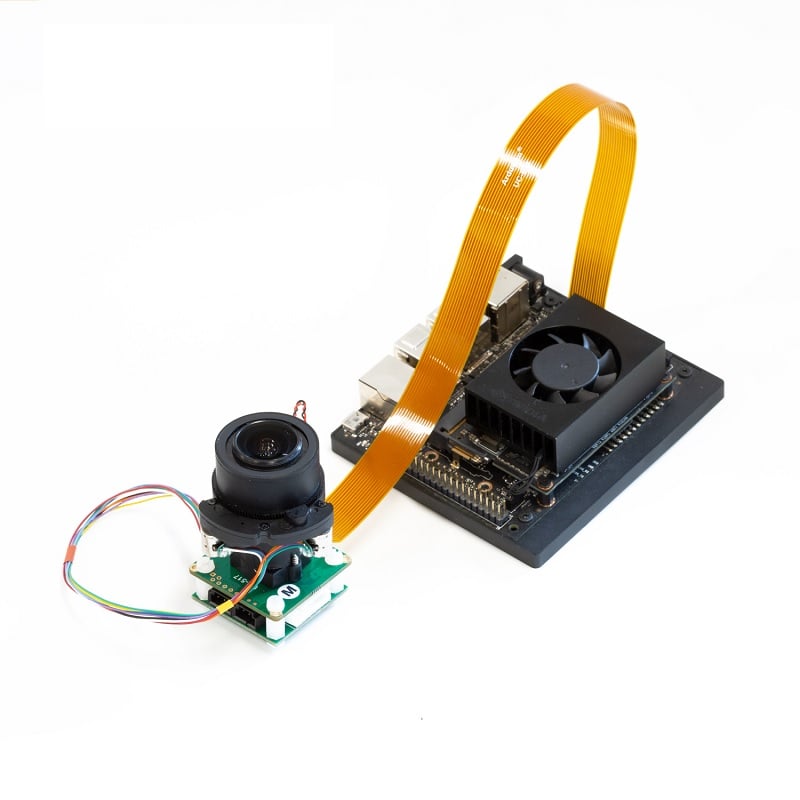

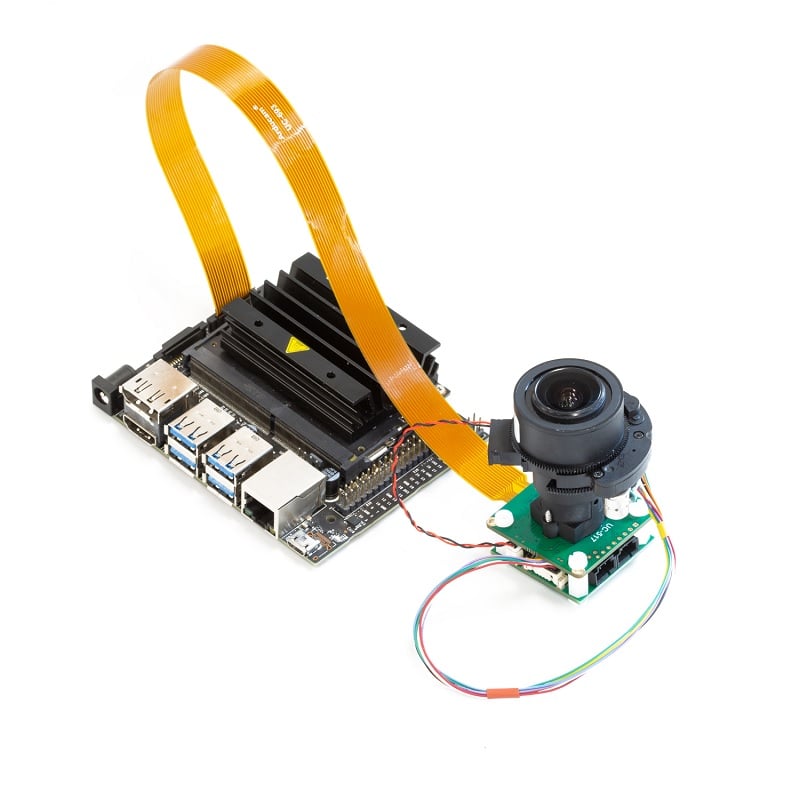

2. To use this camera on Jetson Nano, please follow this tutorial for hardware and software setup.

Application:

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.

Features:

1. Shutter Type: Rolling Shutter
2. Color Type: Color
3. Interface: MIPI
4. Platform Support: Raspberry Pi/Jetson Nano/Xavier NX
5. PTZ Controller Board Connector Part Number: S6B-XH-A-1

Specifications:

1. Sensor: IMX477
2. Pixel Size: 1.55 µm x 1.55 µm
3. Resolution: 4056(H) x 3040(V) 12.3MP
4. Optical Size: 1/2.3″
5. Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
6. Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
7. IR sensitivity: Optional with additional Motorized IR-Cut filter
8. Focus: Front group – focus, Back group – Zoom
9. Field of View: 96° – 33° (Horizontal)
10. Focal length: 4.38-10.71mm±5%

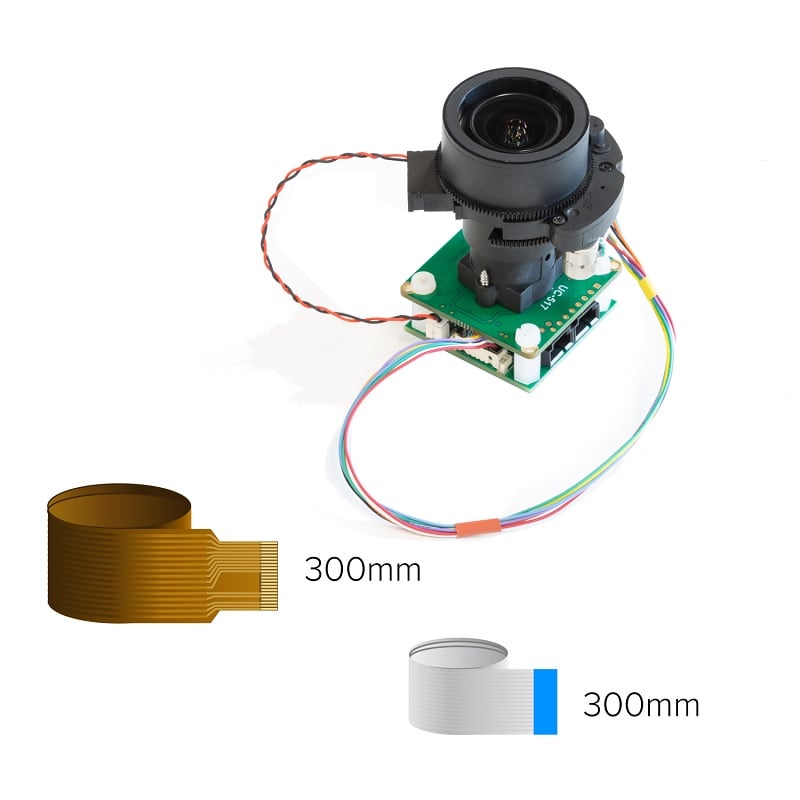

Package Includes:

1 x Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board

1 x 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)

1 x 22-Pin Ribbon Cable (11.8 in/30 cm)

1 x XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)

4 x Plastic Standoffs for the Base
