  9. AWAGO A3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler DIP
AWAGO A3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler DIP
🔍 Zoom

AWAGO A3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler DIP

SKU: RZ24340214 Category: General
₹ 103.50
Out of Stock

Buy AWAGO A3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler DIP online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 101.43
11 – 30 3% ₹ 100.40
31 – 50 4% ₹ 99.36
51 – 100 5% ₹ 98.33

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Category General
Subcategory General
SKU RZ24340214

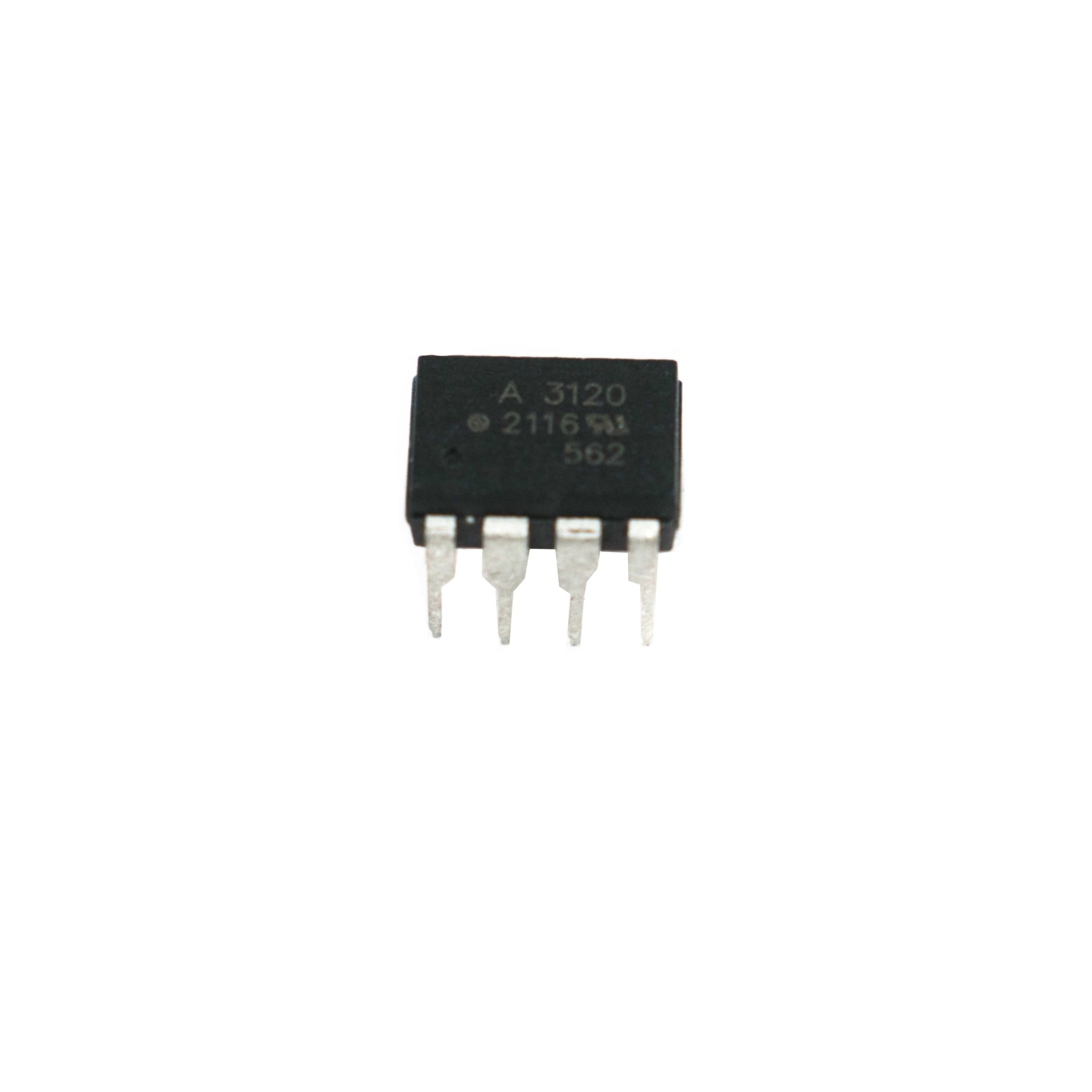

A3120 is an IGBT gate drive optocoupler with 2.5-ampere output. It has a GaASP LED on board that is optically coupled to an integrated circuit with a power output stage. These optocouplers are perfect for driving high-power IGBTs and MOSFETs in inverter motor control applications. The output stage's high operating voltage range supplies the drive voltages required by gate-controlled devices. These optocouplers' voltage and current outputs make them excellent for directly driving IGBTs with ratings of up to 1200 V/100 A. The A3120 Gate Driver can be utilized to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.

Features:

  • Under Voltage Lock-Out Protection (UVLO) with hysteresis
  • Wide operating VCC range: 15 to 30 Volts
  • 0.5 V maximum low-level output voltage (VOL) Eliminates the need for a negative gate drive.

Applications:

  • IGBT/MOSFET gate drive
  • AC/Brushless DC motor drives
  • Industrial inverters
  • Switch-mode power supplies

A3120 Pinout

Specifications:
Maximum peak output current  2.5 A
Minimum peak output current  2.0 A
Minimum Common Mode Rejection (CMR) at VCM=1500 V  25 kV/μs
Maximum switching speed  500 ns
Industrial temperature range  –40 °C to 100 °C
Icc (maximum supply current)  5 mA
Package  DIP
Country of Origin China
