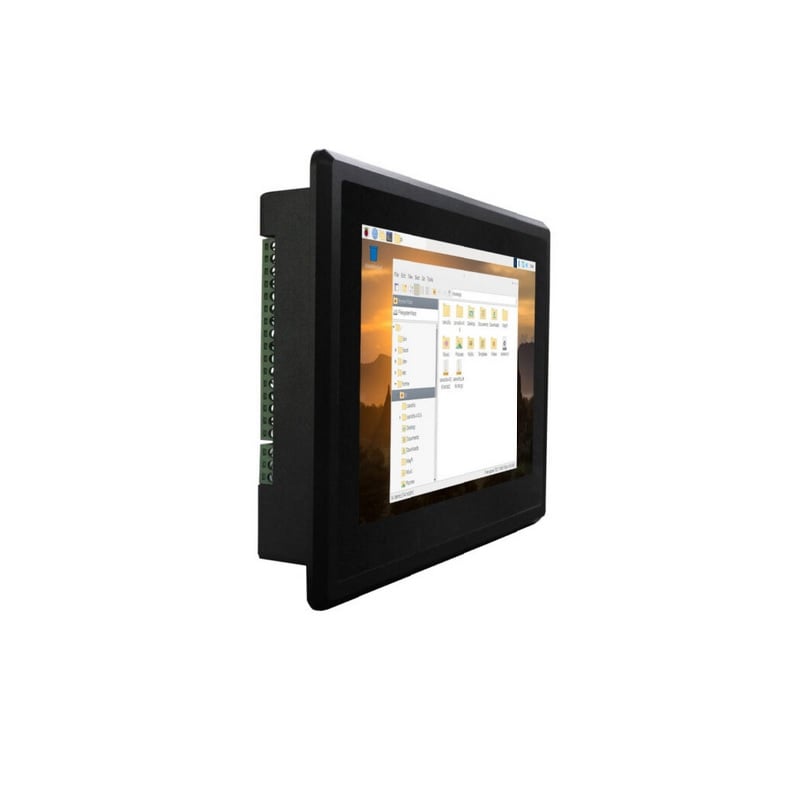

Chipsee PPC-CM4-70 compatible Industrial embedded Raspberry Pi 7 Inch PC with Case for Compute Module 4

The PPC-CM4-70 (CS10600RA4070P) is an industrial computer for the Raspberry Pi Compute Module 4. Available in panel form factor, the Industrial Pi features a 7-inch IPS display (1024×600 pixels and 500 nits of brightness) with a 5-point capacitive touch panel, RS232 and RS485 ports, multiple opto-isolated I/O, Ethernet, double USB, 4G/LTE (optional), ZigBee function, double TF card, on-board audio, RTC with a backup battery, audio I/O, and power management.

You can add a 4G/LTE module to the product, by choosing it in the optional modules section.

Note: This is a Raspberry Pi-embedded SBC with a 7-inch display only. Compute module does not come with this product you have to purchase it separately according to your need

Features:

1. The EPC-CM4-70 is full-featured, rugged, designed, and certified for industrial usage
2. Ready to deploy industrial applications based around the Raspberry Pi Compute Module 4
3. The Compute Module 4 appears in different versions depending on the size of the DDR4 and eMMC.
4. The product has Raspberry Pi CPU, a high-performance Broadcom BCM2711 (RPi 4) application processor.
5. The Industrial Pi has a 5-point capacitive touch screen, with a 1024×600 resolution
6. Offers stable and accurate control over the device and great image clarity

Specifications:

1. Form-factor: Panel
2. CPU: Broadcom BCM2711 (RPi 4)
3. Display Size (inch.): 7.0″
4. Resolution: 1024 X 600
5. Brightness (NIT): 500 NIT
6. Touch Screen: Capacitive
7. FLASH: 16GB
8. External storage: 2 TF card slots. One is designed for Lite version that has no eMMC. The other one is designed for storage expansion.
9. WiFi/BT: Depends on the Compute Module 4 selected.
10. ZIGBEE: Onboard Zigbee module (NOT mounted by default)
11. 4G: Support miniPCIe slot for 4G/LTE module (neither miniPCIe Slot nor 4G LTE module is mounted by default.)
12. Ethernet: 1x Giga LAN
13. Camera: There is a camera connector compatible with the Raspberry Pi Camera connector (the camera is NOT mounted by default).

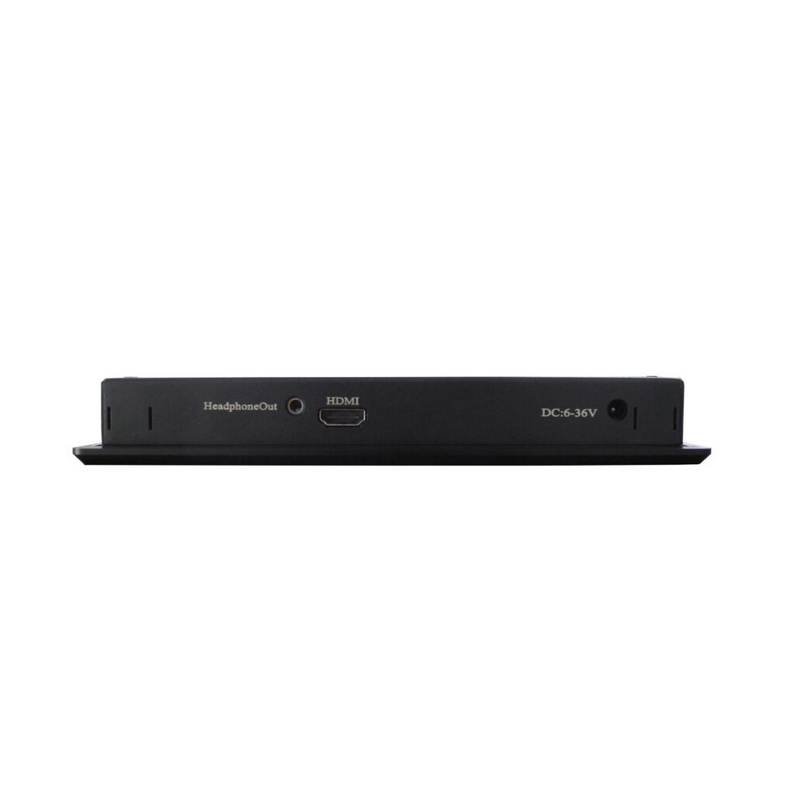

14. Audio: 3.5mm Audio Out Connector, Internal 2W Speaker
15. Buzzer: Yes
16. USB: 1x miniUSB OTG, 2x USB 2.0 HOST
17. RTC: High Accuracy RTC with Lithium Button Coin battery (Lithium Battery not included)
18. GPIO: Opto-Isolated GPIO, 4 Input, 4 Output, can drive up to 500mA current every Channel at most (external power source needed)
19. RS485: 2 Channels at most. The RS485 circuit controls the Input and Output direction automatically, there’s no need to control it from within the software.
20. RS232: 4 Channels at most
21. CAN: 1x CAN
22. OS: Debian
23. Power Input: 6~36V DC
24. Power Consumption: 5W
25. Current at 12V: 420 mA max
26. Working Temperature: 0°C to +60°C
27. Mounting Method: Panel Mounting & VESA
28. Weight 700 g
29. Dimensions: 206 × 135 × 30.1 mm

Packages Includes:

1 x Chipsee PPC-CM4-70 compatible Industrial embedded Raspberry Pi 7 Inch PC with Case for Compute Module 4
