DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter
Buy DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter online, Order today to get instant d
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

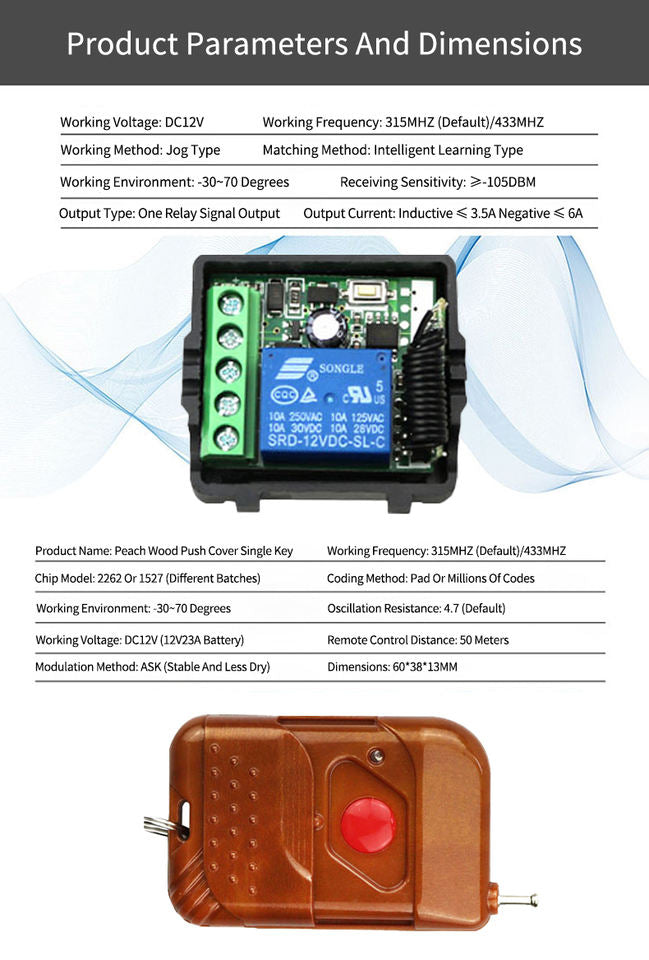

Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)learning code (eV1527/PT2240B) Transmission distance: >1000m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) Transmission rate: <10Kbps Modulation method: ASK (amplitude modulation) . Working temperature: -10℃~+70℃ Size: 85.3*36.4*16.2mm Application areas: Remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products, etc.
Working Mode
Momentary. Toggle .Latched
Momentary
press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Toggle
press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control
Latched
press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
