DC 12V Bluetooth 4, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay
🔍 Zoom

DC 12V Bluetooth 4, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay

SKU: RZ24320472 Category: Switches & Relays
₹ 1,033.85
Out of Stock

Buy DC 12V Bluetooth 4, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay online, Order today to get instant delivery in

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 1,013.17
11 – 30 3% ₹ 1,002.83
31 – 50 4% ₹ 992.50
51 – 100 5% ₹ 982.16

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Subcategory Relay Modules
SKU RZ24320472

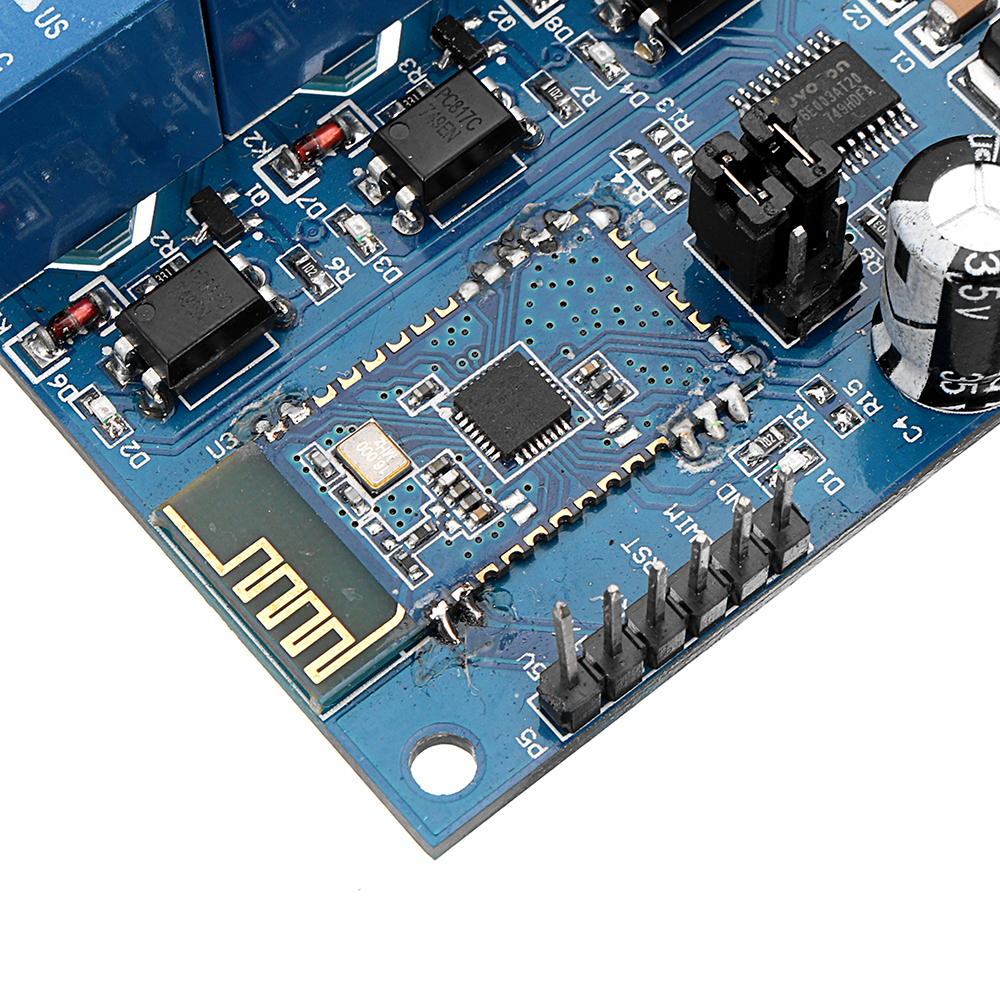

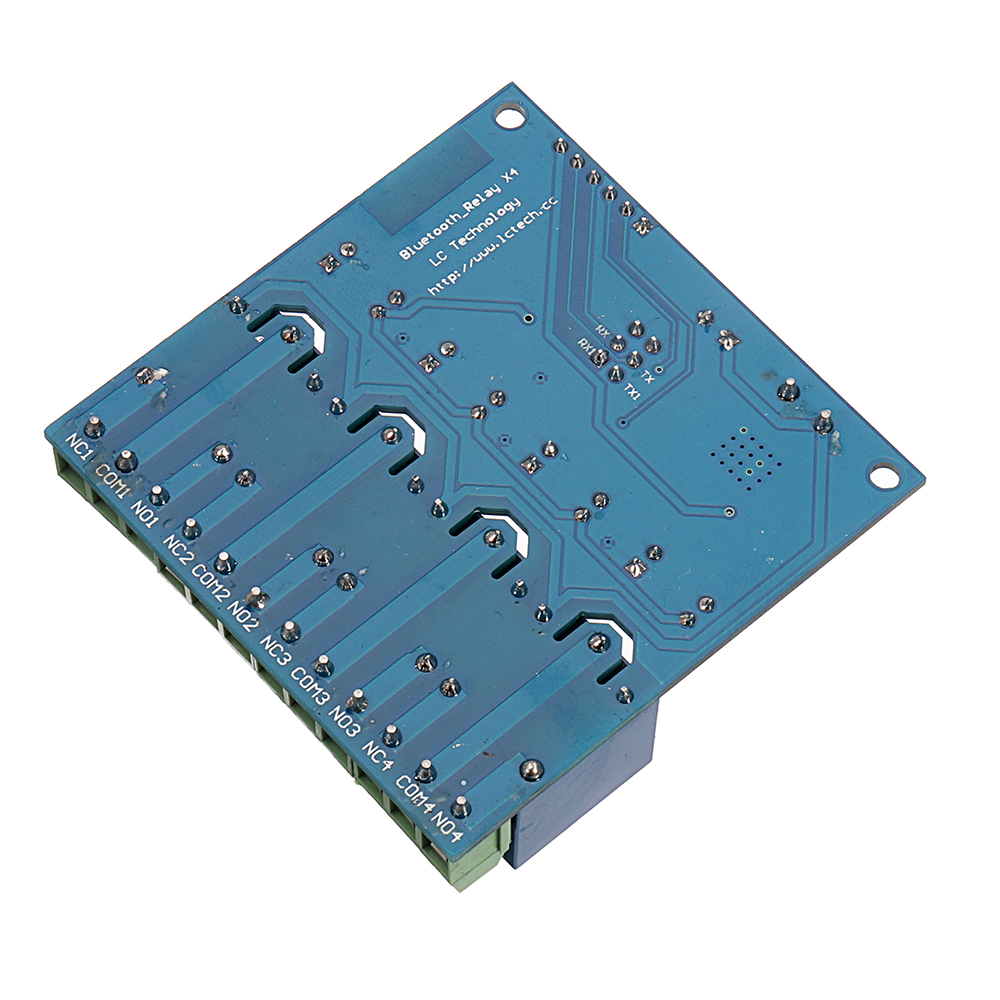

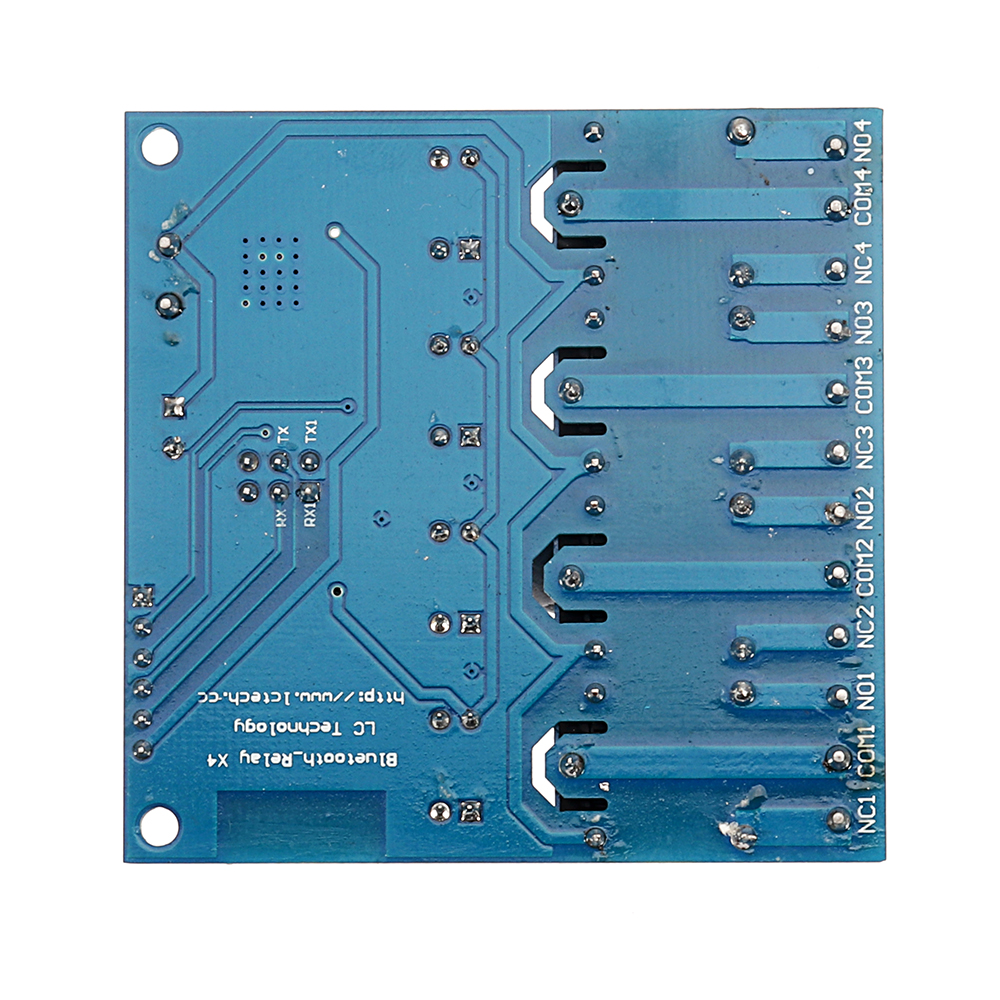

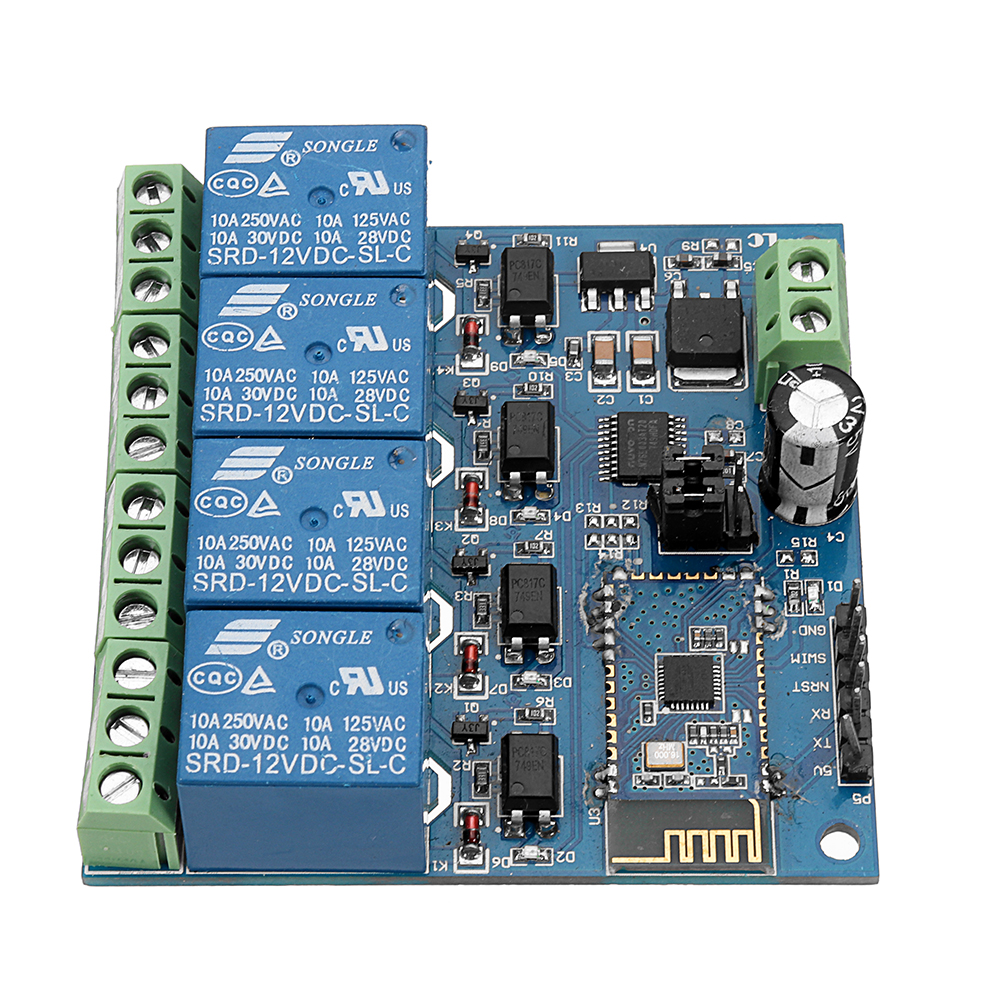

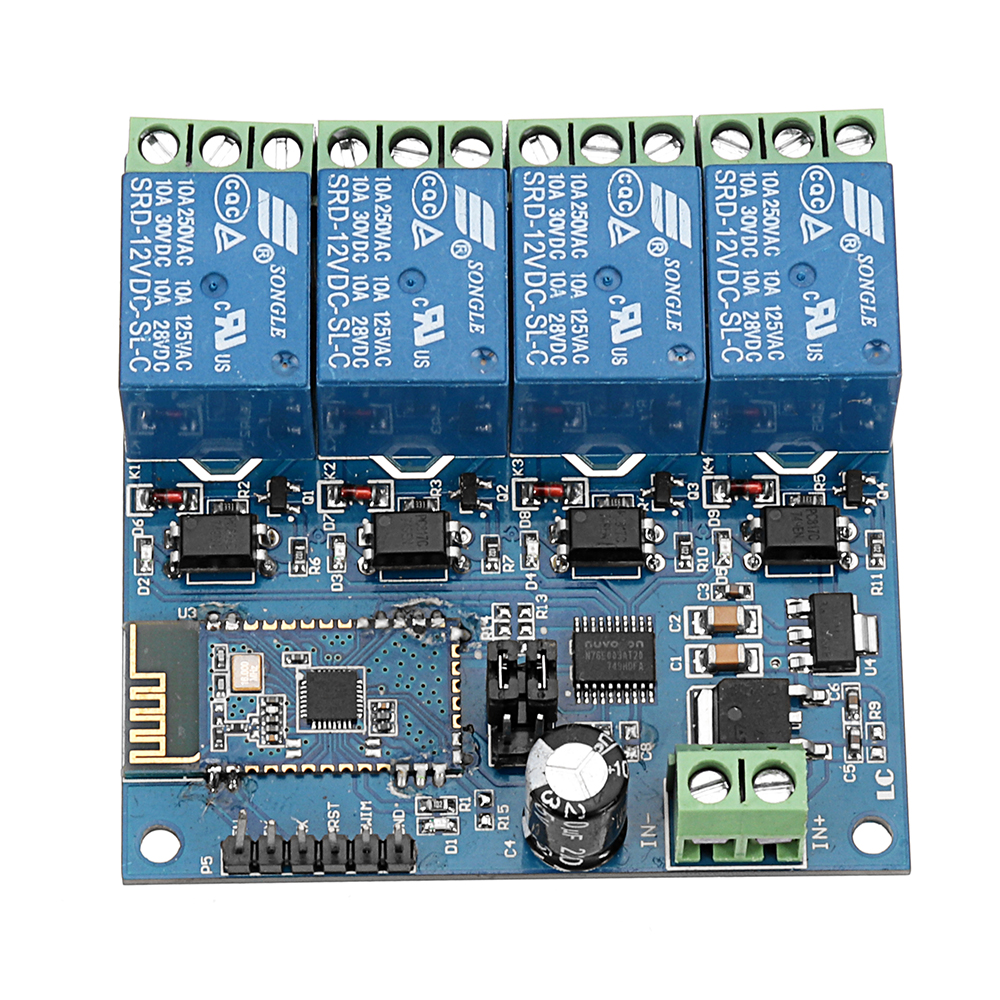

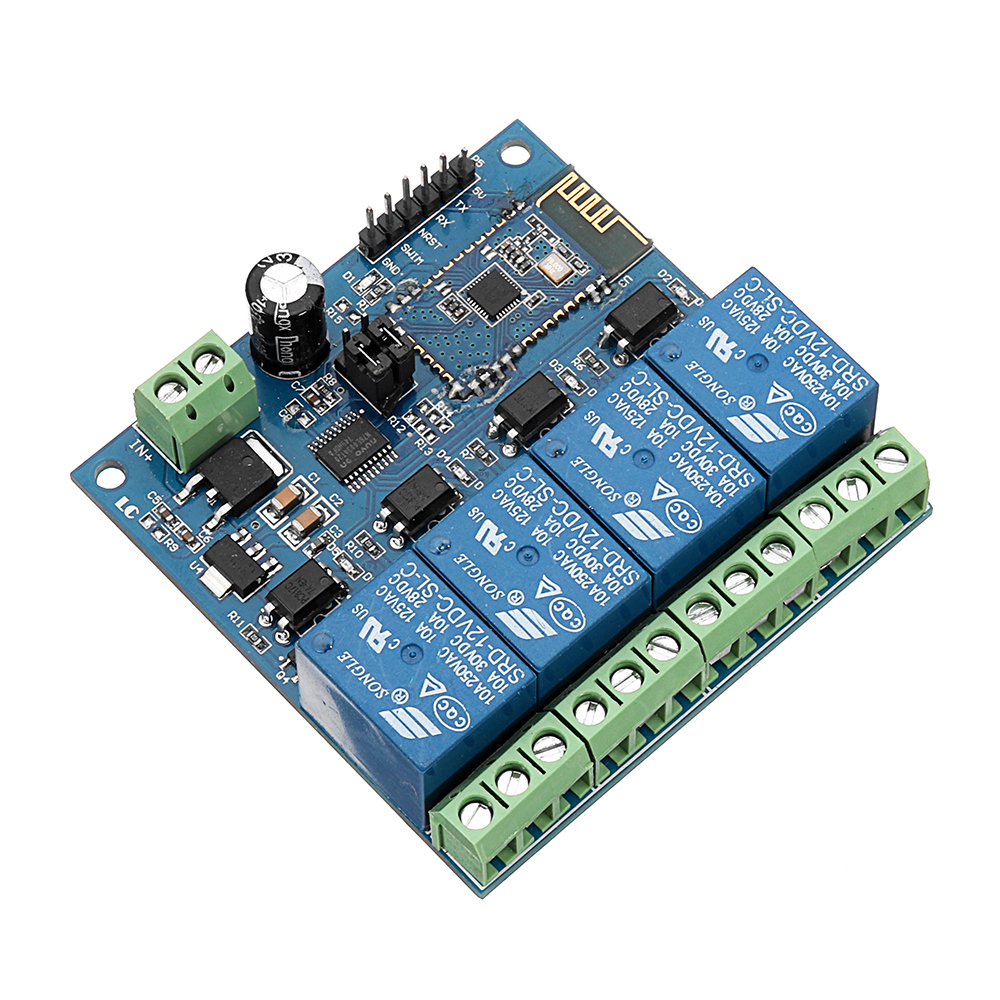

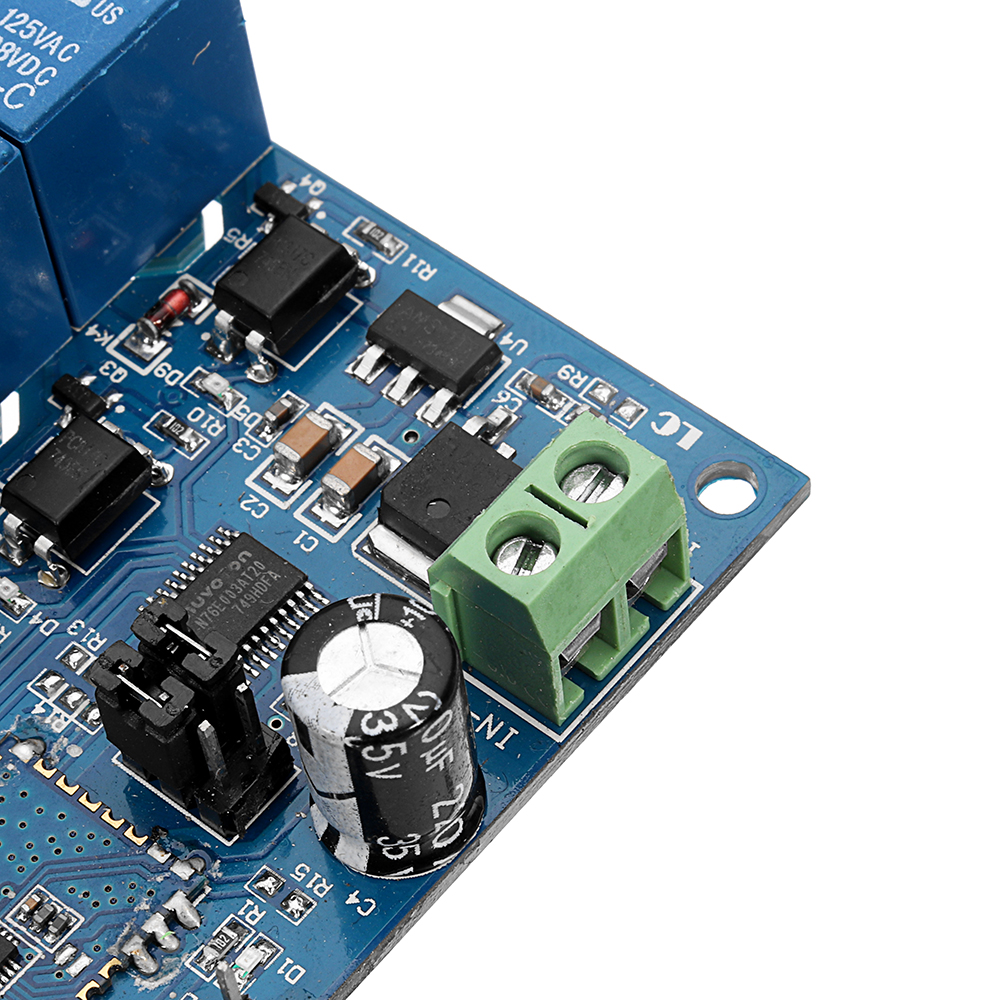

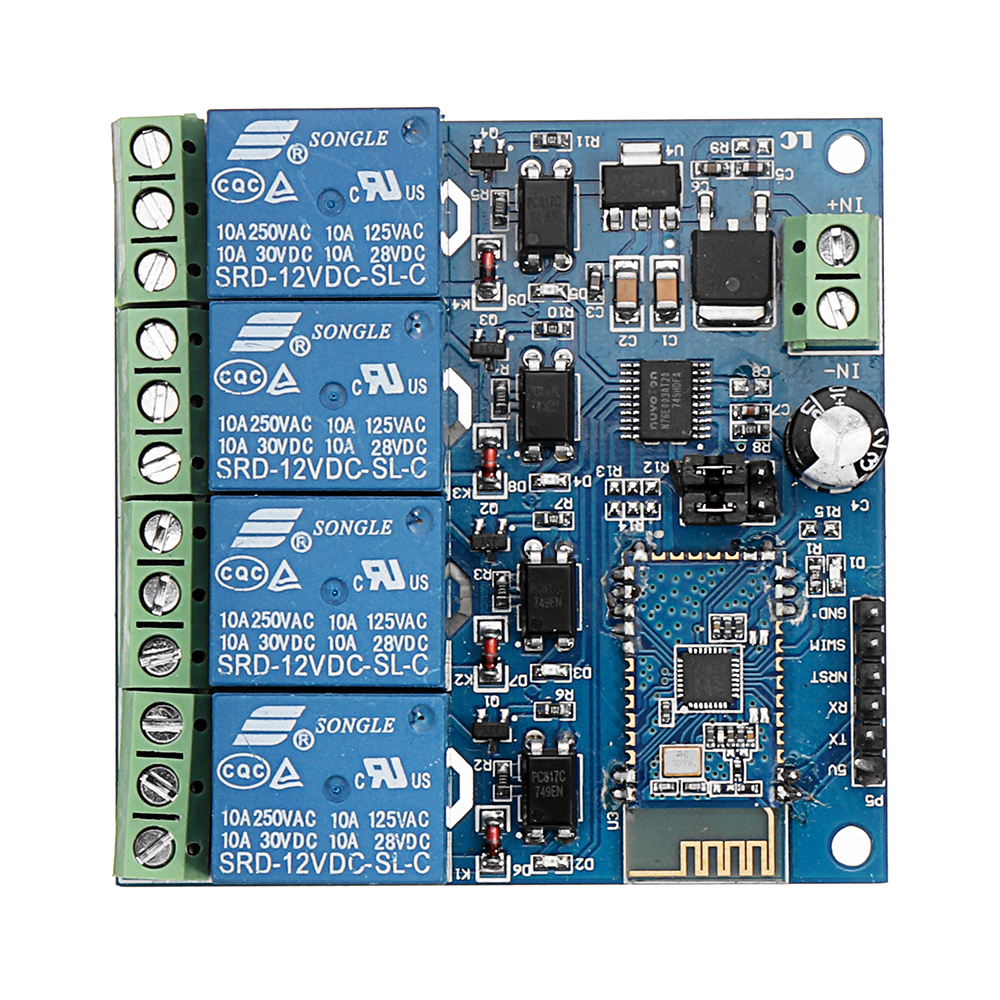

The DC 12V 4 Channel Bluetooth Wireless Control Relay Module contains 4 relay channels that operate on 12VDC to handle the appliances of 230VAC or 30VDC up to the 10A current. The relay module comes with an onboard integrated SPP-C Bluetooth serial slave module, which can be used to control relay switching by sending commands via the mobile phone APP or by your customise Bluetooth remote with very easy to set up.

LED Indications:

LED D1(Blue): Bluetooth state indicator:

  1. D1 blink slowly-Search Module over Bluetooth and wait till pairing
  2. D1 Continue ON means connection established and ready to use

LED D2/D3/D4/D5 (Red): Relay indicator
These LEDs will show the status of Relay ON-OFF individually


Specifications and Features:

  1. Easy to set up and pair with Android Phone
  2. Onboard Bluetooth status indicator and relay indicator
  3. With 4 optocoupler isolation, strong anti-interference ability
  4. Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
  5. Effective control distance(on open area): 10m
  6. Module Operating Voltage: 12VDC
  7. On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
  8. Module with diode effusion protection short response time
  9. Board Dimensions (L x W x H) mm: 63 x 64 x 19
  10. Weight : 60 gm

Package Includes:

1 x DC 12V 4 Channel Bluetooth Wireless Control Relay Module

welcome

welcome

You May Also Like

View all →
VHF201209H5N6ST

Buy VHF201209H5N6ST online, Order today to get instant delivery in all over india.

Notify Me

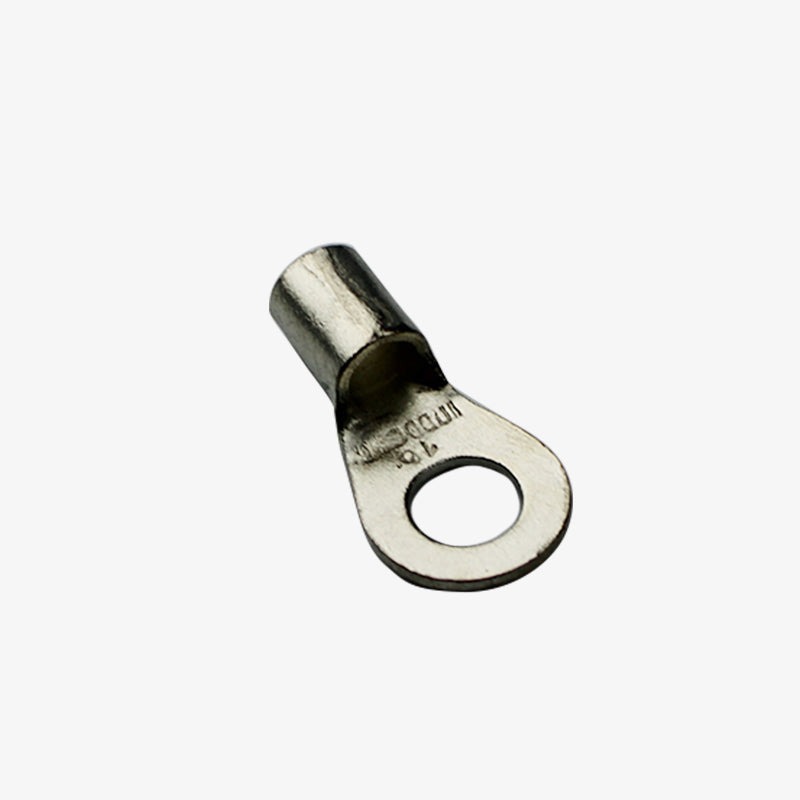

Non-Insulated Ring Terminal / Lugs (16mm)
