DFRobot Fermion: AS7341 11-Channel Visible Light Sensor (Breakout)

[vc_row][vc_column][vc_column_text]DFrobot offers an advanced level of sensors at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through Different types of sensors.

After finding Different types of sensors on market, we at robozar.com have determined that DFrobot is one of the good brands that offer a wide range of sensors at an Appropriate price.

We live in a colorful world, but how much do you really know about color? Your eyes may deceive you, while the sensors don’t lie. This Gravity: AS7341 11-Channel Visible Light Sensor can tell you the truth about color.

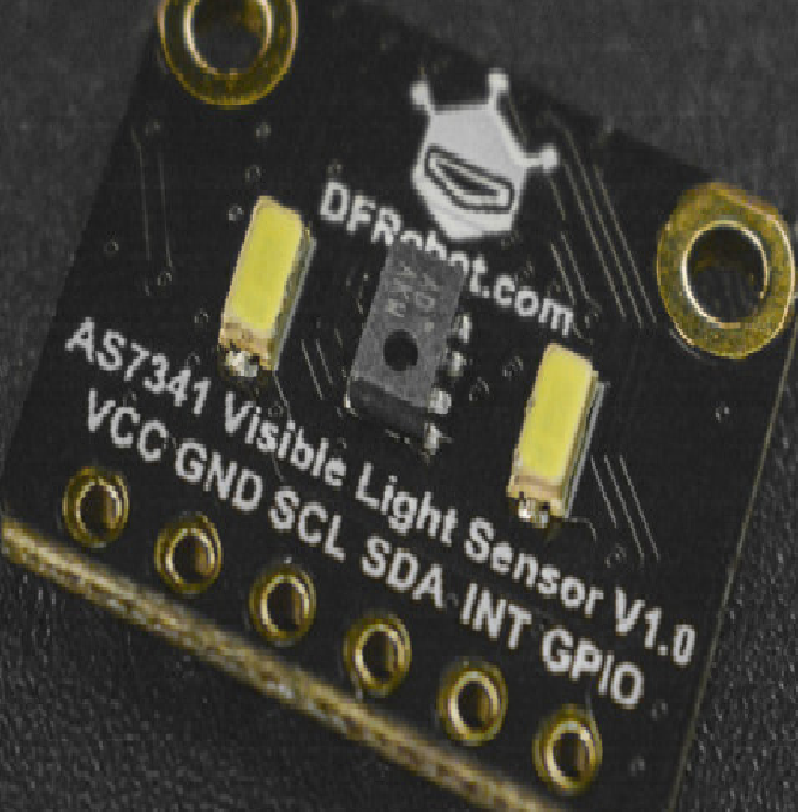

Gravity: AS7341 11-Channel Visible Light Sensor employs the new generation of AS7341 spectral sensor IC launched by the well-known AMS company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also, it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two on-board extra-bright LEDs can supply light in a dark environment.

Applications:

1. High accuracy color detection and matching
2. Color mixing effect detection
3. Lighting color temperature adjustment
4. Lighting atmosphere control
5. Modern plant cultivation

Features:

1. 8 optical channels covering the visible spectral range
2. 50Hz and 60Hz ambient light flicker detection
3. 6 independent 16-bit ADC channels

Specifications:

1. Power Supply: 3.3V~5V
2. Visible Light Detection Range: F1(405-425nm), F2(435-455nm), F3(470-490nm), F4(505-525nm), F5(545-565nm), F6(580-600nm), F7(620-640nm), F8(670-690nm)
3. Operating Current(LED Off): <5mA
4. LED Driving Current: Class 1-20 (4-42mA)
5. I2C Address: 0x39
6. Operating Temperature Range: -30℃~85℃
7. Operating Humidity Range: 5%RH~85%RH
8. Dimension: 22*20mm/0.87*0.79”

Package Includes:

1 x Gravity: AS7341 Visible Light Sensor

1 x 6 pin male header[/vc_column_text][/vc_column][/vc_row]
