DFRobot Fermion: STS35 High Accuracy Digital Temperature Sensor (Breakout)

The STS35 temperature sensor from Sensirion gives a fully calibrated, linearized, and supply-voltage-compensated digital output and has an outstanding accuracy of up to +/–0.1°C.

It provides an operating temperature range of -40~125℃ and up to 1MHz I2C communication rate. Besides, the sensor can heat up itself to dehumidify the chip, which means it can function properly in a certain level of humidity.

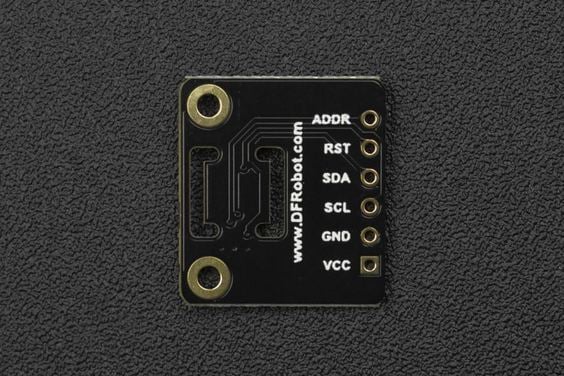

Pinout

Features:

1. Factory calibrated, accurate digital output
2. High accuracy, ±0.1℃ temperature error
3. Fast startup time, 0.5ms
4. High reliability, long-term stability

Applications:

1. Grain bin temperature monitoring
2. Precise temperature controlling in Lab
3. Ambient temperature detection in greenhouse
4. Temperature measuring in the environment with changeable humidity

Specifications:

1. Operating Voltage: 2.15～5.5V DC
2. Heating Power Consumption: 3.6~33mW
3. Output Signal: I2C
4. Measuring Range: -40~125℃
5. Accuracy: ±0.1℃
6. Resolution: 0.01℃
7. Preheat: ≤1.5ms (Typical, 0.5ms)
8. Response Time: >2s
9. Operating Temperature: -40～125℃
10. Size: 20×17.5x2mm/0.79×0.69×0.08”
11. Mounting Hole Size: M2(2mm); Pitch 15mm

Package Includes:

1 x DFRobot Fermion: STS35 High Accuracy Digital Temperature Sensor (Breakout)
