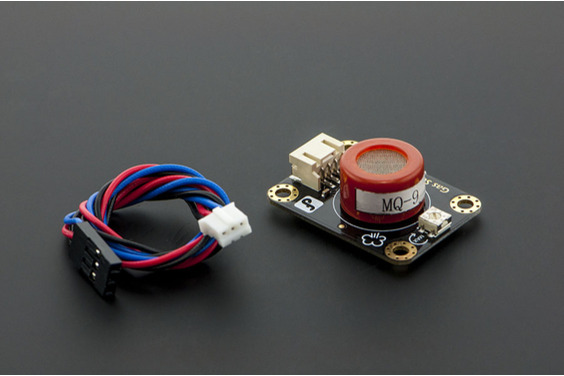

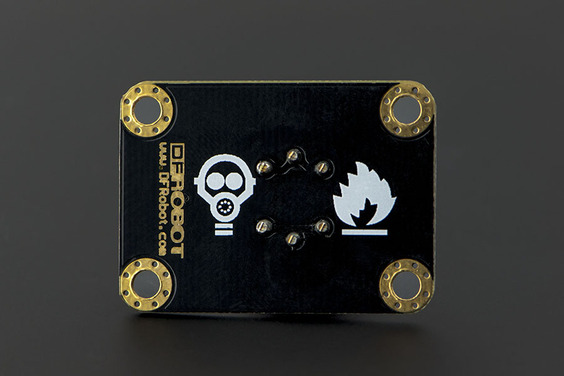

DFRobot Gravity Analog CO/Combustible Gas Sensor (MQ9) For Arduino

This is an Arduino CO/Combustible Gas sensor. It uses MQ-9 to detect Carbon Monoxide. The sensor can be used to detect different gases containing CO and combustible gases, it is low cost and suitable for a variety of applications. The core sensing material of the MQ-9 gas sensor is SnO2, which has lower conductivity in clean air. It makes detection by cycling high and low temperatures and detects CO when low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. When temperature rises (heated by 5.0V), it detects Methane, Propane, combustible gas, etc, and cleans the other gases adsorbed under low temperature.

1. Domestic gas leakage detector
2. Industrial gas detector
3. Portable gas detector

Features:

1. Good sensitivity to CO/Combustible gas
2. High sensitivity to Methane, Propane and CO
3.  Long life and low cost
4.  Simple drive circuit

Specifications:

1. Power supply needs: 5V
2. Interface type: Analog
3. Loop Voltage: ≤10V DC
4. Heater Resistance: 31Ω±3Ω（Room Tem.）
5. Heater consumption: ≤350mW
6. Sensing Resistance: 2KΩ-20KΩ(in 100ppm CO )
7. Sensitivity: Rs(in air)/Rs(100ppm CO)≥5
8. Sensor Type: Semiconductor
9. Concentration:10-1000ppm CO ,00-10000ppm combustible gas
10. Good sensitivity to CO/Combustible gas
11. Slope: α ≤0.6(R300ppm/R100ppm CO)
12. Tem. Humidity: 20℃±2℃; 65%±5%RH
13. High sensitivity to Methane, Propane and CO
14. Size: 36.4×26.6mm(1.43″x1.05″)

Package Includes:

1 x DFRobot Gravity Analog CO/Combustible Gas Sensor (MQ9) For Arduino
