DFRobot Gravity: Analog Heart Rate Monitor Sensor (ECG) For Arduino

The DFRobot Heart Rate Monitor Sensor is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG and output as an analog reading. An ECG signal can be extremely noisy so we have included an AD8232 chip which will generate a clear signal from the PR and QT Intervals. Using the Arduino IDE “Serial Plotter” feature,  you are also able to view plotted ECG output on a PC easing the difficulty of using this sensor,  a gravity Interface is adapted to allow plug&play.

The IO expansion shield is the best match for this sound sensor connecting to your Arduino. As this sensor can work at 3.3V which makes it compatible with raspberry pie, intel Edison, joule, and curie.

Features:

1. ECG method, accurate and stable

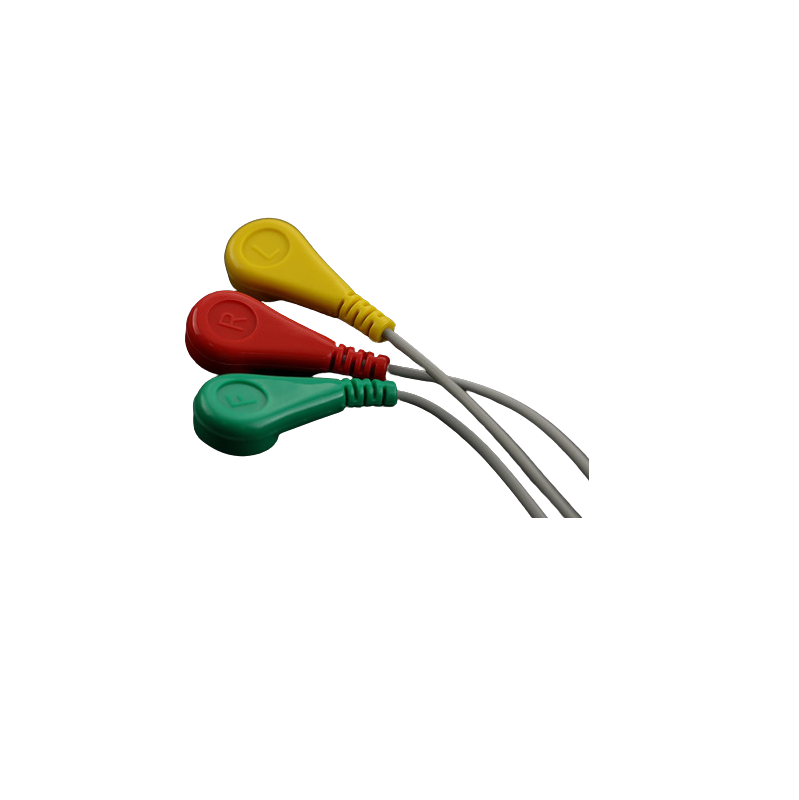

2. Three electrodes
3. 3.3.3V/5V compatible
4. AD8232 chip which will generate a clear signal from the PR and QT Intervals

Package Includes:

1 x DFRobot Gravity: Analog Heart Rate Monitor Sensor
