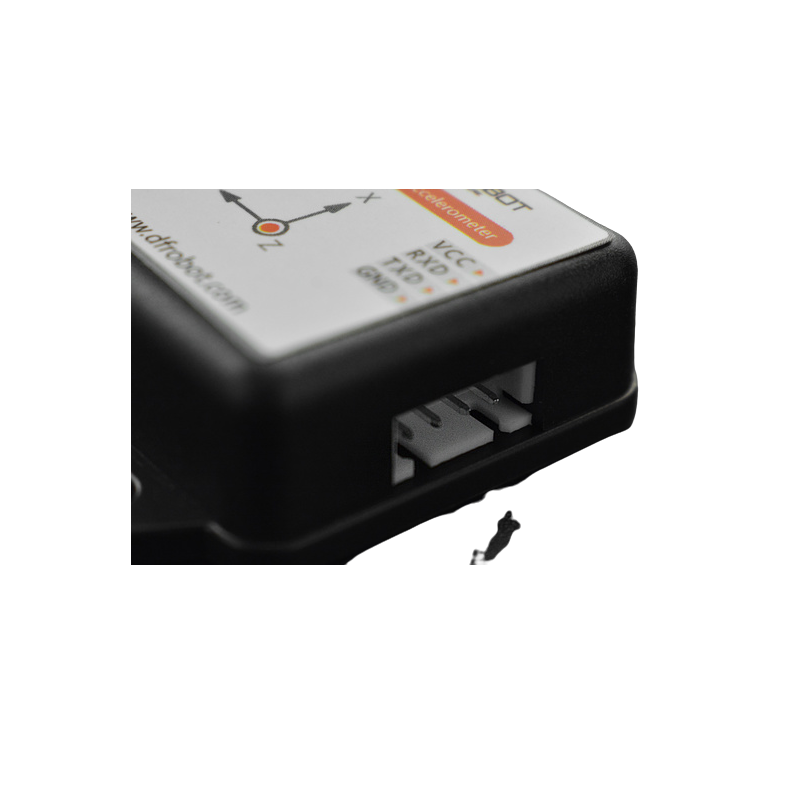

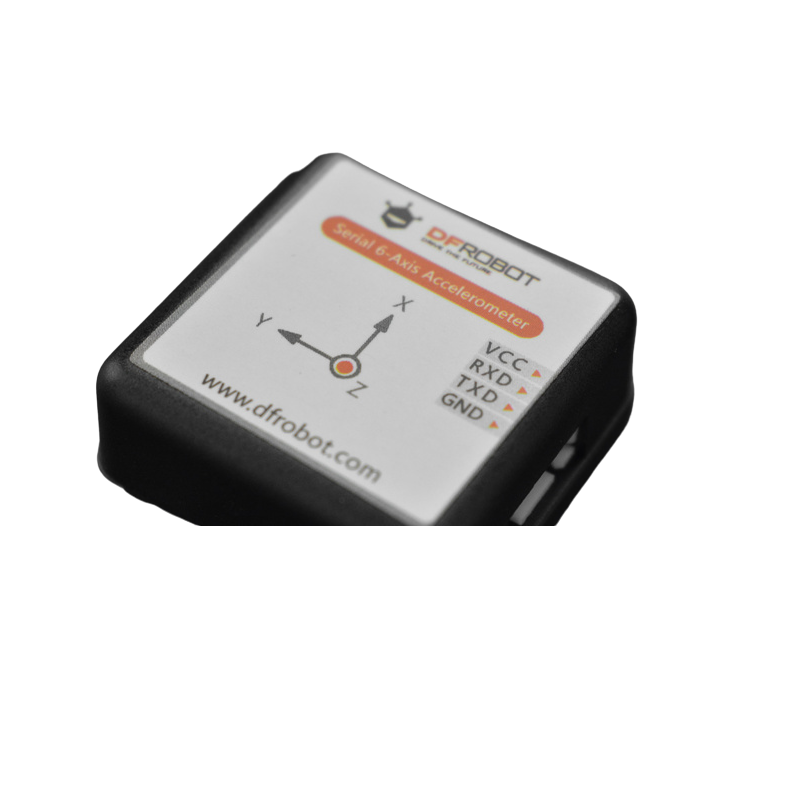

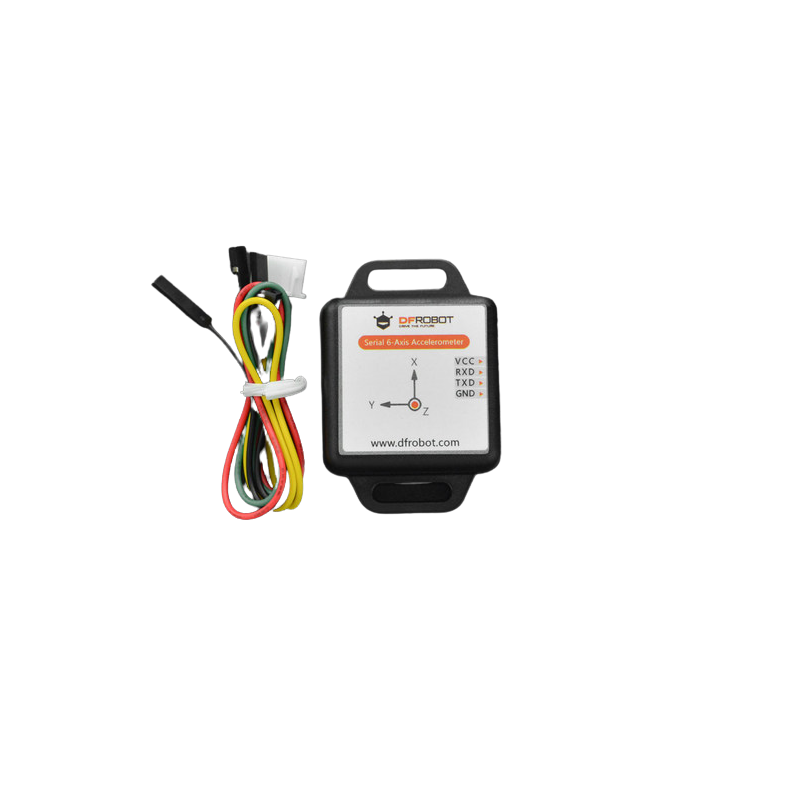

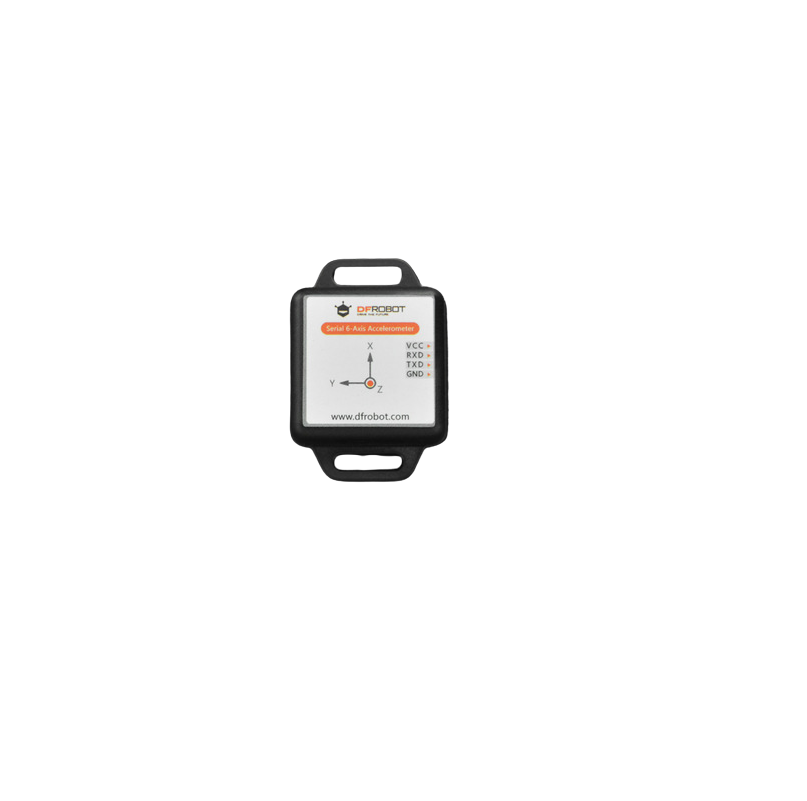

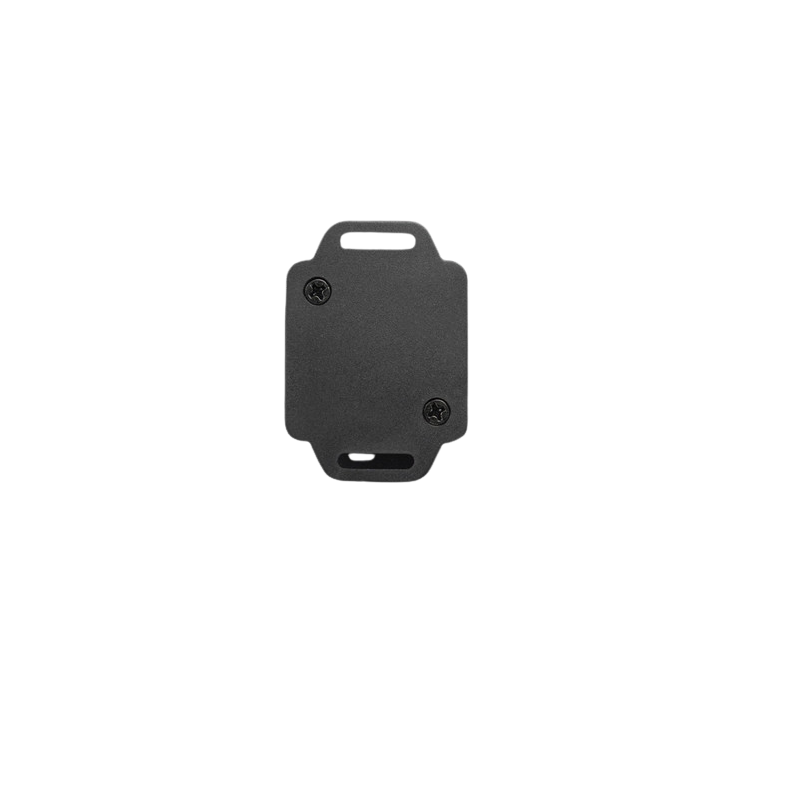

DFRobot Serial 6-Axis Accelerometer for Arduino

This module integrates high-precision gyroscopes, an accelerometer, the microprocessor of high-performance and advanced dynamics solves and Kalman filter algorithms that aim to quickly solve the current real-time movement of the module attitude. The use of advanced digital filtering technology can effectively reduce measurement noise and improve accuracy.

The module comes with a built-in gesture solver that can get an accurate attitude in a dynamic environment combined with a dynamic Kalman filter algorithm. Its static measurement accuracy is up to 0.05 degree(dynamic 0.1) with high stability, which could bring better performance even than some professional Inclinometers!

Features:

1. There is a voltage stabilizer circuit inside the module
2. Its pin level is compatible with 3.3/5V embedded systems
3. It employs TTL interface for connection
4.  the module supports adjustable 2400bps~921600bps baud rate and 0.1Hz~200Hz data output

Specifications:

1. Voltage: 3.3V~5V
2. Current: <40mA
3. Size: 51.3*36*10mm
4.  Acceleration: 3D
5. Angular velocity: 3D
6. Attitude angle: 3D
7. Range: acceleration: ±2/4/8/16g(optional); angular velocity: ±250/500/1000/2000°/s (Optional); attitude angle: ±180°

Package Includes:

1 x DFRobot Serial 6-Axis Accelerometer for Arduino
