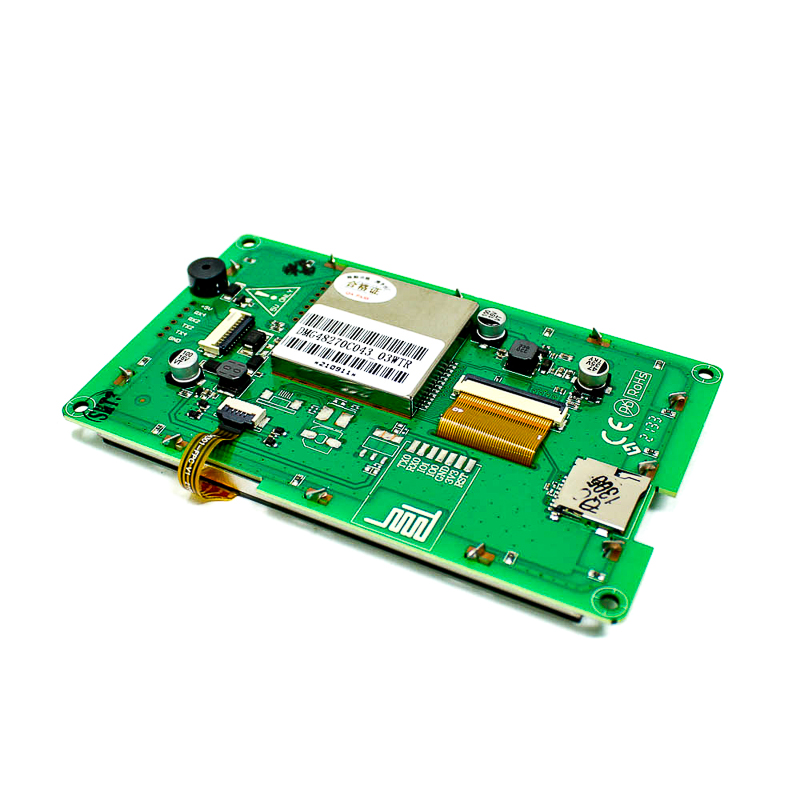

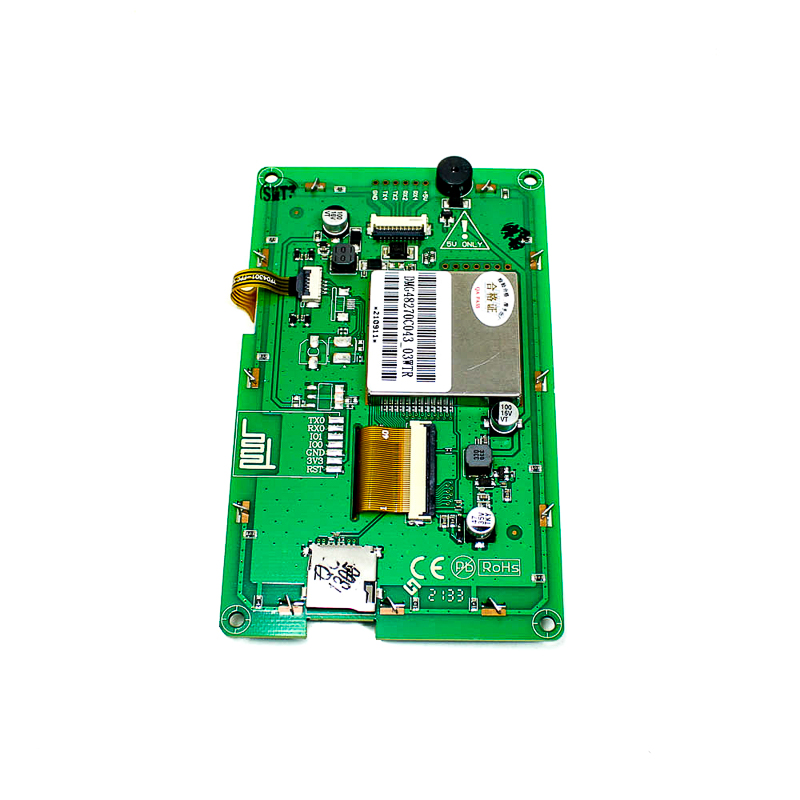

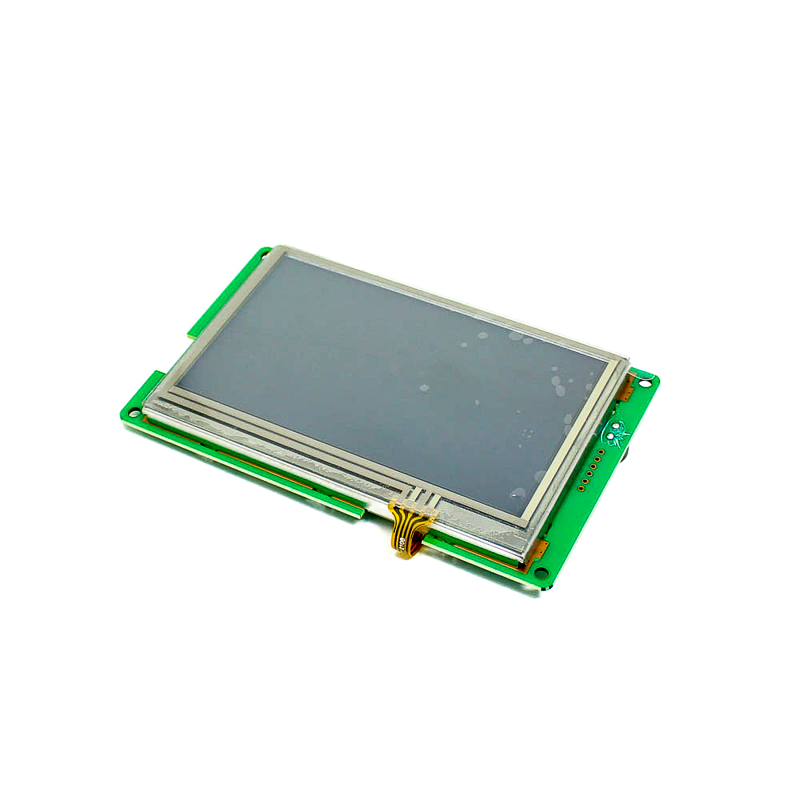

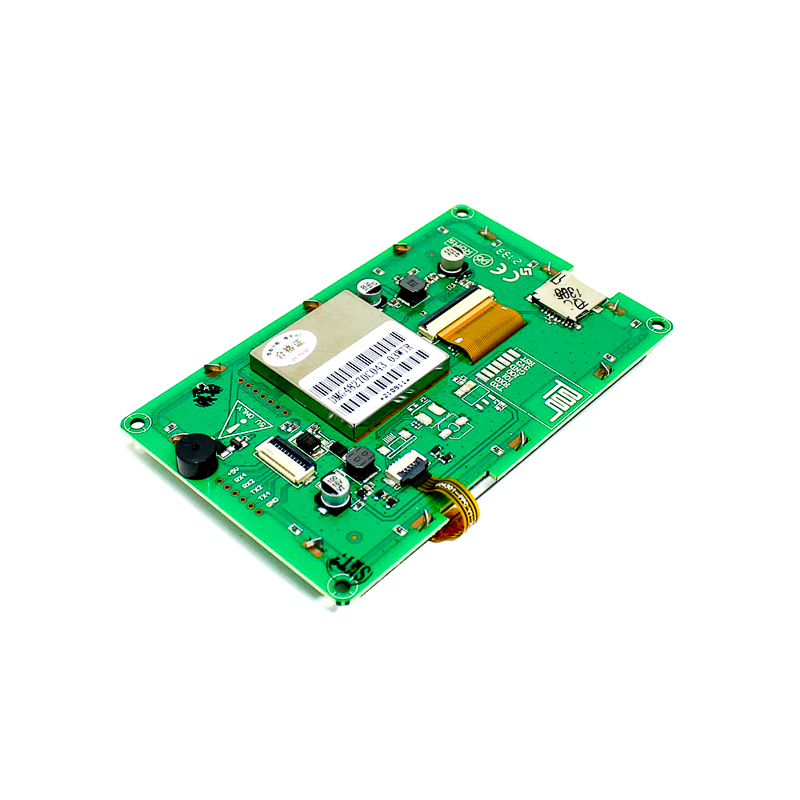

DWIN HMI 4.3 Inch TN LCD Resistive Touch Display

This DWIN 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI SUch as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it is supported with RGB colour and 16.7M colours. It is also equipped with 200nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Features:

1. UI Version: TA / DGUS II ( DGUS II pre-installed)
2. Powerful data management
3. Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
4. Capacitance touch panel, Buzzer, WIFI module interface
5. Powerful data management
6. Built-in DGUS II intelligent software

Display:

1. Size -4.3″
2. Display Format -480×800 Pixel Matrix
3. Brightness -200nit
4. Active Area – 56.16mm (W) ×93.6mm (H)
5. Colour – 24-bit colour 8R8G8B
6. Backlight – LED

Interface:

• UART2 : N81 , 3.3V TTL/CMOS
• UART4 : Optional N81/E81/O81/N82 four mode , 3.3V TTL/CMOS

Package Includes :

1 x 4.3″ SMART SCREEN
