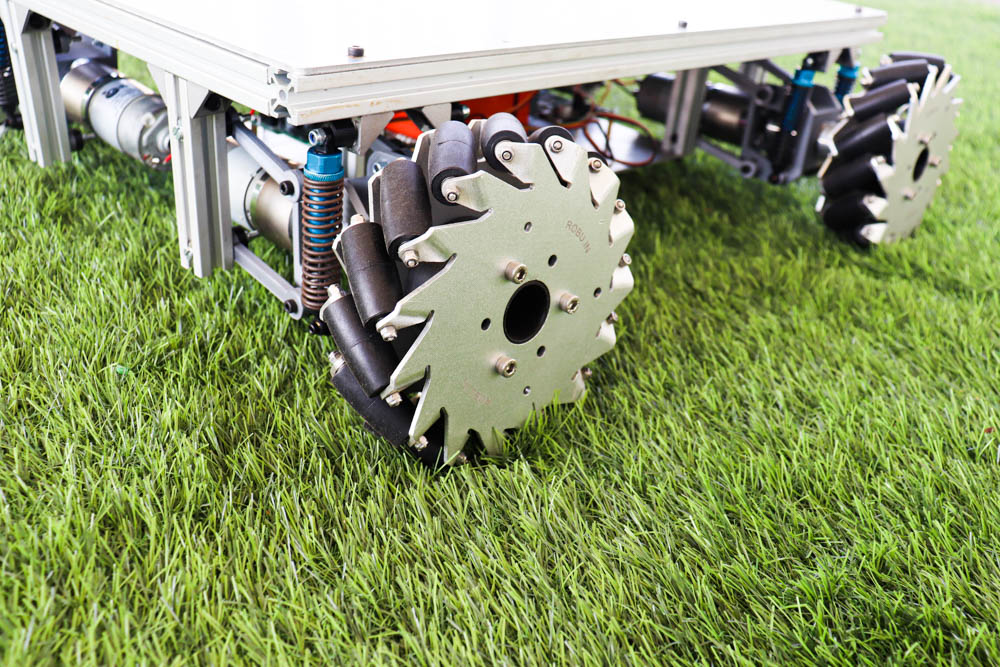

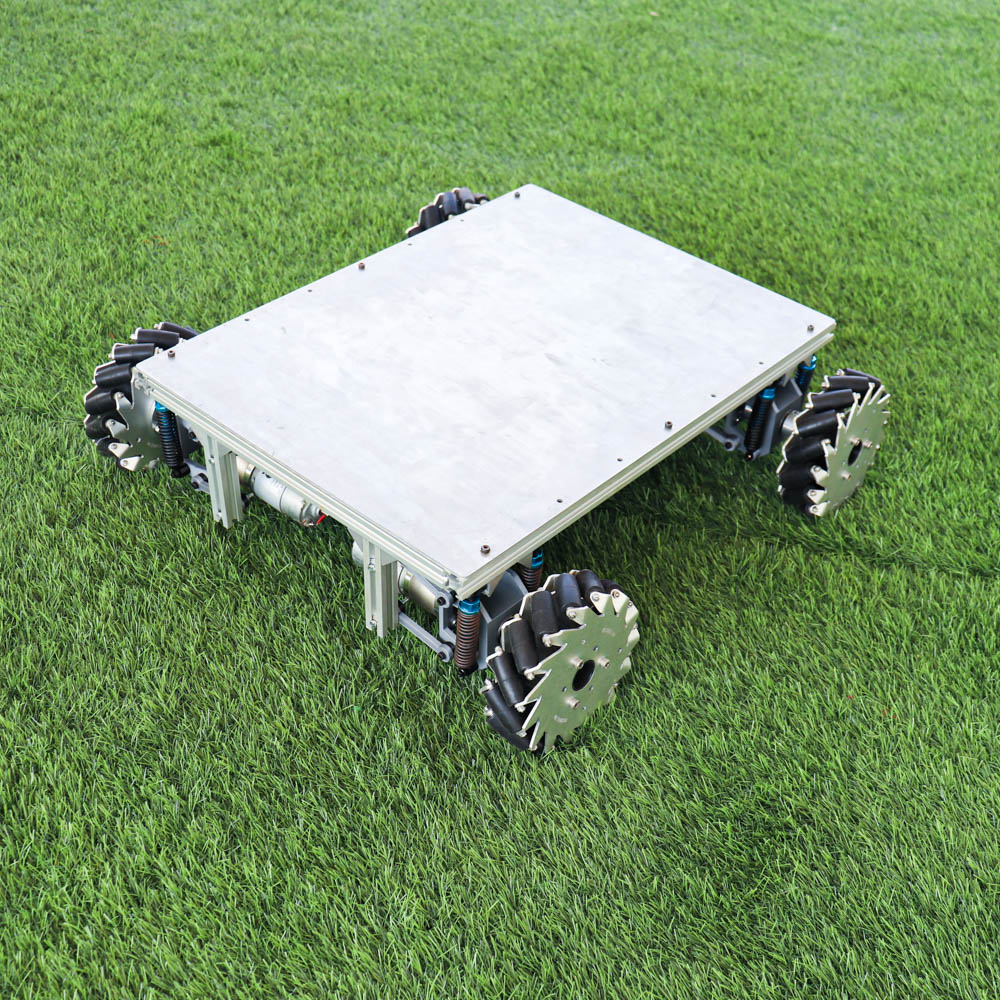

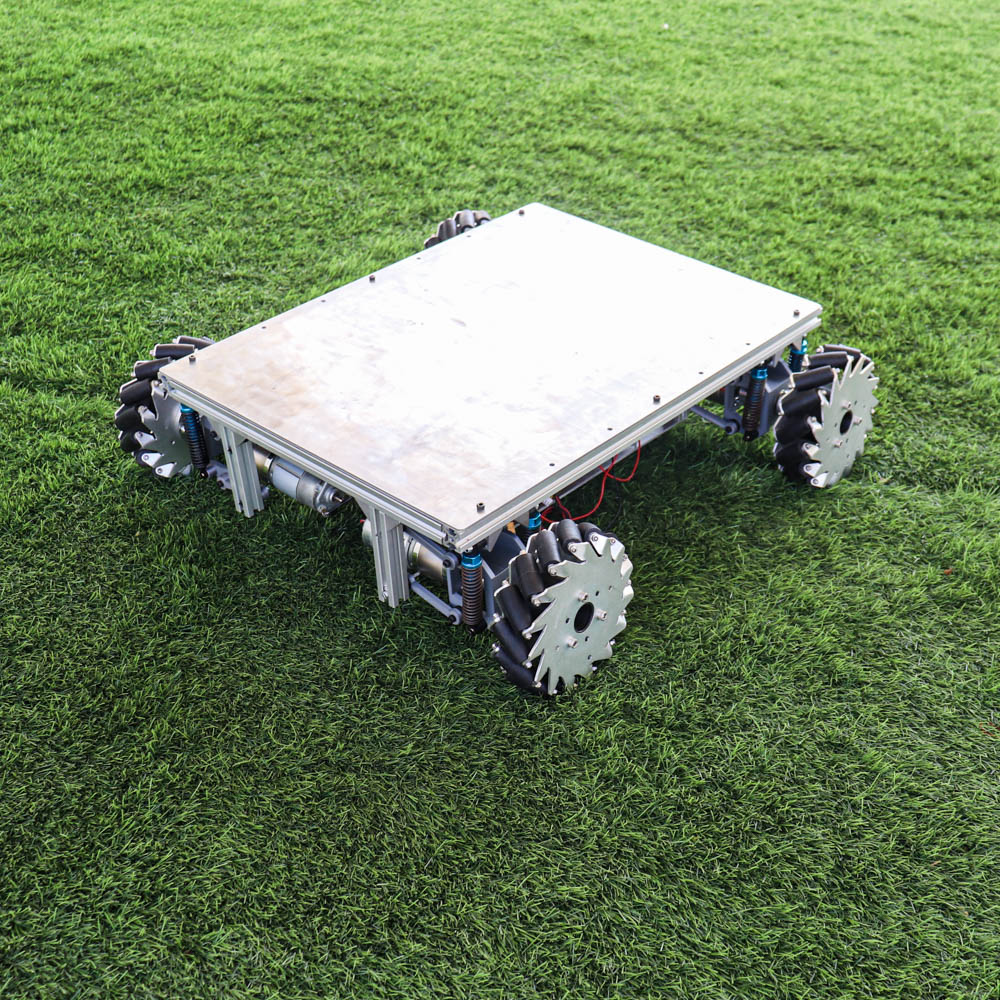

EasyMech Independent Suspension Shock Absorber Chassis for Heavy Duty Jobs up to 60Kg

EasyMech Independent Suspension Shock Absorber Chassis is a new addition to the Smart car chassis by EasyMech for heavy-duty work that can withstand up to 100Kg of load effortlessly. This chassis is equipped with Mecanum Wheels and a heavy-duty Orange Planetary Gear DC Motor.

The product adopts a 152 mm Mecanum Wheel, which is very hard and suitable for indoor or outdoor tasks. The all-metal construction makes the car more stable and strong and provides good room for customization of your robot. It has a very good shock absorber chassis which can carry up to 60Kgs very smoothly. For the compact design, the Whole car looks very beautiful and sturdy. Driven by the Orange 265 RPM Planetary Gear motor.

The kit with 152 mm Mecanum Wheel Spring Shock Absorber Smart Car Robot Chassis is designed by EasyMech and provided with all essential tools to assemble the kit.  Additionally, they have added the step-by-step user manual to provide an assembly guide.

Each part of this chassis is available for the replacement

We have a diverse range of aluminum extrusions if you want to build your custom-size bot. Click here

Note: Battery is not included in this kit.

Features:

1. EasyMech’s branded Product.
2. It contains high-quality heavy-duty products.
3. Heavy Duty Wheels are provided to hold the Weight.

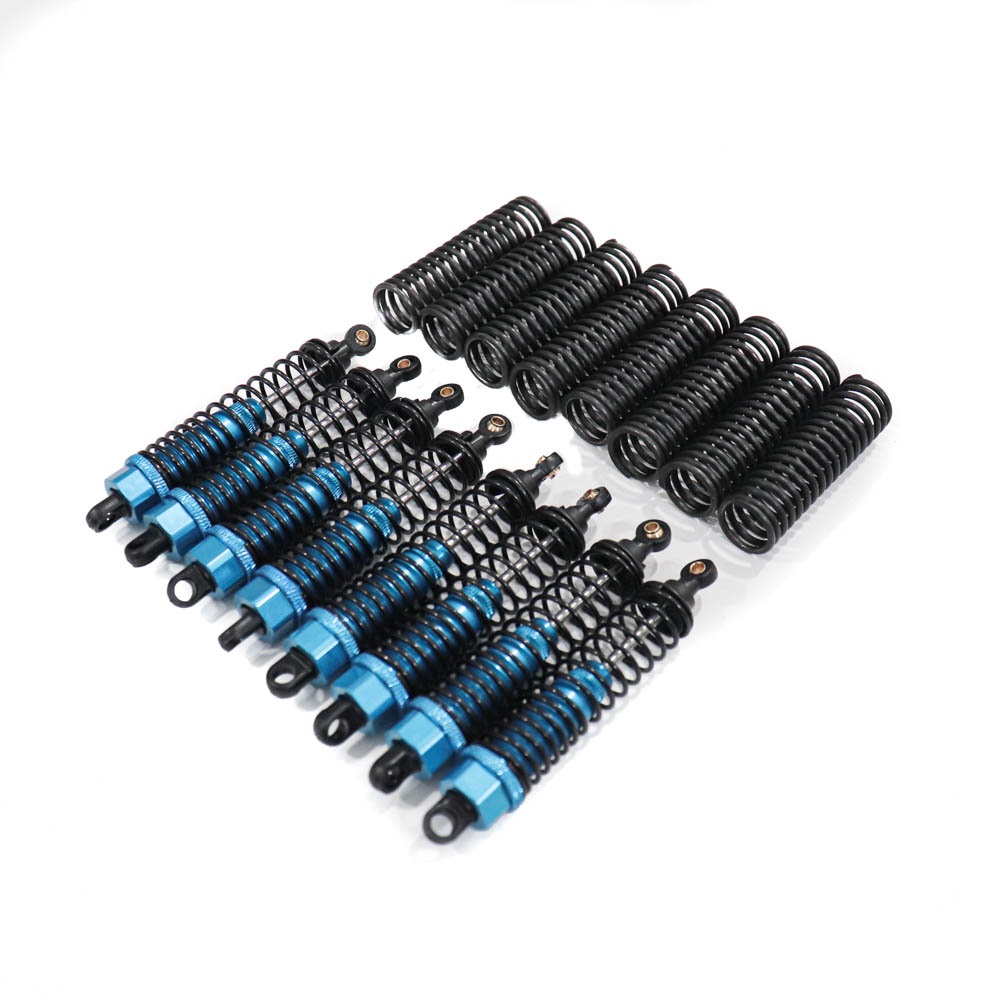

4. The kit contains shock absorber chassis.

Package Includes:

1 X EasyMech Spring Shock Absorber Chassis
1 X Hardware Set (Fitting Accessories)

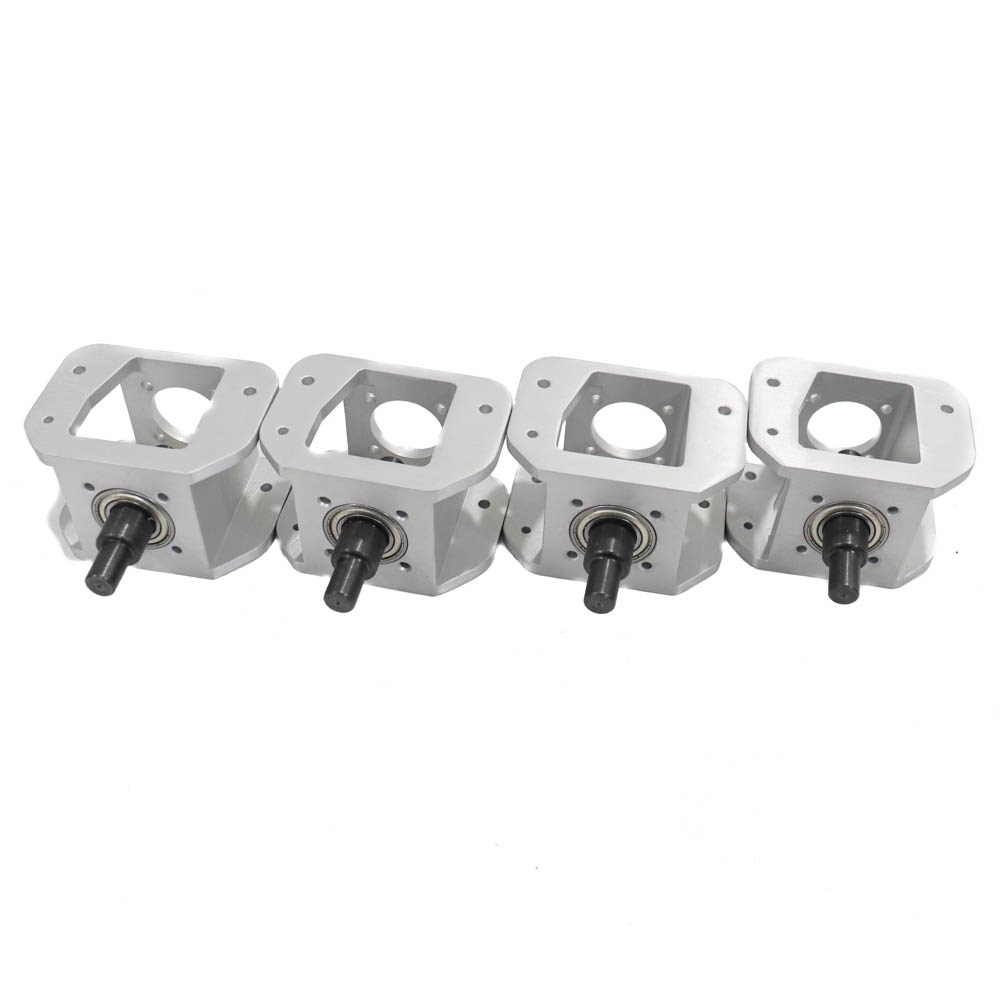

4 X EasyMech 6902 ZZ Bearing Housing & MS Shaft for PGM45775 Planetary Gear DC Motor

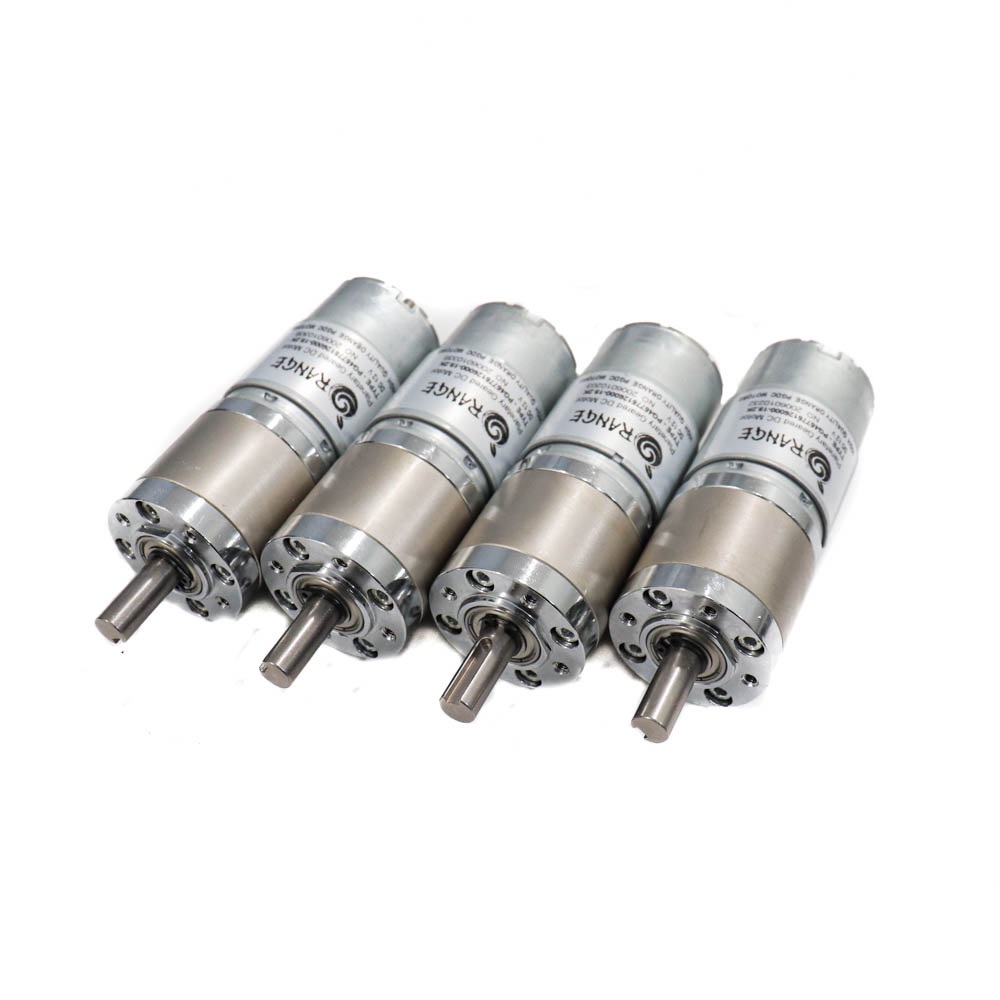

4 X Orange Planetary Gear DC Motor 12V 256RPM 95.5 N-cm PGM45775-19.2K

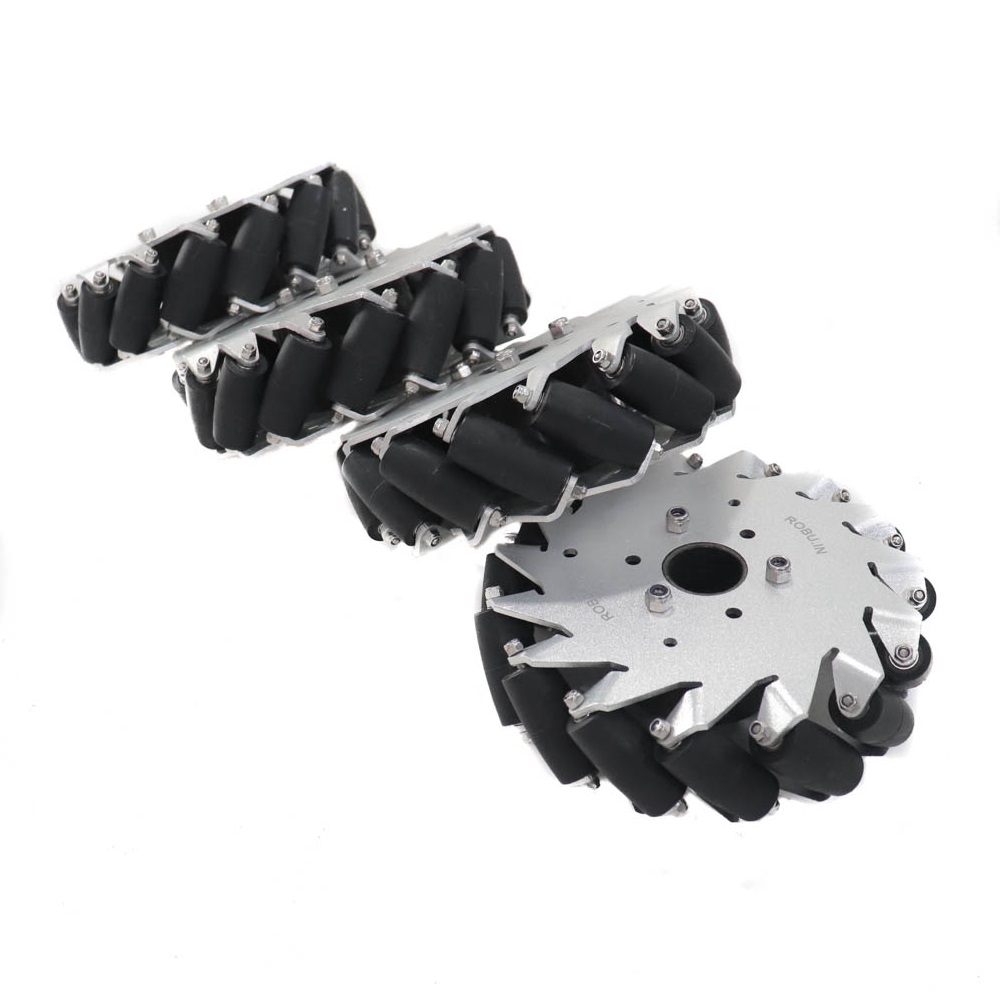

4 X A set of EasyMech 152mm Aluminium Mecanum wheels (Bearing type rollers)

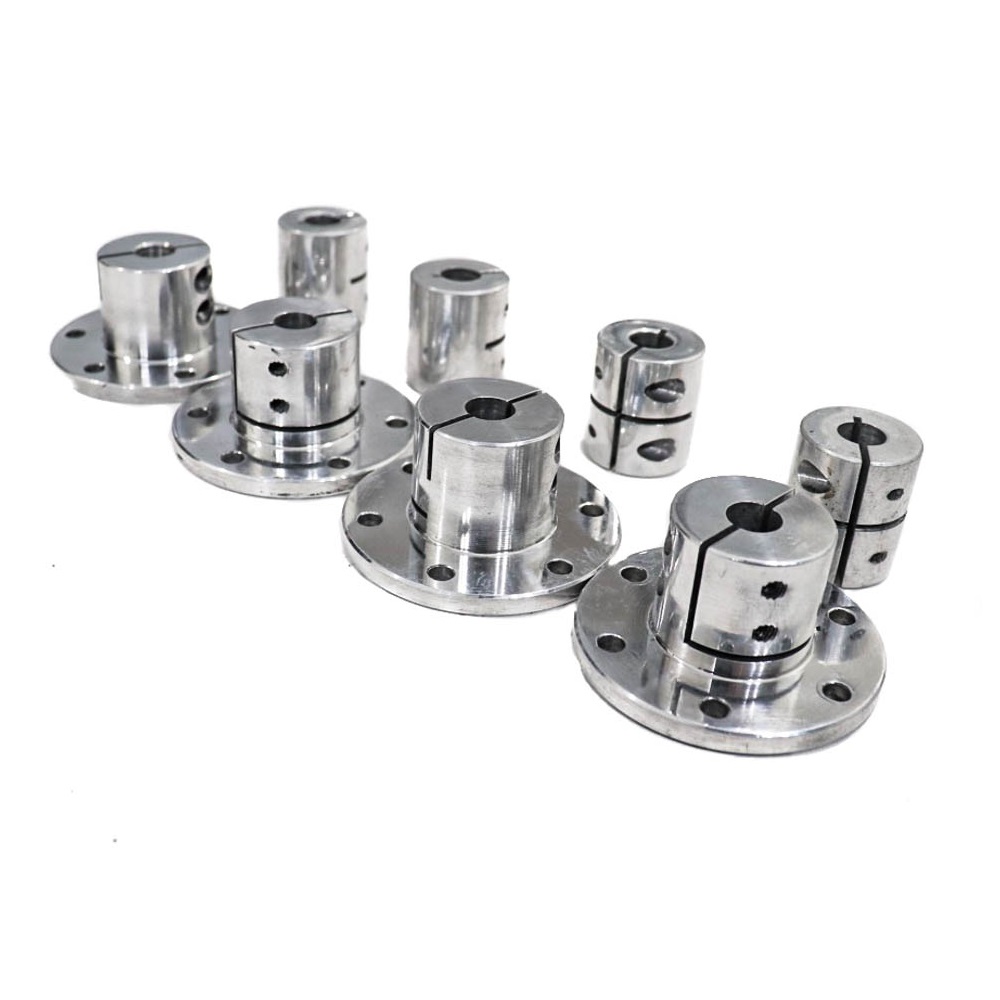

4 X EasyMech Anti-Slip Motor Coupling 10mm Internal Dia (ID)
4 X EasyMech 10×10 Aluminium Rigid coupling
1 X High-Quality Ultra Flexible 14AWG Silicone Wire 5m (Black)
1 X High-Quality Ultra Flexible 14AWG Silicone Wire 5m (Red)
1 X Assembly Guide

 To know the detailed specification of the product in this kit. Click on the product name.
