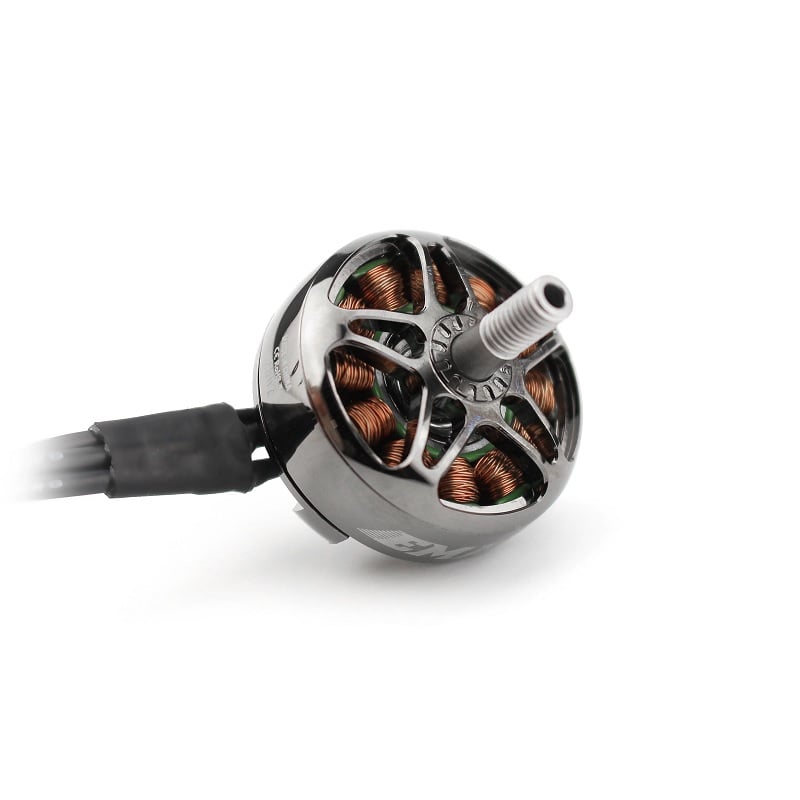

Emax ECOII-2807-1300KV Brushless Motor

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II  Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.

Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone

Features:

1. Frecision bearing
2. Steel shaft
3. Anodizing
4. 19*19mm hole pattern
5. Multi-strand winding
6. 200mm 18 AWG silicone wire
7. Fully mirror-polished finish that shines and glistens with even the smallest hint of light
8. Upgraded N52SH curved arc magnets for tighter airgap and better performance
9. Massive 12mm EZO bearing for unparalleled smooth operation

Specification:

1. Model: Emax ECOII-2807-1300KV
2. hole pattern: 19 X 19
3. Lead: 200mm 18 AWG
4. Bearing: 4mm
5. Ideal current: 1.3A
6. Internal resistance: 58mΩ
7. No. of cell: 3-6 cell
8. Propeller: 6-7
9. Power watt (6): 1310W
10. Motor weight: 54g

Packages Includes:

1 x Emax ECOII-2807-1300KV Brushless Motor
