F01A-STP-B04 Kamoer Lab Pump 24V 1.9A 1~10ml/min | BPT tube 1.0*3.0mm

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, the NKCP series pumps come in a plastic enclosure with the speed controller to adjust the flow rate of the pump, which squishes a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24 V DC supply and can produce a flow rate up to 17-50ml per minute.

Application:

1. Transferring ink in the printer
2. Water transfer from the aquarium
3. Food & Beverages

Features:

1. Stepper Motor inside, High precision
2. Supporting Calibrations
3. Supporting speed controller, Easy to use by turning the knob
4. LCD shows real-time Support to start or stop regularly
5.  Supporting time delay, Circuit working, period working
6. Supporting multiple machine working
7. Supporting time controller Includes working time & Delay time Unto 99 hours 99 minutes 99 Seconds

Specifications:

1. model: F01A-STP-B04
2. Adapter: Input AC 100V to 240V 50-60HZ 1.0A max  Output DC 24V 1.9A
3. Power: 12W
4. Add time: 96times/day-once/4 day
5. Volume Range: 1ml∼9999ml
6. Quantitative accuracy: <± 2%
7. Working temperature: 0-70°C
8. Weight: 660g

Packages Includes:

1 x F01A-STP-B04 Kamoer Lab Pump 24V 1.9A 1~10ml/min | BPT tube 1.0*3.0mm
1 x Power Adaptor
1 x Cylinder
1 x Pump Head
1 x KSP-F01A Main Unit
2 x Connectors

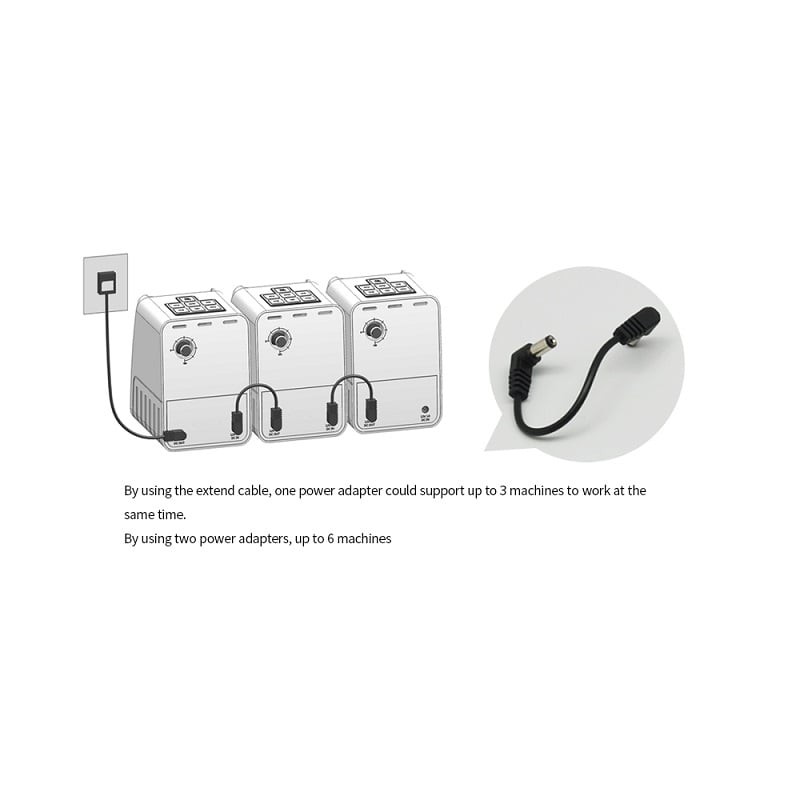

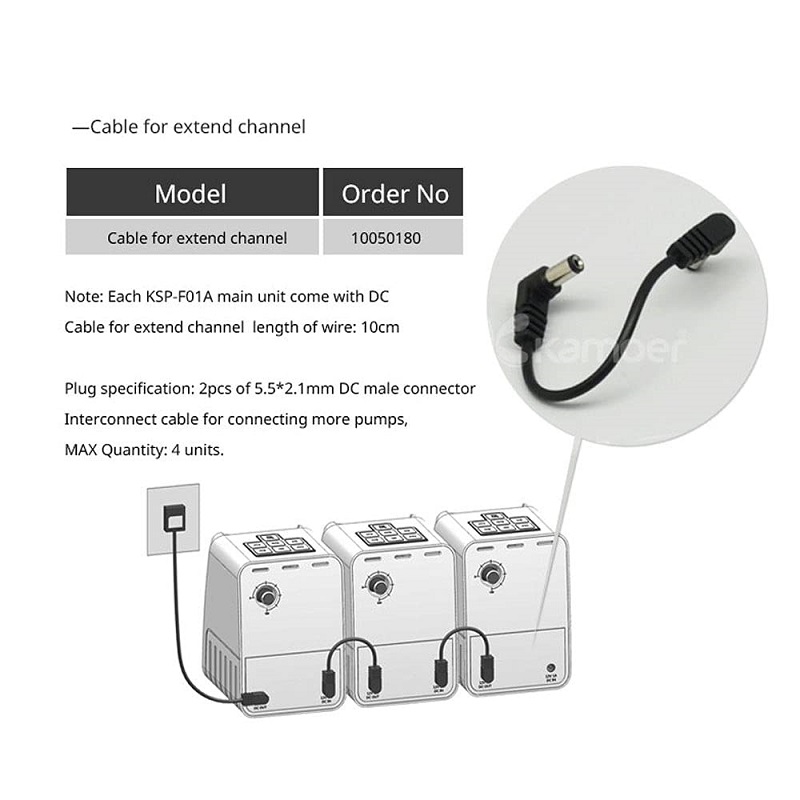

1 x Cable For Extend Channel
