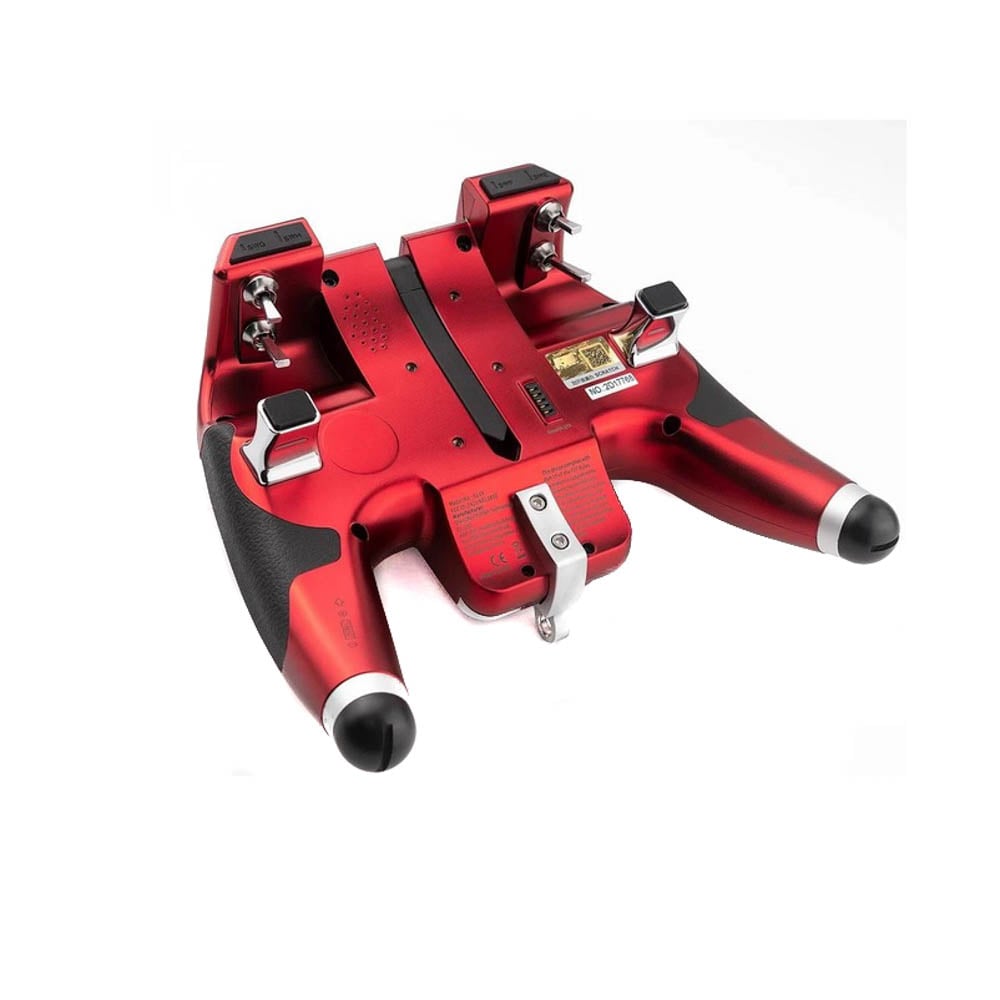

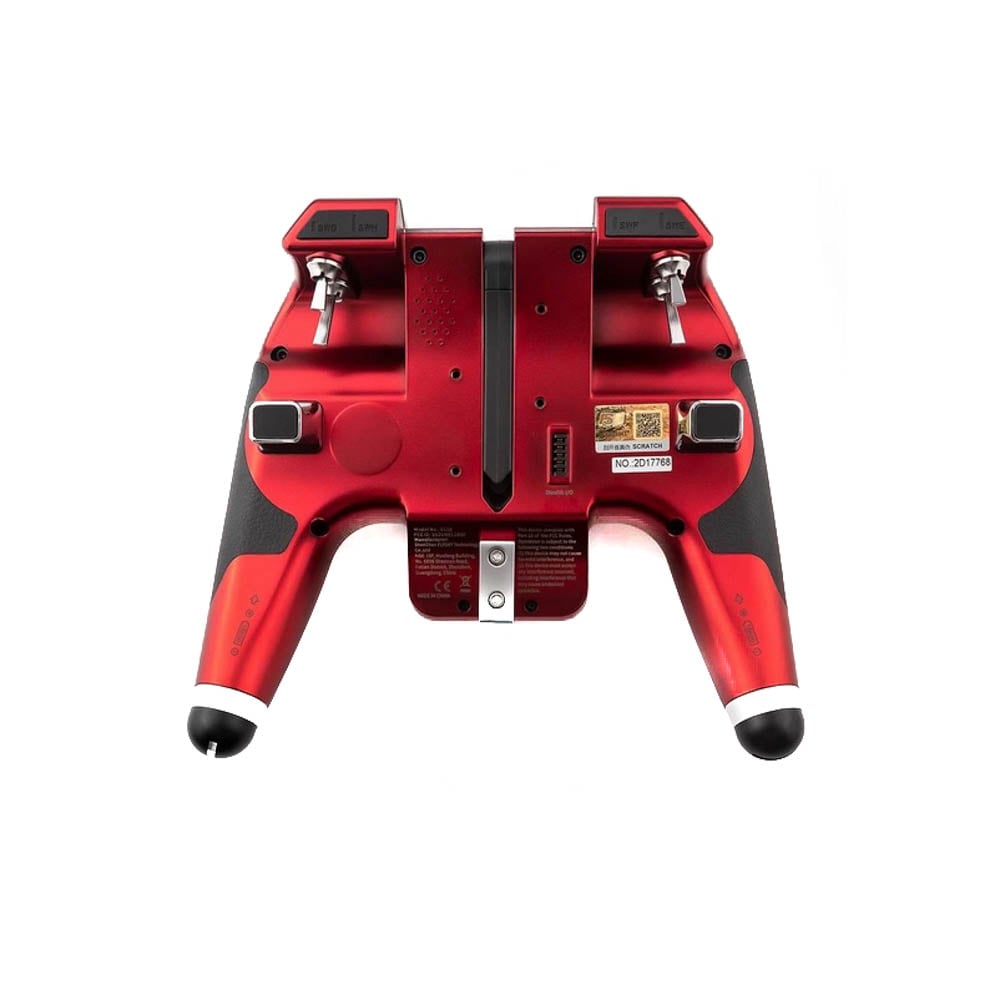

FLYSKY Elysium EL18 2.4GHz AFHDS 3 18ch EdgeTX Transmitter 3.5inch Touch Screen CNC Hall Gimbals & Tmr Receiver

The EL18 adopts FLYSKY’s upgraded AFHDS 3 (Third-Generation Automatic Frequency Hopping Digital System) high-frequency protocol, for less interference and greater range. This system is also compatible with one/two-way real-time data streaming. The transmitter utilizes sensitive, accurate, and high-precision CNC Hall effect gimbals. These high-quality gimbals give a long life, are fully adjustable, and can be self-centering, or non-self-centering. 8 switches and 2 rotary potentiometers are included, 4 of the switches and the 2 rotary pots are on the front, and the other 4 switches are conveniently placed on the back, the switches are a selection of either 2-way, 3-way, or spring-loaded. A selection of colored switch covers is supplied for easy identification of the various switches.

The EL18 has a 3.5″ IPS touch screen for ease of programming, the screen brightness is also adjustable to enhance the display in even the most challenging of light conditions. On either side of this screen are the 2 trim hats for easily trimming the 4 main flight controls. Power is supplied via 2 x 18650 style batteries (not included), one in each handle that is wired in parallel, this means that the batteries can be changed one at a time without causing the Tx to power down. A USB-C port is supplied for charging, and for file transfer, and flashing firmware. The metal case is finished in a striking red electroplated acrylic textured coating, this not only looks good but is very durable as well. Accessories include a cover for the gimbals to protect them when transporting to and from the flying site, and a CG adapter for the perfect balance when using a Tx strap.

With the ability to use any mainstream RF modules including those with a transmitting power of up to 2W, the EL18 can offer an interference-free range of 3000 meters or more. The flexibility of the EL18 goes on as it also includes support for the CRSF, and CRFS2 protocols developed by TBS. These long-range protocols give the advantage of ultra-low latency, a fast update rate, and fast two-way communication.

Why look for another transmitter, the Elysium EL18 open source with EDGETX has it all, style, manufactured using high-quality components and materials, comfortable to hold, user-friendly layout, and fantastic flexibility.

Note:

1. For more info refer to datasheet in attachment section.
2. Actual product may vary from image in terms of color, Design etc.

Features:

1. Attractive ergonomic design with durable red acrylic textured coating
2. Utilizes FLYSKY’s upgraded AFHDS 3 high-frequency protocol
3. 3.5″ IPS color touch screen with adjustable brightness, easy to read in even the most challenging light conditions
4. Includes EdgeTX open source system and FLYSKY’s core RC technology
5. Accurate, sensitive, high-precision, Hall effect CNC gimbals
6. Has the ability to use mainstream RF modules including support for CRSF, and CRSF2 protocols
7. Set includes the FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver

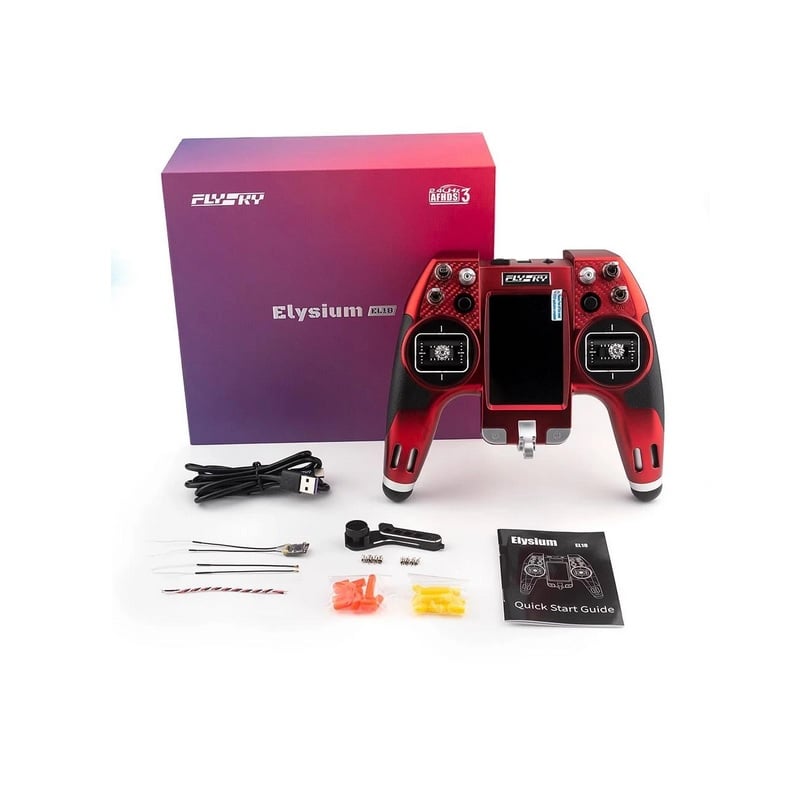

Packages includes:

1 x FLYSKY Elysium EL18 18ch Open Source EdgeTX Transmitter
1 x FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver
1 x Transportation cover to protect the gimbals
1 x CG neckstrap adapter
1 x Pack of red switch covers
1 x Pack of yellow switch covers
1 x Pack of soft gimbal springs
1 x Pack of hard gimbal springs
1 x USB cable
1 x Quick start guide
