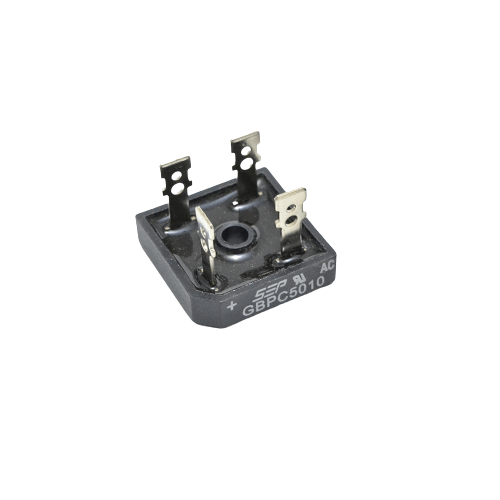

GBPC5010W 1kV, 50A Single Phase Bridge Rectifier

SKU: RZ24340203 Category: General

₹ 90.85

Out of Stock

Buy GBPC5010W 1kV, 50A Single Phase Bridge Rectifier online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 89.03
11 – 30	3%	₹ 88.12
31 – 50	4%	₹ 87.22
51 – 100	5%	₹ 86.31

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24340203

The GBPC5010 is a Single-Phase Bridge Rectifier. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 40A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a surge current capability of 400 A. If you are looking for a compact IC for rectification applications this can be a good choice.

Features

Integrally moulded heat sink provided low thermal resistance for maximum heat dissipation
High surge current capability
Void-free junction soldering by using vacuum soldering
Universal 3-way terminals: snap-on, wire-around, or P.C board mounting

Specification

Model	GBPC5010W
Type	Bridge Rectifier Diode
Working Peak Reverse Voltage	1000 V
RMS Reverse Voltage V(RMS)	700 V
Average Forward Rectified Output Current	50 A
Peak Reverse Current @ 25°C	5µA
Operating and Storage Temperature Range	-55°C TO 150°C
Country of Origin	China
