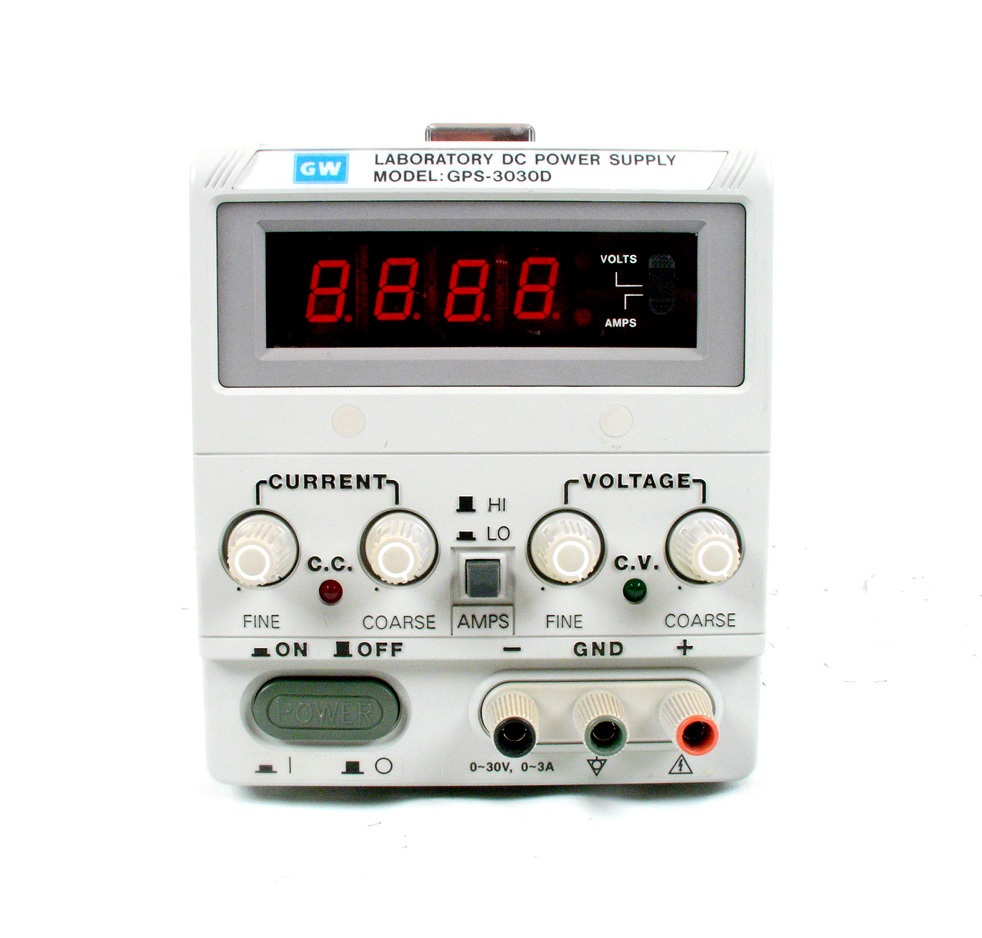

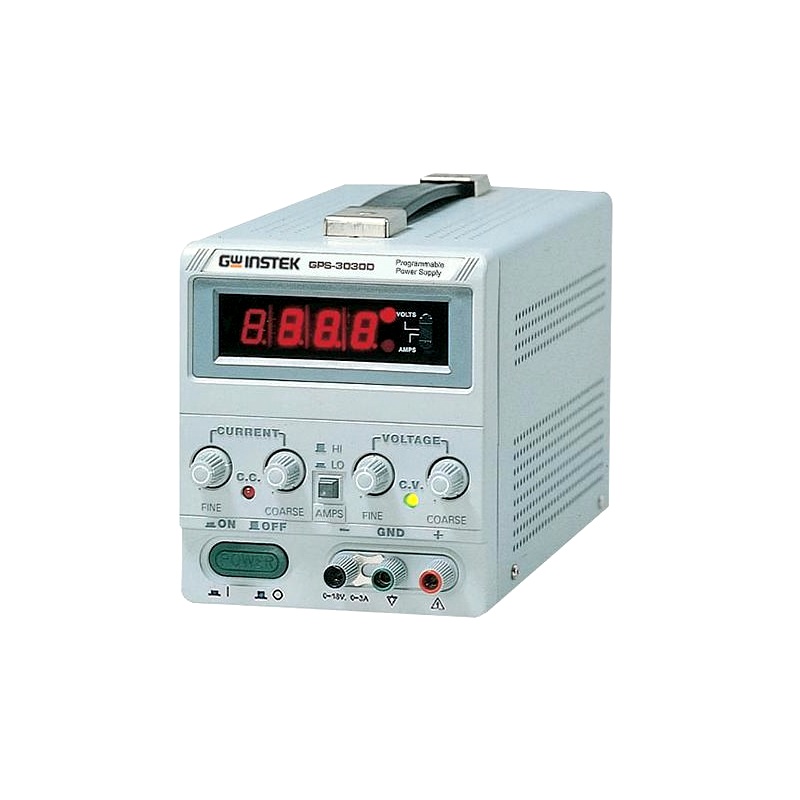

GW Instek GPS 3030D Bench Power Supply

The GPS-3030D is a 90W Linear DC Power Supply with a digital display meter with varying power outputs. It features Overload and reverse polarity protection as well as high regulation and low ripple/noise that is maintained at 0.01% and < 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.

Features:

1. Light and compact design
2. Constant voltage and constant current operation
3. Remote control for external programmability
4. Internal select for continuous or dynamic load
5. Low ripple and noise
6. Overload and reverse polarity protection

Specifications:

1. Power Supply Output Type: Adjustable
2. No. of Outputs: 1 Output
3. Output Voltage Min: 0V
4. Output Voltage Max: 30V
5. Output Current Min: 0A
6. Output Current Max: 3A
7. Power Rating: 90W
8. Supply Voltage Min: 100V
9. Supply Voltage Max: 240V
10. Product Range: GPS

Package Includes:

1 x GW Instek GPS 3030D Bench Power Supply

1 x Power cord

1 x European Test lead GTL-203A

1 x User manual
