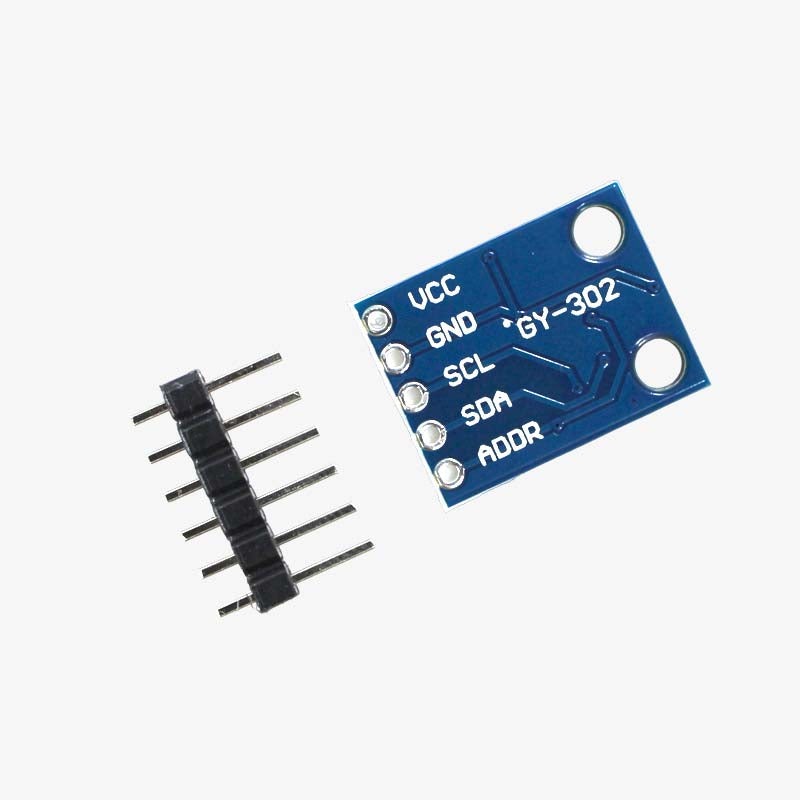

GY-302 BH1750 Light Intensity Module

The GY-302 BH1750 Light Intensity Module is a sensor module that incorporates the BH1750FVI, a digital Ambient Light Sensor IC with an I2C bus interface. This sensor is specifically designed for accurately measuring ambient light levels and is commonly used to adjust the backlight power of LCD screens and keypads in mobile phones and various other applications. It offers a high-resolution measurement capability over a wide range of light intensities.

Features:

• No ambient light distinction
• High precision determination accurate to 1 Lu for different lights
• ROHM original package BH1750FVI chip

Specifications:

• Type: GY-302
• Operating Voltage (VDC): 3 ~ 5 V
• Analog to Digital Converter: Built-in 16-bit
• Interface: I2C (Inter-Integrated Circuit)
• Data Range: 0 to 65,535 lux
• Dimensions (LxWxH): 18x13x3mm

Applications:

Mobile phone, LCD TV, NOTE PC, Portable game machine, Digital camera, Digital video camera, PDA, LCD display.

Package Includes:

1 x GY-302 BH1750 Light Intensity Module
