Infrared Flame Sensor Temperature Module

SKU: RZ24339249 Brand: Arduino Category: Sensors

₹ 57.50

Out of Stock

Buy Infrared Flame Sensor Temperature Module online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 56.35
11 – 30	3%	₹ 55.78
31 – 50	4%	₹ 55.20
51 – 100	5%	₹ 54.63

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Arduino

Category Sensors

Subcategory Sensors (General)

SKU RZ24339249

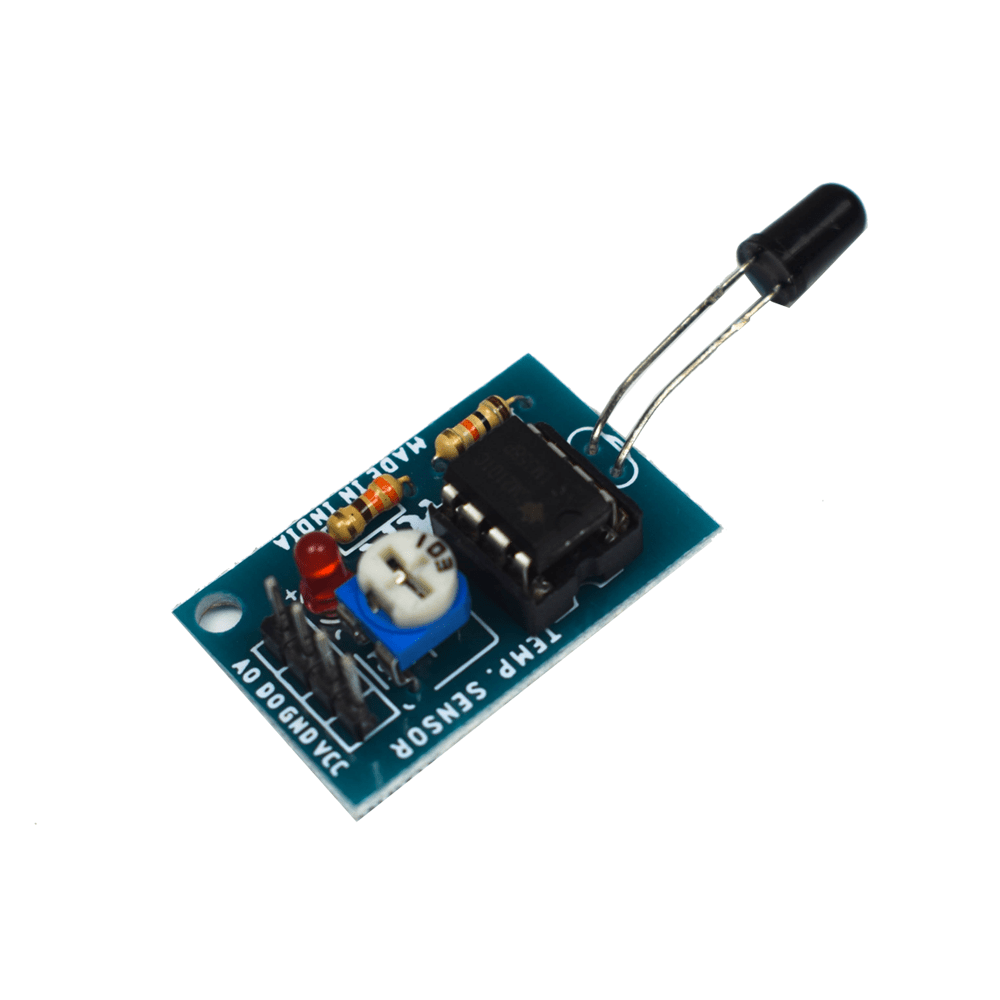

This is an Infrared Flame Sensor Temperature Module. A Flame Sensor module, also known as a Fire Sensor module, is a small electronic device that can detect a fire or other bright light sources. This sensor detects IR (Infrared) light wavelengths ranging from 760 nm to 1100 nm emitted by a fire or light source. It has four pins (A0, D0, Gnd, and Vcc) and can be used with Arduino and other microcontroller boards.

Features:-

High Photosensitivity
Fast Response Time
Adjustable sensitivity
Adjustable detection range
The detection angle is about 60 degrees, sensitive to the flame spectrum.

Pinout:-

Pin	Pin Name	Description
1	VCC	+5 v power supply
2	GND	Ground (-) power supply
3	OUT 1 (DO)	Digital Output (0 or 1)
4	OUT 2 (AO)	Analog Output

Specifications

Product	Flame Sensor Temperature Module
Type	Flame Sensor
No. of Pins	04
IC Used	LM358
Output Type	Digital and Analog
Dimensions	31209 (mm)
Make	Made in India
Country of Origin	China
