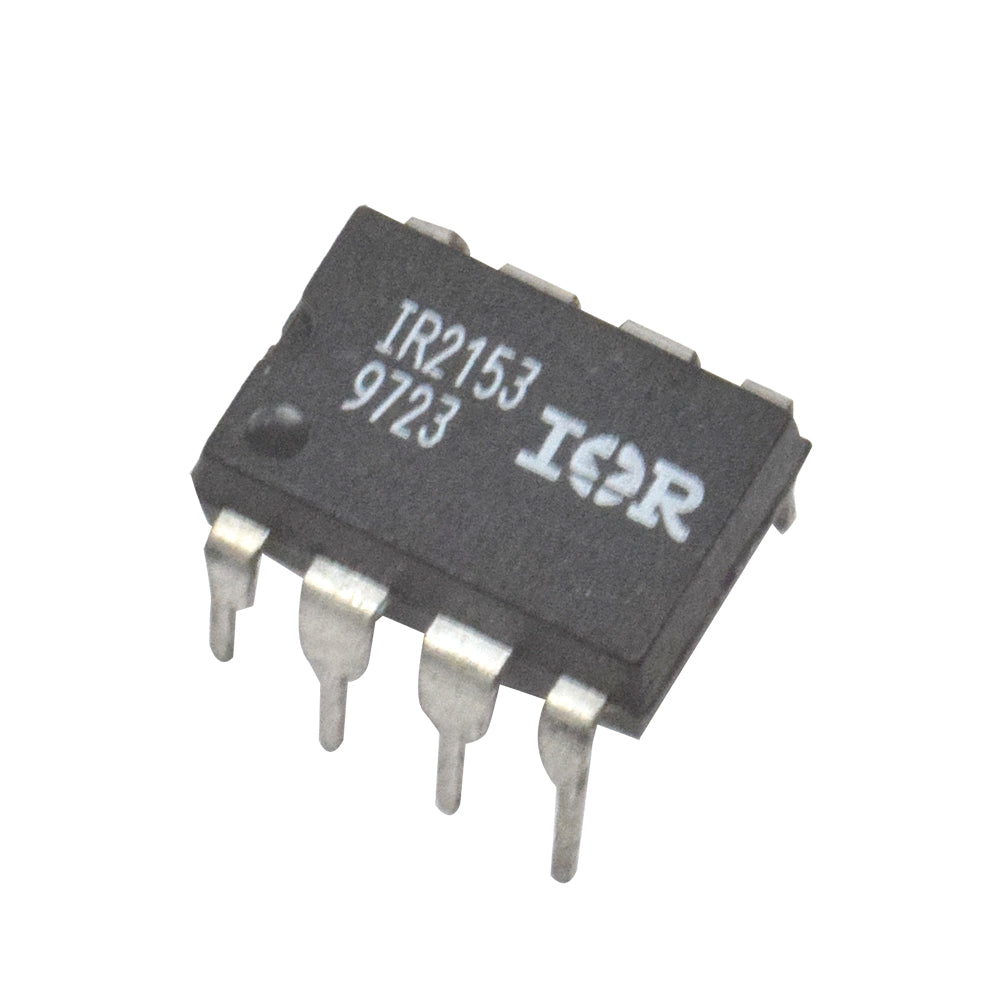

IR2153 Self Isolating Half Bridge Driver

SKU: RZ24338731 Category: General

₹ 102.35

Out of Stock

Buy IR2153 Self Isolating Half Bridge Driver online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 100.30
11 – 30	3%	₹ 99.28
31 – 50	4%	₹ 98.26
51 – 100	5%	₹ 97.23

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24338731

An enhanced variant of the widely used IR2155 and IR2151 gate driver ICs, the IR2153D(S) incorporates a high voltage half-bridge gate driver with a front end oscillator that is similar to the CMOS555 timer. In comparison to earlier ICs, the IR2153 offers more capability and is simpler to operate. The CT pin features a shutdown capability that allows both gate driver outputs to be turned off using a low voltage control signal. Additionally, once the rising under voltage lockout threshold on VCC has been achieved, the gate driver output pulse widths are constant, resulting in a more stable frequency vs. time profile at startup. Increasing the under voltage lockout hysteresis to and reducing the peak di/dT of the gate drivers have both greatly enhanced noise immunity.

For more information: DATASHEET

Features

It has true micropower setup
Its an integrated 600V Half bridge driver
It has Low coefficient temperature and dead time
It has Low side output in Phase with RT
Its a lower power level shifting

Specification

Model	IR2153
Type	IC
Package	8 Lead DIP
Brand	International rectifier
Supply voltage	10V
No of pins	8
Supply current	5mA
Operating and Storage Temperature Range	-40°C TO 125°C
Country of Origin	China
