Kamoer KFS-HA2-B04B Peristaltic Pump

Peristaltic pump; Diaphragm pump; Gas Pump; Vacuum Pump; Whole pump; Pump tubing; Joints; Driver Board; Accessories; new. Home. Category. They are most often used to move fluids that are sterile or aggressive chemicals. They can also pump IV fluids or slurries with a high degree of fluid content. They are also used for heart/lung machines during surgery. a pump in which fluid is forced along by waves of contraction produced mechanically on flexible tubing.

Typical motor speeds for peristaltic pumps range between 0-400 revolutions per minute. Usually, DC and BLDC motors are used together with a gearbox to set speed depending on the flow need. Stepper motor speeds can be regulated by using an external controller board. Peristaltic pumps are used for pizza sauce dispensing, juice production and the injection of vitamins A & D. They are also used to circulate cell suspension in fermentation. They are used for the aspiration of tissue culture media and harvesting cell media.

Rollers or shoes in a peristaltic pump compress the tube or hose as they rotate, creating a vacuum which draws fluid through the tube. Nothing but the pump tube or hose touches the fluid, eliminating the risk of the pump contaminating the fluid, or the fluid contaminating the pump.

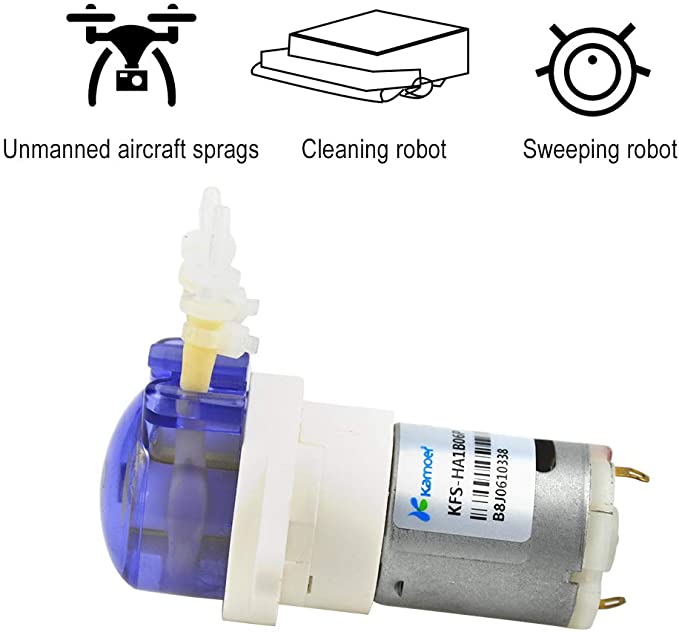

Application:

1. Wiping robots
2. sweeping robots
3. Unmanned aircraft spraying
4. instruments and equipment

Features:

1. Transmission mode is gear rotation
2. Smallest peristaltic pump
3. weight only for 95g
4. Plastic gear rotation
5. High reliability
6. low noise
7. Transmission mode is gear rotation
8. Suitable for viscous liquid and non-viscous liquid transfer
9. Pump tube material: Pharmed BPT tube
10. The pump head is detachable
11.  The direction of the pump head can be adjusted at will, and the pump tube is easy to replace.

Specification:

1. Model: KFS-HA2-B04B
2. Manufacture: ‎Kamoer Fluid Tech (Shanghai) Co., Ltd
3. Color: Purple
4. Style: ‎KFS-HA1B06P
5. material: ‎KFS-HA1B06P
6. Power Source: ‎DC
7. Voltage: 24V
8. Max. Power: ‎5 Watts
9. FLOWRATE: 4ml/min
10. Sound level: 63db
11. Current：0.2A
12. Power：5W
13.  WEIGHT:90g
14. PUMP TUBE MATERIAL TYPE：Imported PharMed BPT

Packages Includes:

1 x Kamoer KFS-HA2-B04B Peristaltic Pump
