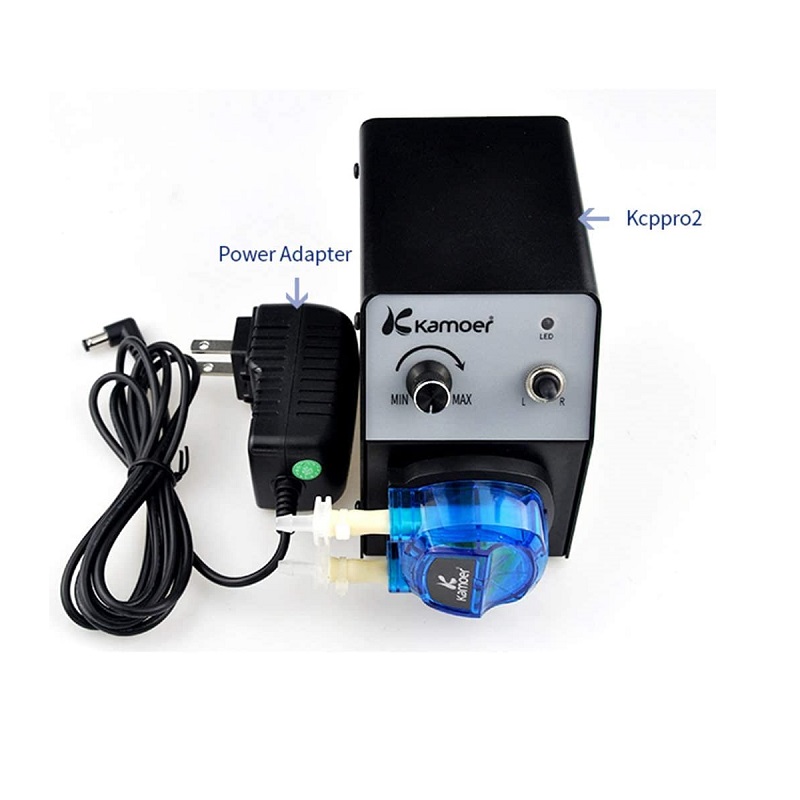

KCP PRO2-N40 Kamoer Lab Pump 24V 0.3~0.35A – N40 – 50~260ml/min | Norprene tube 4.0*7.2mm

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squish a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability

7. Working conditions: Temperature 0~40℃, humidity <80%

8. Pump tube selection: Silicone tube, imported Norprene® tube

9. Transmission mode: Planetary gear transmission, reduction ratio 1:8

10. Pump head: The upper cover is made of engineering plastics, the pump body

11. PA and gears are made of synthetic engineering plastics

12. Installation method: Straight plate and L plate

Specification:

1. Flow rate range: 50~260ml/min
2. Motor life: about 1000 hours
3. Tube Size: 4.0*7.2mm
4. Voltage: 24V
5. Current: 0.3~0.35(A)
6. Net size L139 x W79 x H110
7. Positive pressure: 0.15Mpa
8. Negative pressure: -0.09kpa
9. Weight About 765g (with power supply
10. Working conditions: ambient temperature 0 – 40C
11. Material: Norprene® Food process tube for critical processing applications in the food, dairy and cosmetic industries. Compatible with virtually all commercial cleaners and sanitisers. Great resistance to general chemicals, acid, alkali and oxidizing agents, working temperature 59℃-135℃

Application:

1. Experiment
2. Filling packaging
3. Laboratory
4. Research institutes
5. Food industry

Package Includes:

1 x KCP PRO2-N40 Kamoer Lab Pump
