LEM Current Transducer, LA Series, 25A, -36A to 36A, 0.5 %, Closed Loop Output, 14.25 Vdc to 15.75 Vdc

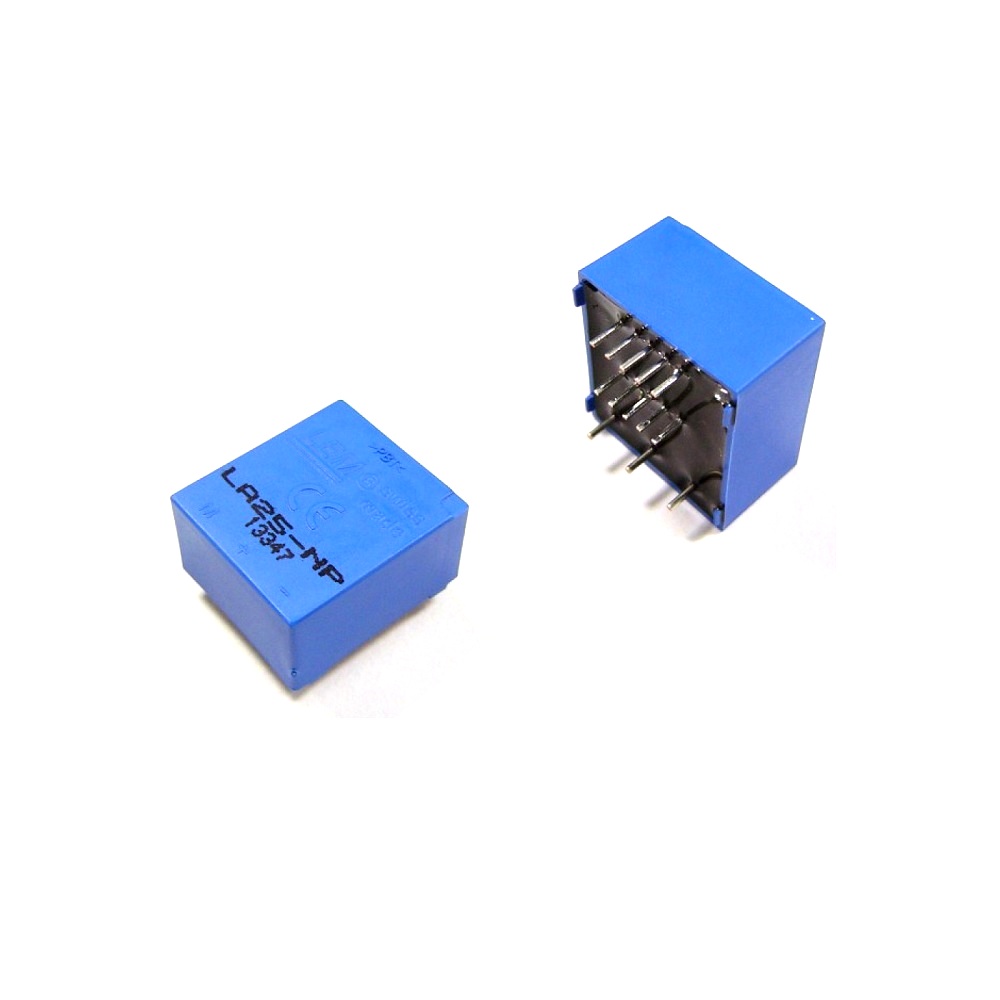

The LA 25-NP from LEM is a current transducer. It features instantaneous output, excellent accuracy, very good linearity, low-temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high immunity to external interference, and current overload capability. This current transducer is used for the electronic measurement of currents (DC, AC, pulsed, mixed) with galvanic separation between the primary circuit and the secondary circuit. It is mainly used in AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS), and power supplies for welding applications.

Applications: Industrial, Consumer Electronics, Portable Devices, Motor Drive & Control, Power Management

Warnings: Market demand for this product has caused an extension in lead times. Delivery dates may fluctuate. Product exempt from discounts.

Features:

1. Closed-loop current transducer using the Hall effect technology
2. Primary nominal current of 25A
3. The primary current measuring range is ±36A
4. The conversion ratio is 1-2-3-4-5: 1000
5. Secondary nominal RMS current is 25mA
6. The insulated plastic case recognized according to UL 94-V0
7. PCB mounting

Specifications:

1. The operating Voltage is ±15V
2. Sensor Output: Current
3. Supply Voltage DC Min: 14.25V
4. Supply Voltage DC Max: 15.75V
5. Current Measuring Range DC: -36A to 36A
6. Current Measuring Range AC: -36A to 36A
7. Response Time: 1µs
8. Accuracy : 0.5%
9. Product Range: LA 25-200 -P Series
10. Operating temperature range from -40°C to 85°C

Note: For more technical details go through Datasheet in the attachments.

Package Includes:

1 x LA 25-NP LEM Current Transducer 25A -36A to 36A, with Closed-Loop Output 14.25 to 15.75 VDC
