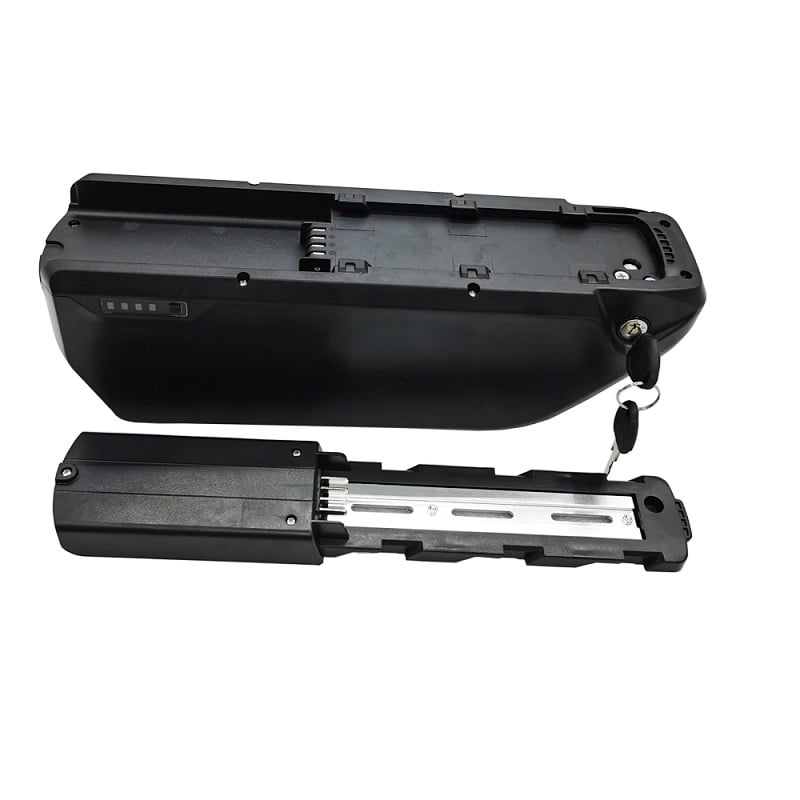

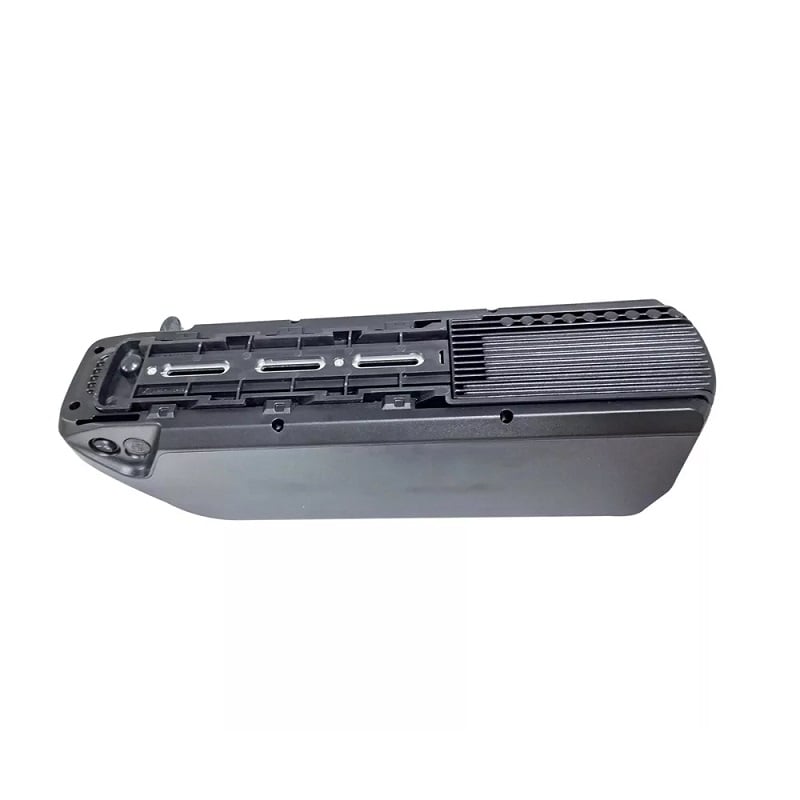

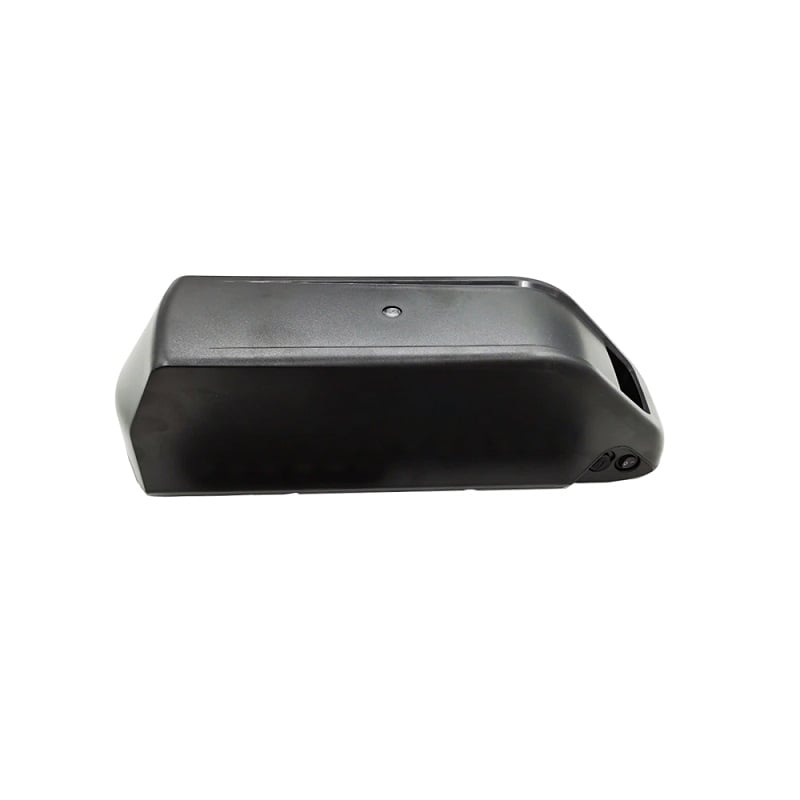

LI-ION EBIKE BATTERY CASE DP-5C 13S4P 14Ah 48V

About: LI-ION EBIKE BATTERY CASEDP-13S4P 5C 14Ah 48V., The product is used to install an electric vehicle lithium battery. The product only includes the battery Case and does not contain a built-in lithium battery, The outer casing is suitable for electric bicycles, electric bicycles and folding electric vehicles, The product is made of aluminum alloy and plastic, which is sturdy and durable, The product has a charging socket and an output port, Dimensions: 387*100.6*94.4mm. LED indicator：4 LED lights.

The LI-ION Battery  Case is very  Easy Use And it Is Versatile. And Suitable For your Projects.

Note: No Lithium-Ion Battery Inside The Case. You Need To Separately.

Features:

1. Full set electric bike battery case.
2. DP-13S4P 5C 14Ah.
3. Black plastic upper and lower case.
4. Black plastic battery base, with controller box(Can fit 9 MOSFET controller PCB).

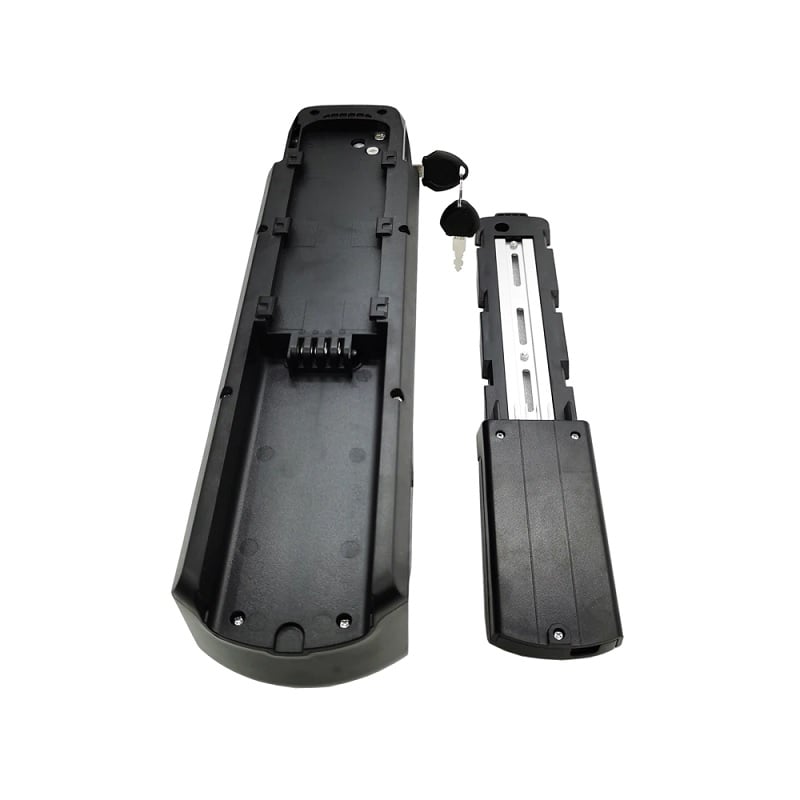

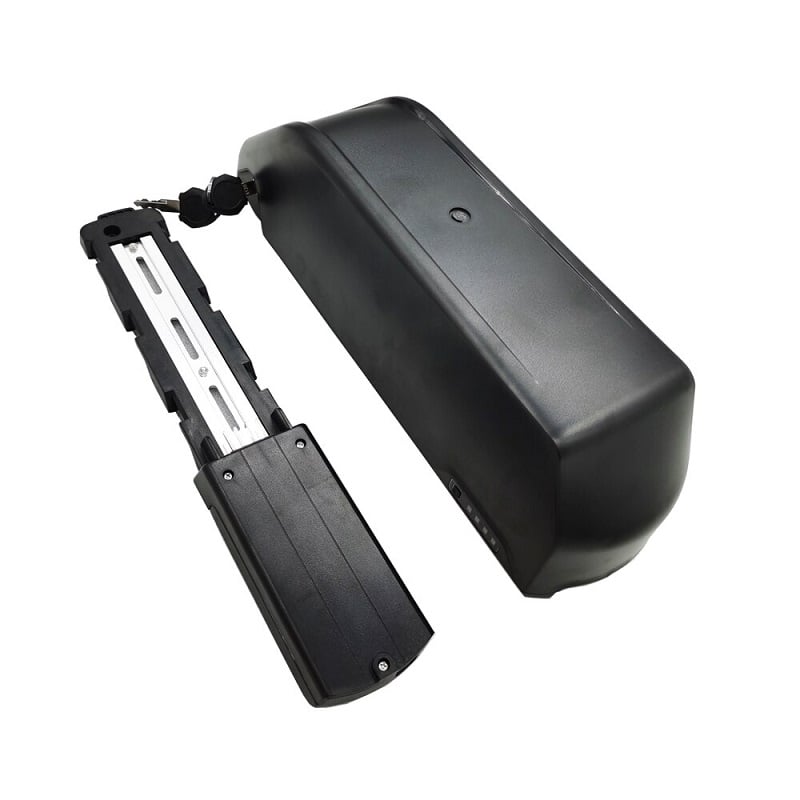

5. Mechanical Structure: Push ahead and upper-taken style, Mechanical Lock.

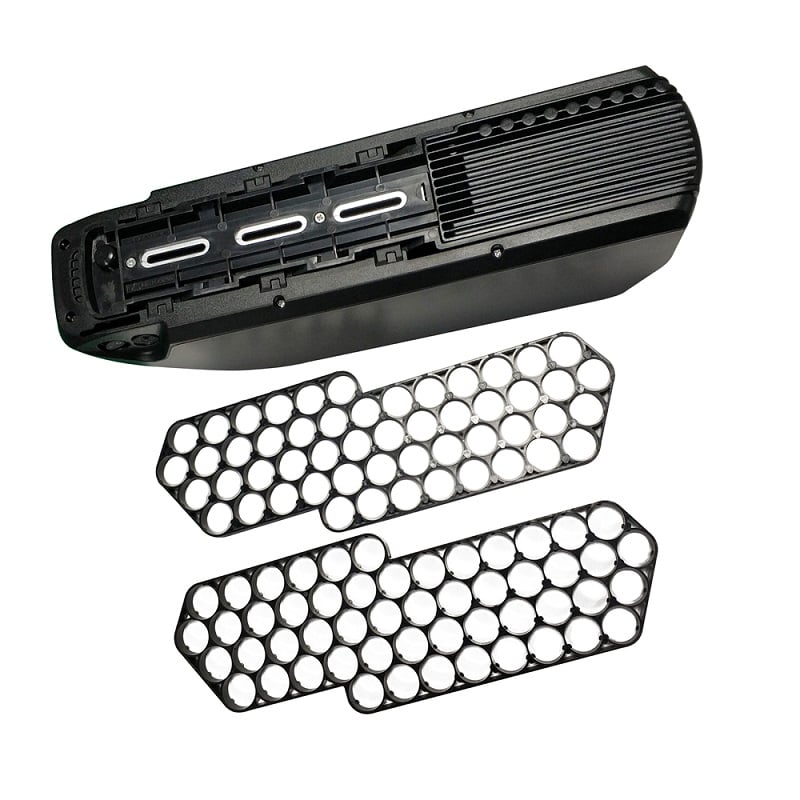

6. Maximum cells: 40 cells-21700, 52 cells-18650.
7. Discharging port: 4Pin.
8. Discharge maximum current：14A.
9. Charging port: DC2.1, Opt.3Pin high current.
10. Charging maximum current：2~5A.
11. Power Switch: With.
12. USB: Without.
13. LED indicator: 4 LED lights.
14. Optional parts: Base block PLA0288, Switch hole cover PLA0187, Spring lock SDP0017.

Specification:

1. Voltage: 48V.
2. Capacity: 14Ah.
3. Configuration: 13S4P.
4. Cell: LI-ION Battery.
5. BMS: 14A Continuous Current 120A peak Current .
6. MAX: Charging Current 14Ah.
7. Dimensions: 387*100.6*94.4mm.

Package Includes:

1 x LI-ION EBIKE BATTERY CASE DP-13S4P 5C 14Ah 48V.
