M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
Buy M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660) online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

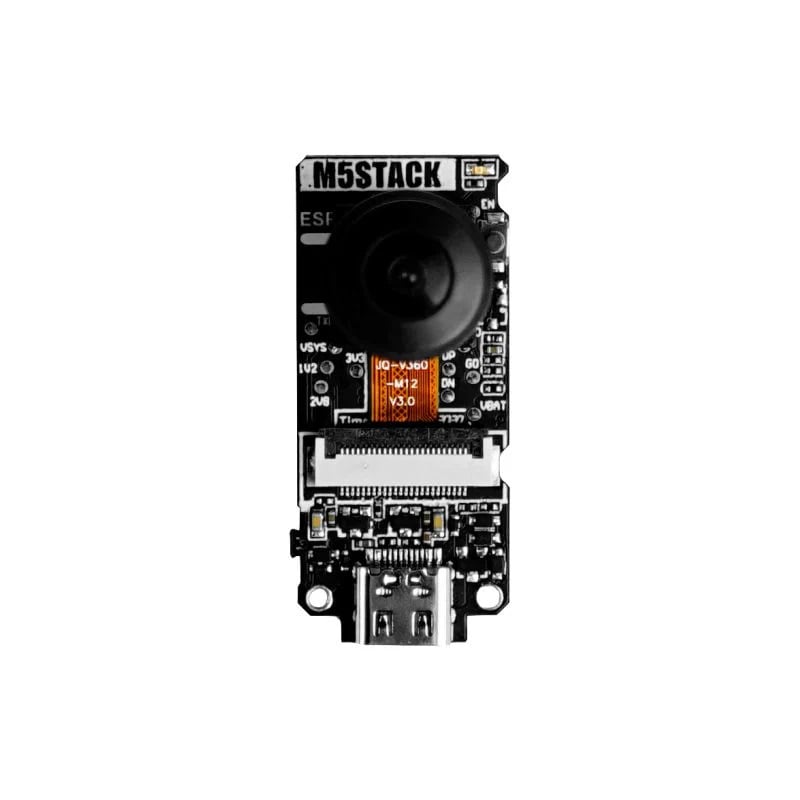

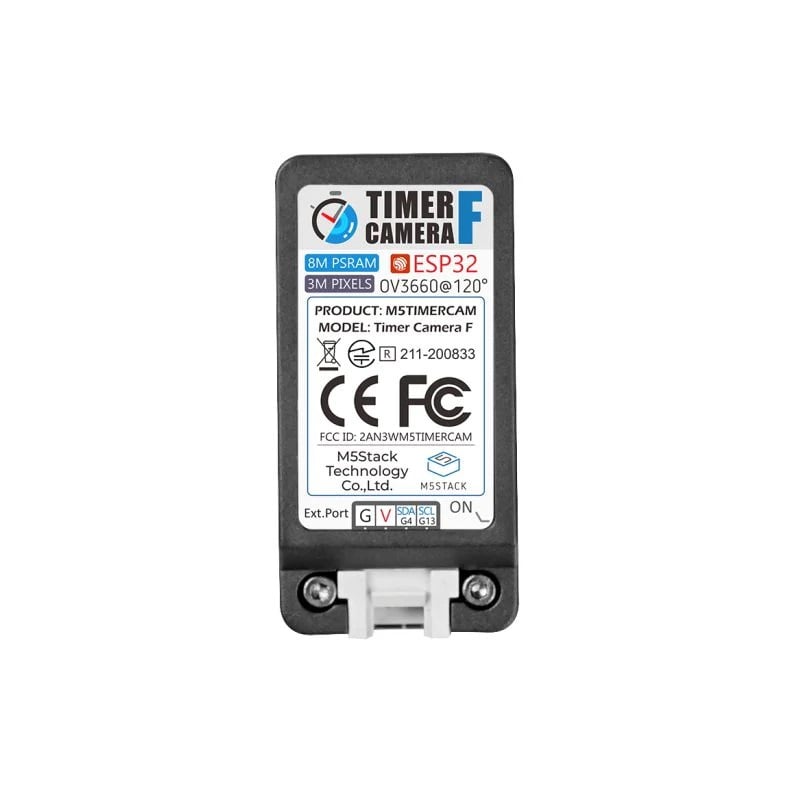

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0-megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048×1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled.
Features:
- Design based on esp32
- Wi-Fi image transmission
- Timed sleep wake up
- Status indicator
- Ultra-low power design
- Built-in 270mAh battery
- Programming platform:ESP-IDF/Arduino/UIFlow
Specifications:
- PSRAM: 8MB
- Flash: 4M
- Battery: 270 mAh
- Image Sensor: OV3660
- Maximum resolution: 3M pixels
- Output format: 8-/10-Bit RAW, RGB and YCbCr output, compression.
- DOV: 120°
Package Includes:
1 x M5STACK ESP32 PSRAM Timer Camera Fisheye (OV3660)
