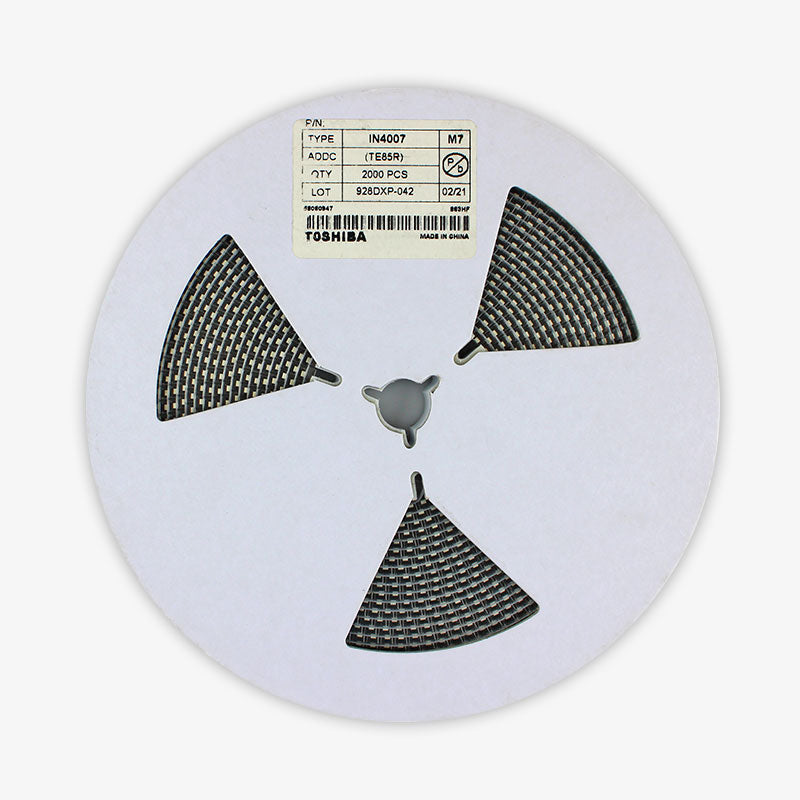

M7 / 1N4007 SMD Diode (Pack of 10)
Buy M7 / 1N4007 SMD Diode (Pack of 10) online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
M7 Diode is nothing but SMD version of 1N4007 Diode. Features of M7 Reverse voltage 50 to 1000 Volts with Forward Current of 1.0 Ampere.
Features :
- SMD Version of 1N4007
- Forward Current: 1A
- Max Repetitive Reverse Voltage: 1000 V
- Max RMS Voltage: 700V
- Max DC Blocking Voltage: 1000V
- Max instantaneous forward voltage: 1.1 V
Mechanical Characteristics :
- Case : JEDEC DO-214AC molded plastic body
- Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
- Polarity : Color band denotes cathode end.
Specifications :
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Maximum Average Forward Rectified Current (IFAV) | 1A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 30A |
| Operating Junction Temperature Range (TJ) | − 65°C to +175°C |
| Storage Temperature Range (Tstg) | − 65°C to +175°C |
| Quantity | 10 Pieces |
Package includes :
M7 / 1N4007 SMD Diode x 10piece
