MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)
🔍 Zoom

MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

SKU: RZ24332418 Category: General
₹ 374.85
Out of Stock

Buy MG996R Tower Pro Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 367.35
11 – 30 3% ₹ 363.60
31 – 50 4% ₹ 359.86
51 – 100 5% ₹ 356.11

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Category General
Subcategory General
SKU RZ24332418

This Tower Pro MG996R Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)features metal gearing resulting in extra high 10kg stalling torque in a tiny package. The MG996R is essentially an upgraded version of the famous MG995 servo, and features upgraded shock- roofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centering. The unit comes complete with 30cm wire and 3 pin ‘S’ type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

Important: Please note that these are not Full Metal Gear Servo motors, only the top gear comes in metal.

Wire Configuration :

  • RED    –   Positive
  • Brown – Negative
  • Orange – Signal (PWM)

Specifications :

  • Operating voltage: 4.8 V - 7.2 V
  • Running Current 500 mA – 900 mA (6V)
  • Stall Current 2.5 A (6V)
  • Temperature range: 0 ºC – 55 ºC
  • Control System: Analog
  • Operating Angle: 180degree
  • Required Pulse: 900us-2100us
  • Direction: CCW
  • Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V)
  • Dead band width: 5 μs
  • Wire length: 30cm
  • Connector: 3 pin 'S' type female header
  • Weight: 55 g
  • Dimension: 40.7 x 19.7 x 42.9 mm approx.
  • Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
  • Stable and shock proof double ball bearing design

welcome

welcome

You May Also Like

View all →
3 Watt Blue SMD Power LED

Buy 3 Watt Blue SMD Power LED online, Order today to get instant delivery in all over india.

Notify Me
6 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive

Buy 6 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive online, Order today to get instant delivery in all over india.

Notify Me
DC24V 3510 Double Ball  Cooling Fan with XH2.54-2P  30CM Cable  Size:35*35*10MM

Buy DC24V 3510 Double Ball Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM online, Order today to get instant delivery in all over india.

Notify Me

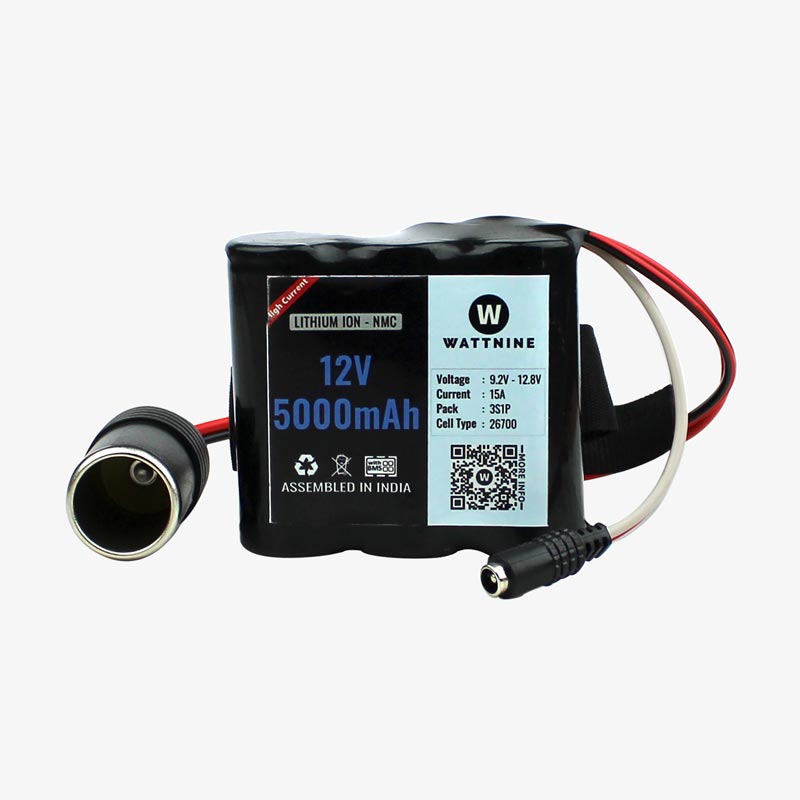

12V Lithium Battery with DC Female Car Socket/ Cigarette Lighter Socket for Tyre Inflator, Vaccum Cleaner etc
