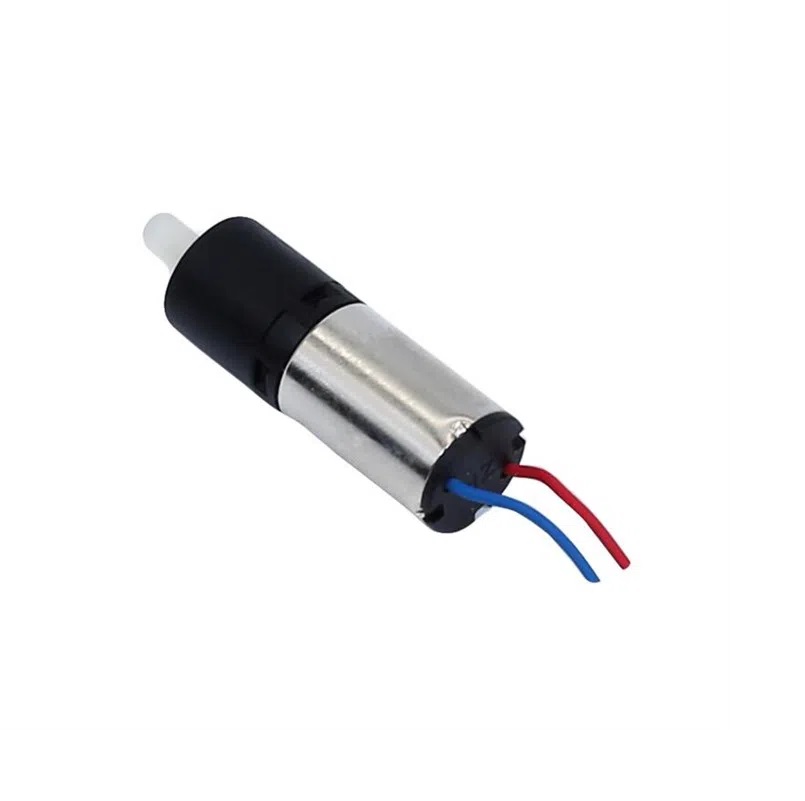

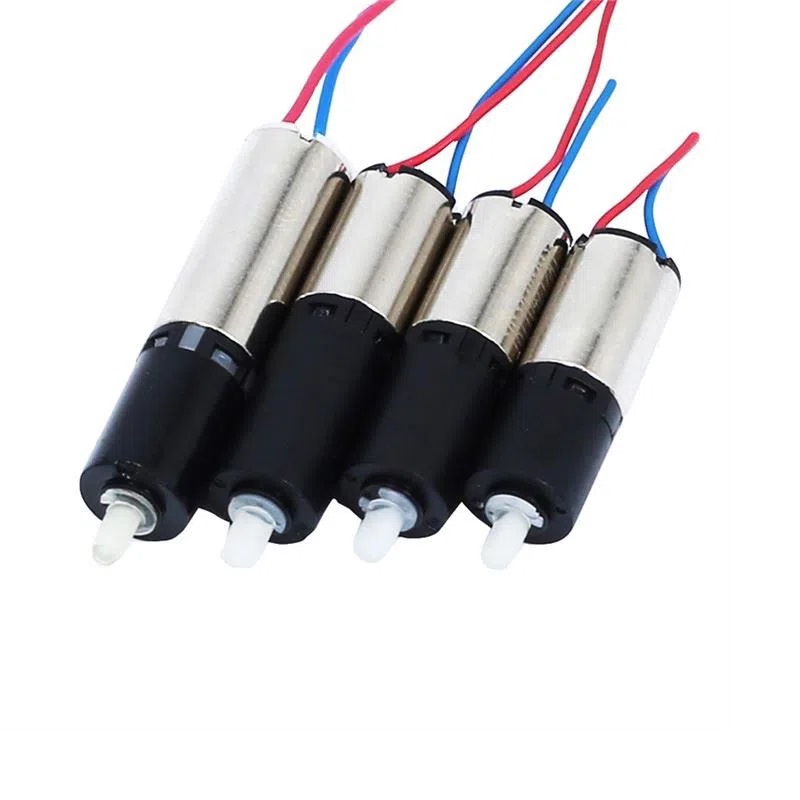

Micro gear motor,6mm Dia., 220g.cm

Over ten years of experience in manufacturing motor gearbox.Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm Audio and visual equipment, Household applications, Office automation equipment, Automotive products, Toys and models, Medical Applications, Electric power tools, Precision instruments, cosmetic tool and etc

Features:

1. Low noise,
2. low current
3. long service life
4. 6mm small DC gear motor
5. 3V voltage DC motor

Specifications:

1. Rated voltage: 3 V DC
2. No load current: 60 mA MAX
3. Output speed: 47 RPM
4. Starting Voltage: DC 1.5 V MAX
5. Stall current: 230 mA
6. Noise: 53 DB MAX
7. Gear ratio: 699.55

Package Includes:

1 x Miniature Gear Motor
