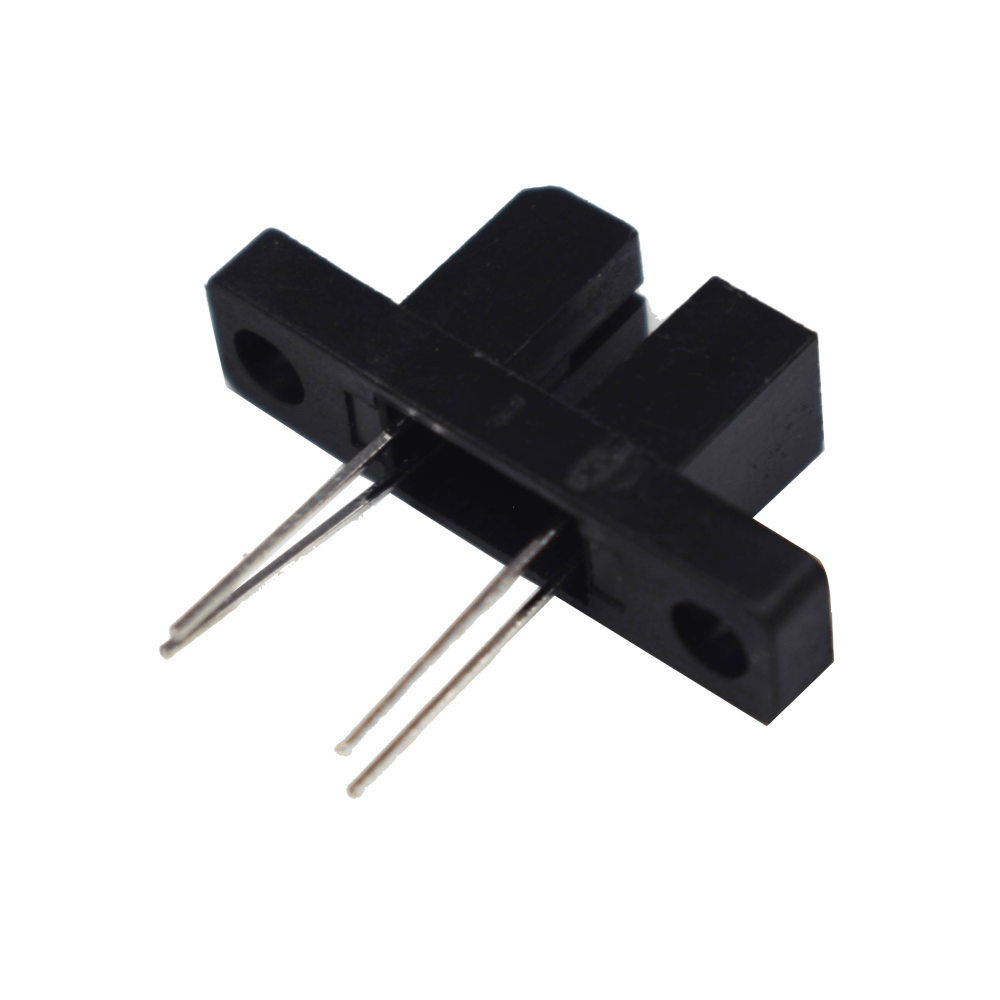

MOC7811 Slotted Opto Isolator Module
Buy MOC7811 Slotted Opto Isolator Module online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
The MOC7811 is an infrared-based optical sensor. It contains an IR emitter and receiver pair mounted facing each other. It can be used with encoders to detect wheel speed, angle, etc. When the light emitted by IR LED is blocked because of alternating slots on the encoder disc logic level of the photodiode changes. The microcontroller or discrete hardware can detect this shift in logic level.
Pinouts
- Cathode
- Collector
- Anode
- Emitter
- DC motor position/velocity control
- Factory automation robots
- Numerically controlled machinery
- Computer printers and plotters
Specification
| Model | MOC7811 |
| Width | 24.3mm |
| Height (excluded lead) | 10.2mm |
| Current Transfer Ratio (CTR) | 20mA |
| Type | Optical Switch |
| Application | Speed Sensor |
| Case | 354A |
| Pitch | 2.54mm |
| Make | Made in India |
| Country of Origin | China |
welcome
welcome
You May Also Like
View all →

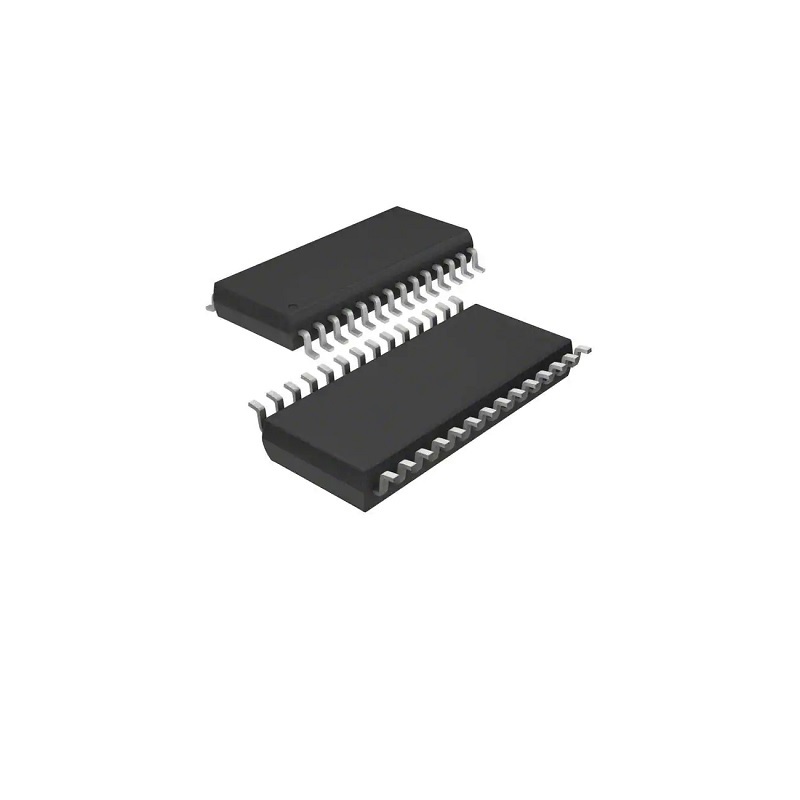

PIC24FJ256GA702-I/SO – MICROCHIP
₹ 189.75
Buy PIC24FJ256GA702-I/SO – MICROCHIP online, Order today to get instant delivery in all over india.
Buy 400 mAh 3.7V single cell Rechargeable LiPo Battery online, Order today to get instant delivery in all over india.
ABS07-32.768KHZ-T-Crystal
₹ 389.85
Buy ABS07-32.768KHZ-T-Crystal online, Order today to get instant delivery in all over india.

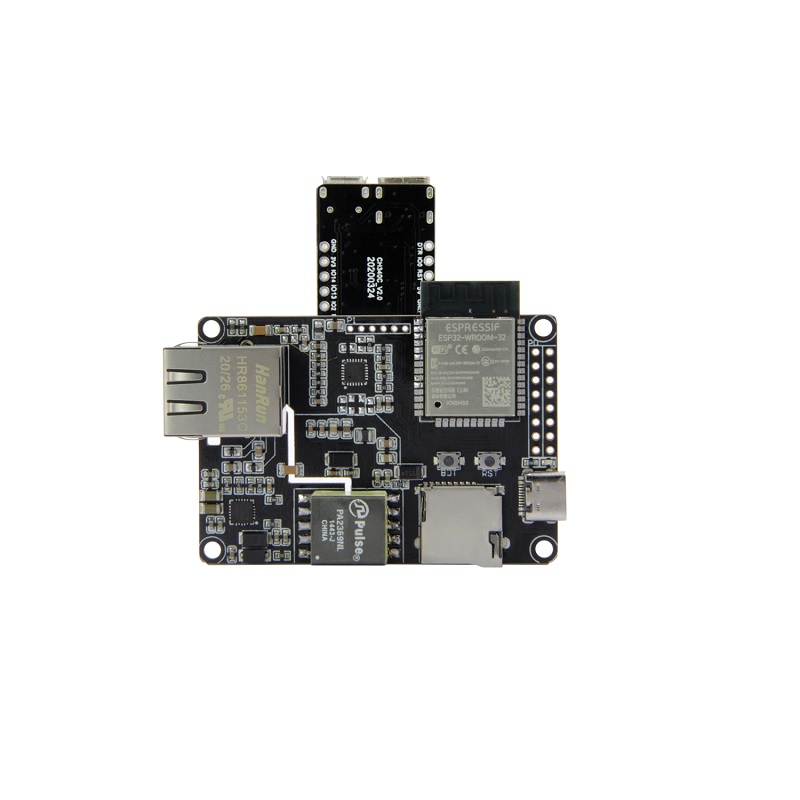

Buy Downloader Expansion Board for TTGO T-Internet- POE online, Order today to get instant delivery in all over india.
