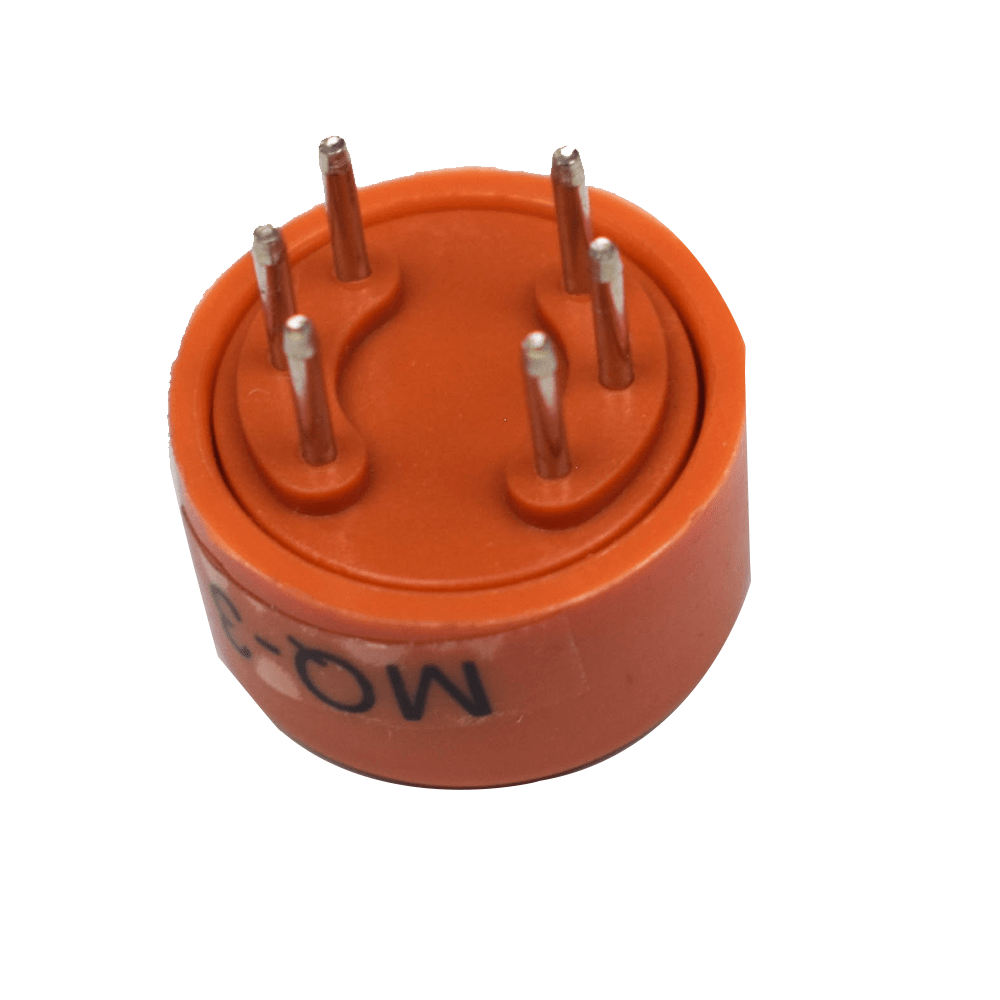

MQ-3 Alcohol Gas Sensor
Buy MQ-3 Alcohol Gas Sensor online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
This MQ-3 Alcohol gas sensor detects the concentration of alcohol gas in the air and produces an analogue voltage reading. Breathalyzers can detect concentrations ranging from 0.04 mg/L to 4 mg/L. The sensor operates in temperatures ranging from -10 to 50°C and draws less than 150 mA at 5 V. The heater creates the necessary working conditions for sensitive components. The enveloped MQ-3 has six pins, four of which are used to fetch signals and the other two to provide a heating current. The simple analogue voltage interface of the sensor requires only one analogue input pin from your microcontroller.
Features
- Very high sensitivity to Alcohol gas
- MQ3 Sensor is SnO2
Applications
- Traffic Police Drunk Drive detection system
- Portable alcohol detector.
SPECIFICATIONS
| Model |
MQ-3 |
| Type | Gas Sensor |
| No. of Pin |
06 |
| Input Voltage | 5V DC |
| Input Current | 150mA |
| Diameter | 17mm |
| Height | 8.8mm |
| Make | Made in India |
| Temperatures Range | -10 to 50° C |
| Detection Range | 25~500ppm alcohol |
| Country of Origin | China |
