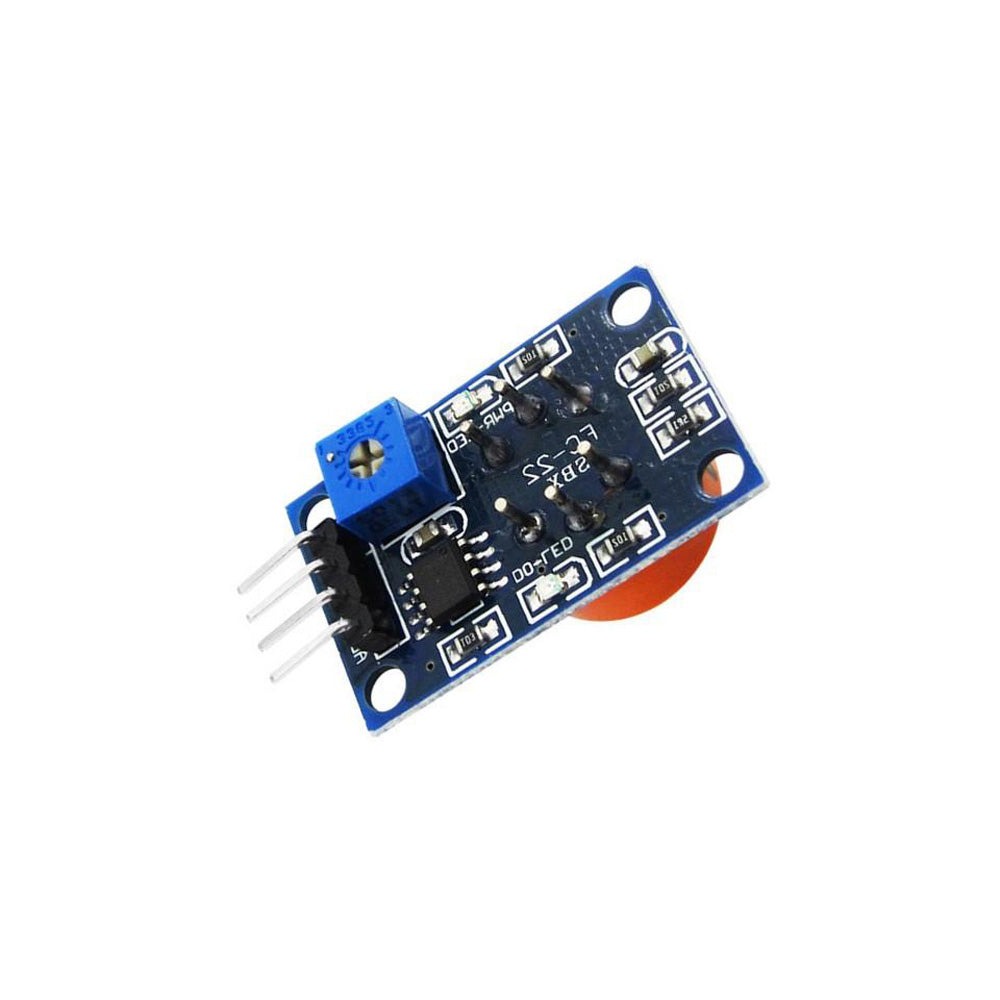

MQ3 Alcohol Sensor Module
Buy MQ3 Alcohol Sensor Module online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.
The MQ-3 module can detect alcohol, benzene, CH4, hexane, LPG, and CO. The sensitive material in the MQ-3 gas sensor is SnO2, which has a reduced conductivity in clear air. When the target alcohol gas is present, the sensor's conductivity increases in accordance with the increase in gas concentration. The MQ-3 sensor has a high sensitivity to alcohol and is resistant to fuel, smoke, and mist contamination. Based on the amount of alcohol in the system, this sensor produces an analog resistive output.
Features
- Sensor Type - Semiconductor
- Both digital and analog output.
- It provides an analog output corresponding to the concentration of the gas in the air.
- Sensitive to alcohol, ethanol
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator.
- The carbon monoxide detection with better sensitivity.
- Has a long service life and reliable stability.
- Sensors | Detecting Alcohol, Benzine | Portable alcohol detector
Specifications
| Supply Voltage | DC 5 V |
| Current Consumption | 150mA |
| Detecting Concentration | 0.05-10mg/L Alcohol |
| Dimensions | 32 x 22 x 16 mm |
| Country of Origin | China |
welcome
welcome
You May Also Like
View all →
Buy 4A 220V AC SPST Rocker Switch online, Order today to get instant delivery in all over india.

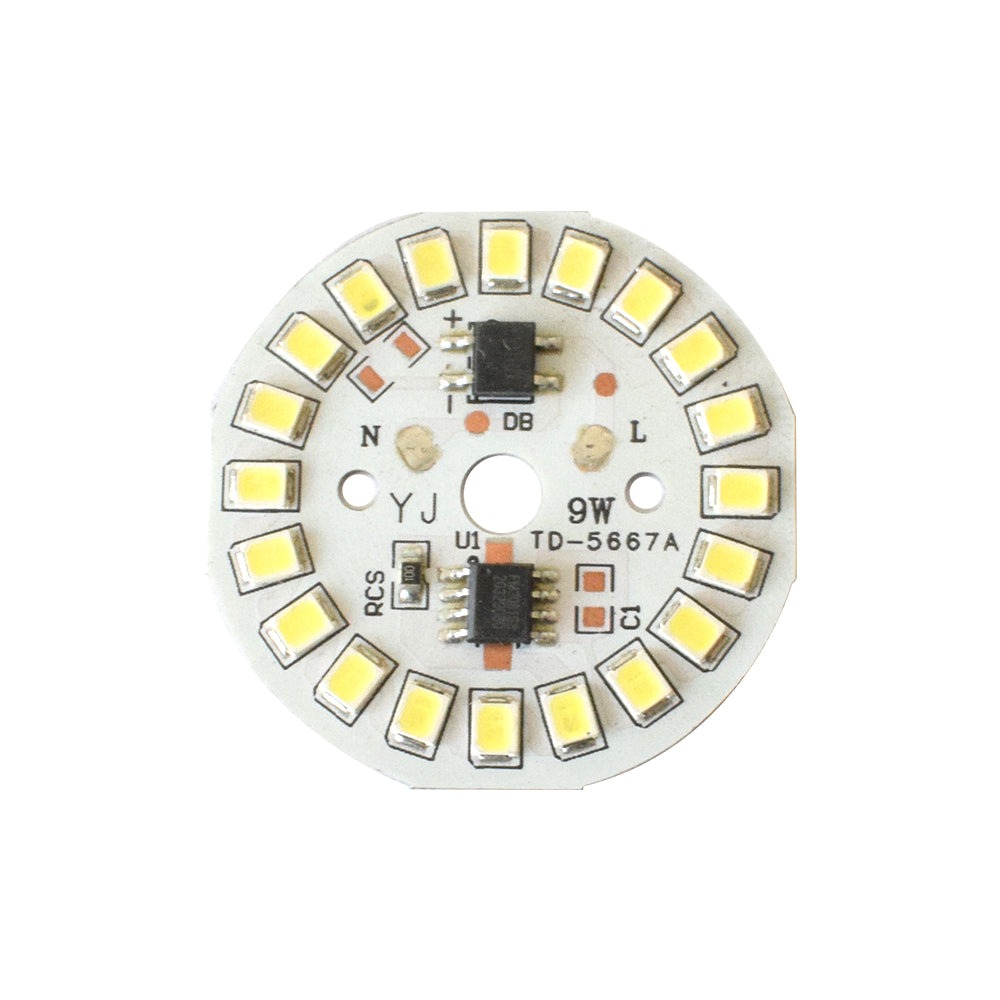

Buy 9W 220VAC White 38mm Round DOB LED online, Order today to get instant delivery in all over india.
