MULTICOMP PRO MP730679 Handheld Digital Multimeter, 1000V@20A AC/DC, 220MR, 220mF, 220MHz, True RMS, NCV, Diode, hFE, LPF

The MP730679 is a 1000V true RMS digital multi-meter which offers high levels of reliability and security, with a 22000 count display. With a large screen, high resolution analogue pointer display, full scale overload protection and unique appearance design, the device is an extremely practical electrical measuring meter. This device can measure AC/DC voltage/current, resistance, diode, transistor hFE, continuity, capacitance, frequency and duty ratio. Also features functions such as data transmission, data hold, relative value measurement, peak measurement, internal temperature alarm, low battery indication, backlight, auto power-off and NCV functions.

Features:

1. True RMS

2. Data hold/backlight

3. Max/Min/Relative mode

4. USB communication

5. Input protection

6. Diode/continuity test

7. NCV (audible/visual alarm)

8. LPF ACV

9. ACV+DCV

10. Transistor hFE
11. Peak Hold

Specifications:

1. Certifications: CE
2. Safety Ratings: CAT III 1000V/CAT IV 600V
3. AC voltage (V): 1000V ±(0.8% +10)
4. DC voltage (V): 1000V ±(0.5% +5)
5. AC current (A): 20A ±(0.8% +10)
6. DC current (A): 20A ±(0.5% +10)
7. Resistance (Ω): 220MΩ ±(0.05% +10)
8. Capacitance (F): 220mF ±(3% +5)
9. Frequency (Hz): 220MHz ±(0.01% +5)
10. Duty cycle (%): 0.1% to 99.9% ±(2% +5)
11. Display count: 22000
12. Bandwidth (Hz): 40kHz to 10kHz
13. Analog bar: 46

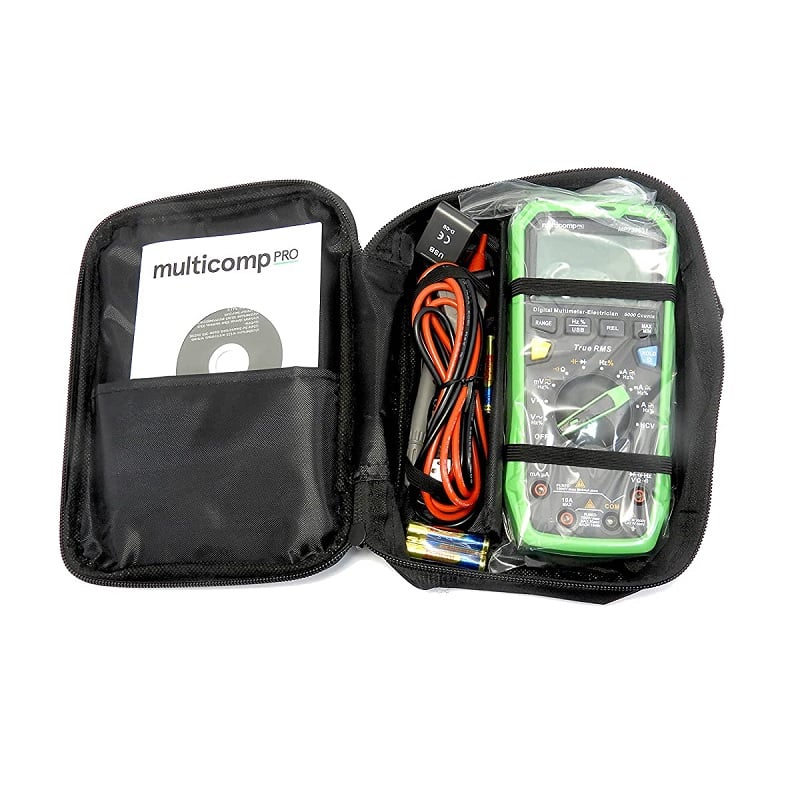

Packages Includes:

1 x MULTICOMP PRO MP730679 Handheld Digital Multimeter

4 x AAA batteries

1 x Testing Probe

1 x User Manual

1 x Software disk

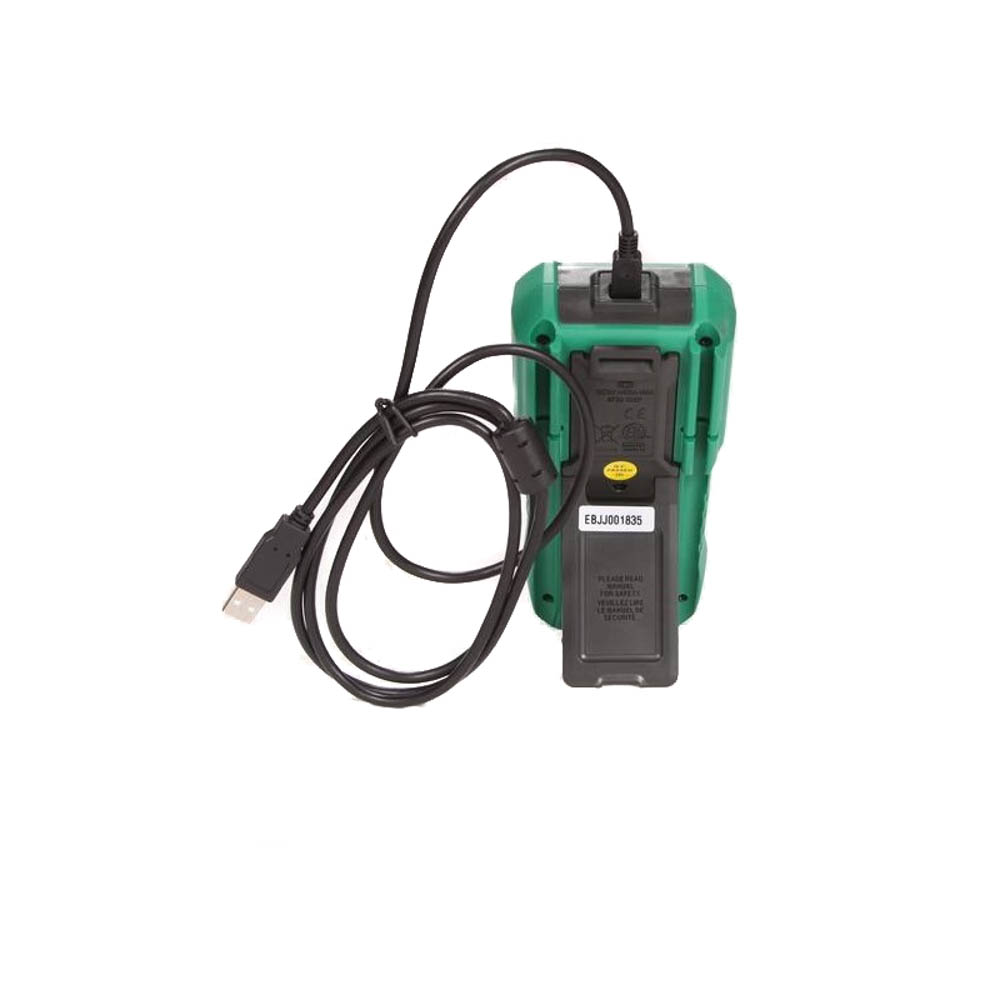

1 x USB Data transmission
