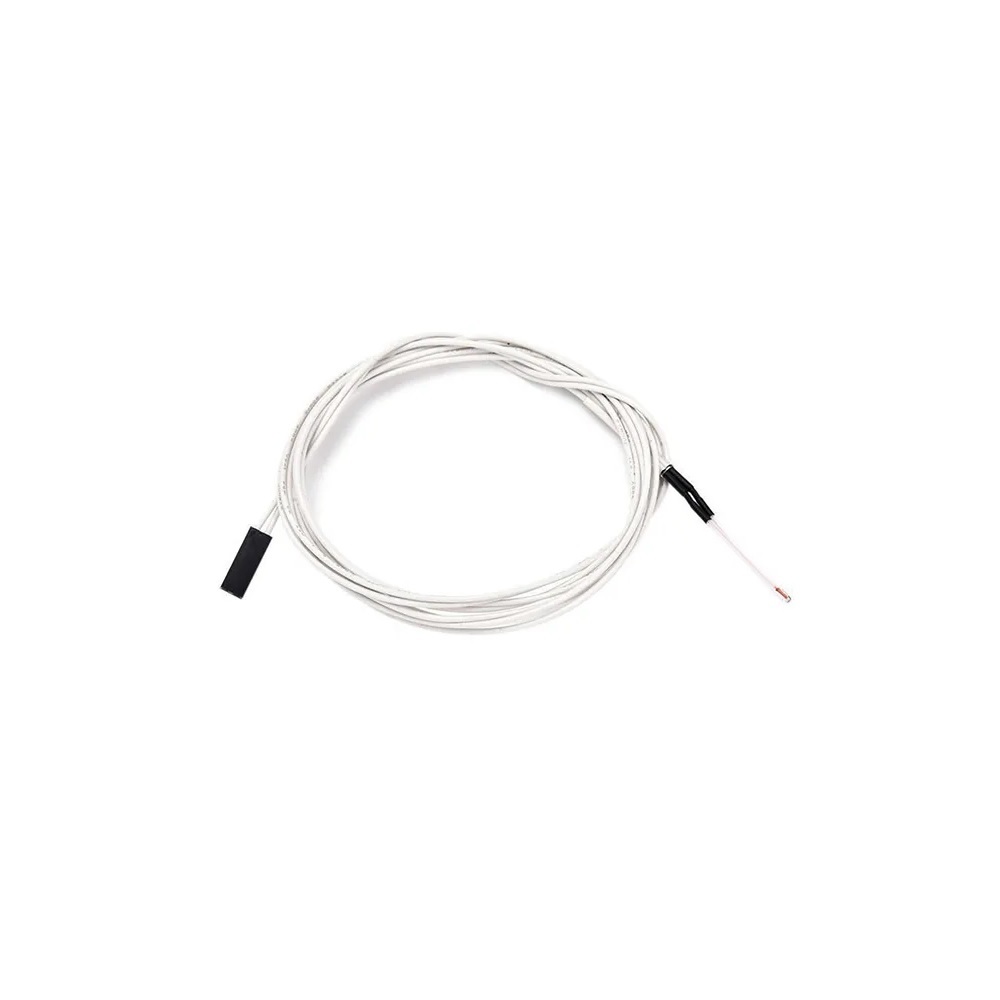

NTC B3950 100K Thermistors 1% with 1000mm Cable and 2pin 2.54mm Terminal

Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and results in temperature fluctuation that can affect the printing quality.

The improvements compared to the other temperature resistance in the market.

Featutes:

1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that supports the thermocouple.
2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, and can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.
3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.
4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers’ convenience, the wires adopt line connection, the customer can tear the wires depending on their application. The high-temperature line is double thicker than others in the market, not easy to break off.
5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets).
6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees).

Specifications:

1. 3D printer thermistors, temperature sensors.
2. NTC Thin Film Thermistor Cable
3. Impedance: 100KΩ
4. Accuracy: ±1%
5. Outer diameter: 1.05mm
6. Temp Range: 200 degrees / 300V
7. Material: Teflon wire conductors
8. Cable length: 1M
9. Main color: White
10. with socket.

Package Includes:

1 x NTC B3950 100K Thermistors 1% with 1000mm Cable and 2pin 2.54mm Terminal
