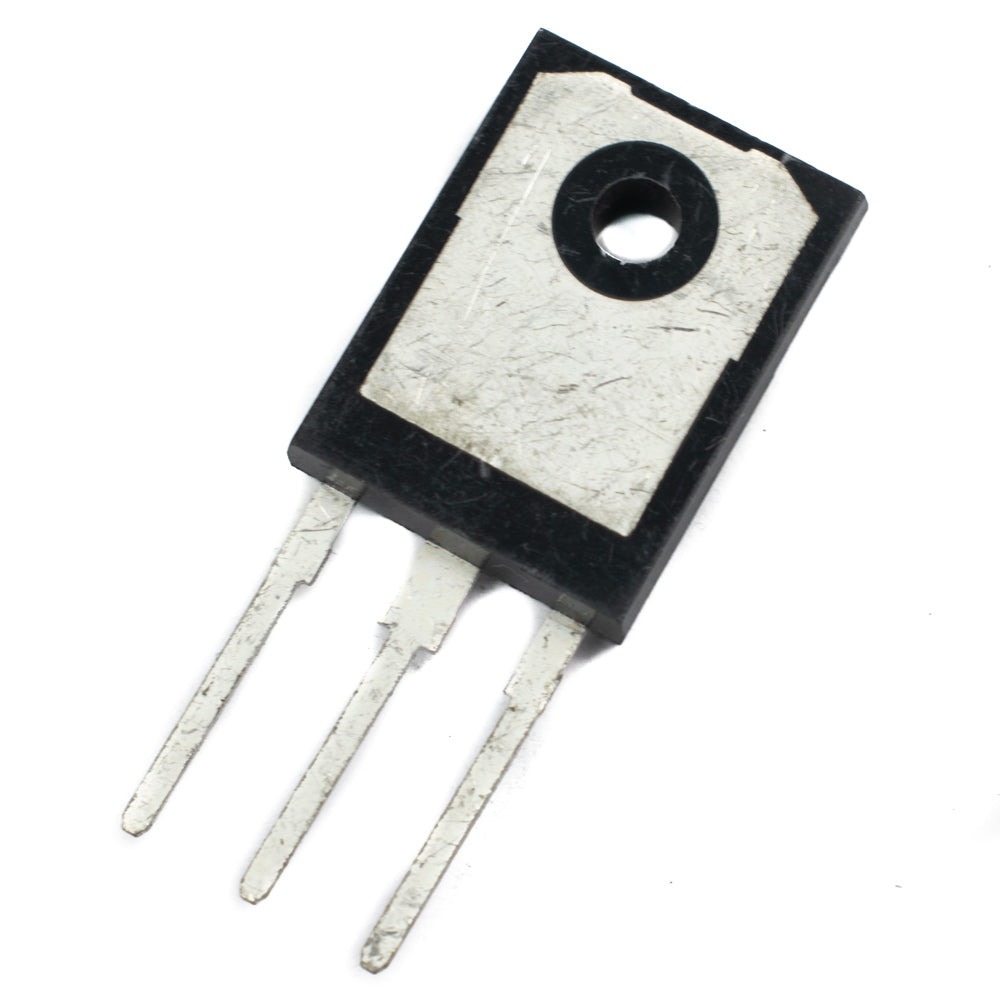

ONSEMI FGH40T120SMD 1200V 40A IGBT - Field Stop Trench

SKU: RZ24341570 Brand: ON Semiconductor Category: ICs & Semiconductors

₹ 345.00

Out of Stock

Buy ONSEMI FGH40T120SMD 1200V 40A IGBT - Field Stop Trench online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 338.10
11 – 30	3%	₹ 334.65
31 – 50	4%	₹ 331.20
51 – 100	5%	₹ 327.75

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand ON Semiconductor

Category ICs & Semiconductors

Subcategory Transistors

SKU RZ24341570

Using innovative field stop trench IGBT technology, ON Semiconductor’s new series of field stop trench IGBTs offer the optimum performance for hard switching applications such as solar inverter, UPS, welder and PFC applications.

Datasheet

Features

FS Trench Technology, Positive Temperature Coefficient
High-Speed Switching
Low Saturation Voltage: VCE(sat) = 1.8 V @ IC = 40 A
100% of the Parts Tested for ILM(1)
High Input Impedance
These Devices are Pb−Free and are RoHS Compliant

Applications

Solar Inverter, Welder, UPS & PFC applications

Specifications

Model	FGH40T120SMD,
Brand	FSC/ONSEMI
Collector to Emitter Voltage	1200V
Collector Current	40A @ 100°C
Max. Power Dissipation	277W
Max. Operating junction Temperature	175°C
Package	TO-247
Country of Origin	China
