Panasonic MIP2K4 High-Performance IPD for Battery Charger
🔍 Zoom

Panasonic MIP2K4 High-Performance IPD for Battery Charger

SKU: RZ24341313 Brand: Panasonic Category: Power Supply & Converters
₹ 58.05
Out of Stock

Buy Panasonic MIP2K4 High-Performance IPD for Battery Charger online, Order today to get instant delivery in all over india.

Bulk Discount Pricing
Quantity Discount Price / Unit
5 – 10 2% ₹ 56.89
11 – 30 3% ₹ 56.31
31 – 50 4% ₹ 55.73
51 – 100 5% ₹ 55.15

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details
Brand Panasonic
Subcategory Voltage Regulators
SKU RZ24341313

MIP2K4, MIP2Kx series is a high-performance IPD designed for 15W battery chargers and featuring built-in frequency jitter function at PWM control. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.

Quantity: 50 ICs

Features

  • Built-in jitter function
  • Built-in charge protection circuit
  • Built-in overheating, load shorting and overvoltage protection circuits

Applications

  • Chargers (for DSC, etc.), AC adapter
Specifications
Model MIP2K4
Brand PANASONIC
Output Up to 10W
VDSS 700V
ILIMIT 0.70A
R(DS)ON 7ohm
fosc 100kHz
∆f 5.5kHz
fM 260Hz
Analog IC - Other Type BATTERY CHARGE CONTROLLER
Control Technique
PULSE WIDTH MODULATION
Number of Functions 1
Number of Terminals
7
Package DIP
Mounting Through Hole
Country of Origin China

welcome

welcome

You May Also Like

View all →

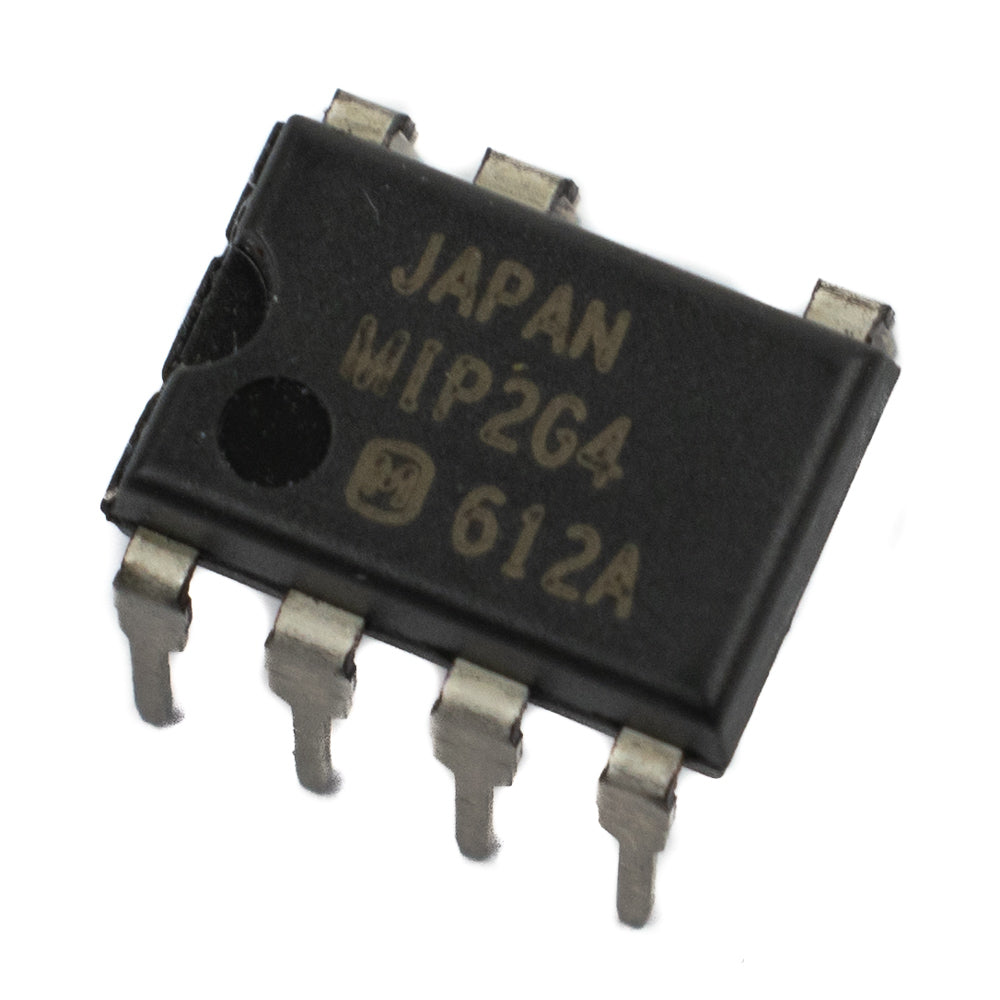

Panasonic MIP2G4 DIP-7 Package
