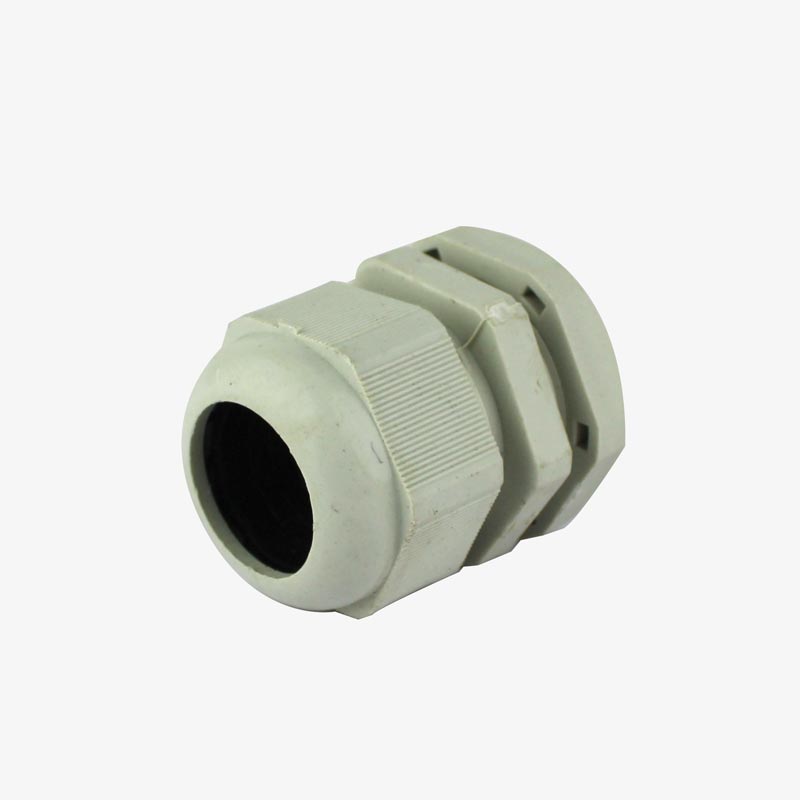

PG25 Cable Gland Connector (DIA-30mm) - Plastic Nylon Waterproof IP68 Wire Enclosures

SKU: RZ24331972 Category: Connectors & Cables

₹ 20.70

Out of Stock

Buy PG25 Cable Gland Connector (DIA-30mm) - Plastic Nylon Waterproof IP68 Wire Enclosures online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 20.29
11 – 30	3%	₹ 20.08
31 – 50	4%	₹ 19.87
51 – 100	5%	₹ 19.67

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Connectors & Cables

Subcategory Cables (General)

SKU RZ24331972

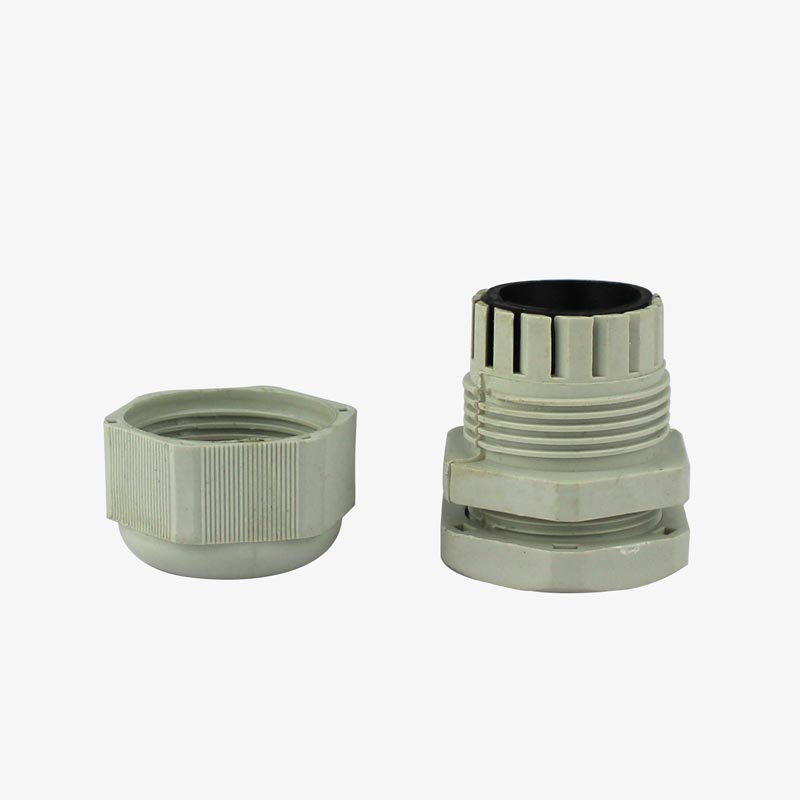

The PG Cable Gland Connector is a waterproof device that connects cables to enclosures. Made of durable plastic nylon material and rated IP68, it can withstand harsh environments. It consists of a threaded body, locking nut, sealing ring, and compression gland. The threaded body attaches to the housing, the locking nut secures the cable, the sealing ring creates a watertight seal, and the compression gland prevents the cable from being pulled out. The PG Cable Gland Connector is available in various sizes to accommodate different cable diameters.

Here is a chart of PG gland sizes with their corresponding cable diameter ranges:

PG Size	Cable Diameter Range (mm)
PG7	3-6.5
PG9	4-8
PG11	5-10
PG13.5	6-12
PG16	10-14
PG21	12-18
PG29	18-25
PG36	22-32
PG42	32-38
PG48	37-44
PG63	42-54
PG75	55-68

It's important to note that the above chart is a general guide, and actual cable diameter ranges may vary depending on the specific cable being used and the application requirements. It's always recommended to consult the manufacturer's specifications or consult with a professional when selecting the appropriate PG gland size for a particular application.
