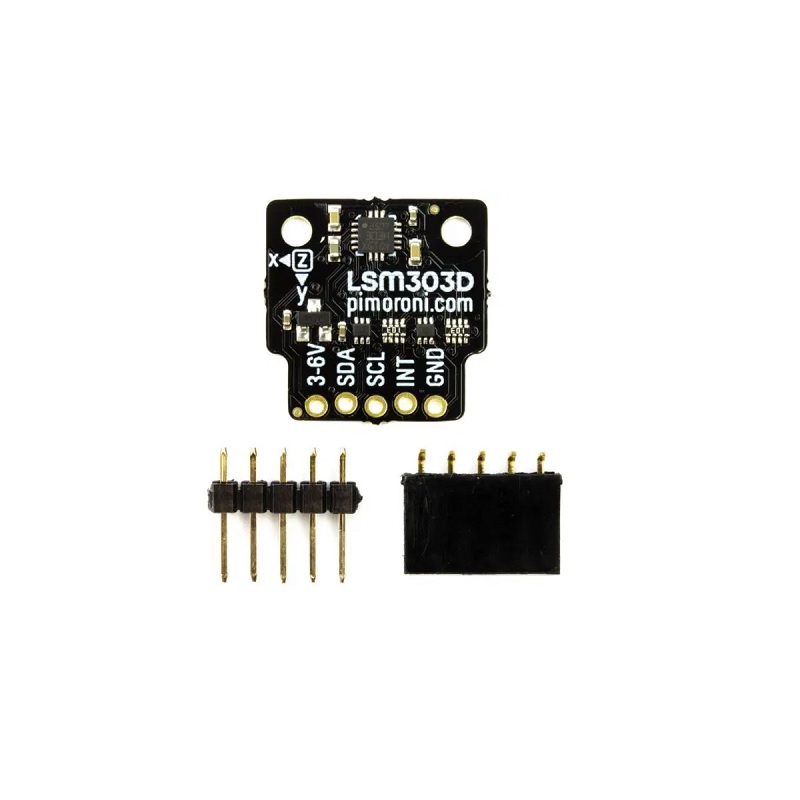

PIMORONI LSM303D 6DoF Motion Sensor Breakout

This is a PIMORONI LSM303D 6DoF Motion Sensor Breakout. The LSM303D 6d0F chip has an accelerometer, magnetometer, A / D converters and signal conditioning circuit integrated. The LSM303D 6DoF Breakout has an I2C interface and is 3.3V or 5V compatible. Still, the communication to the processor is done through the I2C bus. Thus only one chip is required to achieve a six-axis data detection and output. The LSM303D 6d0F requires very few peripheral devices.

Application:

1. Tilt compensated compass
2.  Map rotation
3.  Position detection
4.  Motion-activated functions
5. Free-fall detection
6.  Click/double click recognition
7.  Pedometer
8.  Intelligent power saving for handheld devices
9.  Display orientation
10.  Gaming and virtual reality input devices
11.  Impact recognition and logging
12.  Vibration monitoring and compensation

Features:

1. Integrated three-axis magnetometer and a tri-axial accelerometer with a digital interface.
2. Comes with automatic detection.
3. Also incorporates high-performance accelerometers.
4. Accelerometers can run on LOW power mode.
5. 16-bit data output
6. Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W

Package Includes:

1 x PIMORONI LSM303D 6DoF Motion Sensor Breakout
