RED 22 mm 12V-24 V Momentary Metal Switch

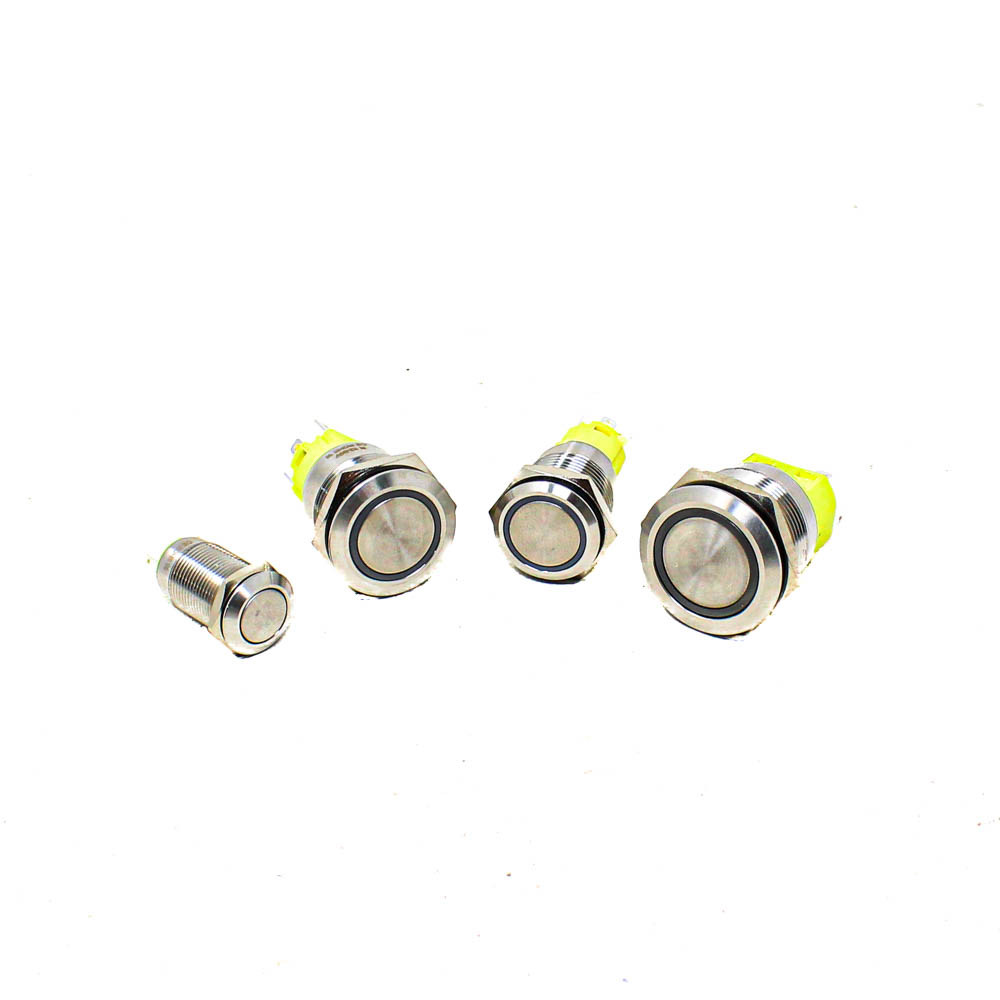

This Momentary Metal Pushbutton Switch is a perfect choice if you are in need of a heavy-duty push-button! These metal push buttons are a very tough, small, panel-mount switch with an illuminated Red LED ring. It is an SPDT with 22mm threading and 1mm pitch. It gives premium look to your dashboard or control panel with a Led Light ring around the push area of the switch. These switches are available in various LED light Colors, you can choose for your application purpose

Note:

1. Momentary means it turns off as soon as your pressure is released
2. Non-momentary switches maintain the positions even if we release the pressure.

Features:

1. Stainless steel material for long-term use
2. High-end appearance and good to touch
3. Inbuilt Colorful Ring illumination LED
4. Available in Various LED Color
5. Independent LED terminals
6. Bright daylight LEDs
7. Single pole push to make and Push to break Function
8. Front and rear panel seal to IP67
9. Integral supply resistors
10. TVS protection
11. Good electrical conductivity
12. Non-Momentary type push-button switch
13. Rubber ring and hexagon nut to fix, Waterproof and Dustproof

Specifications:

1. Operating Voltage (VDC): 12V-24 V
2. Max. Operating Current (mA): 2000
3. Light Color: Red
4. On/Off Function: Push to ON and Push to OFF
5. Switch Type: Momentary
6. Mounting Hole Diameter (mm): 22
7. Contact Type: Solder Type
8. Contact Material: Silver Alloy
9. Contact Resistance: ≤50 MΩ
10. Insulation Resistance (MΩ): ≥1000
11. Operating Temperature Range (°C): -20 to 55
12. Operation Force: About 3-5N
13. Body Material:  Stainless Steel and Plastic
14. Mech. & Electrical Lifecycle: ≈ 100,000
15. Protection Standard: IP67

Package Includes:

1 x RED 22 mm 12V-24 V Momentary Metal Switch
