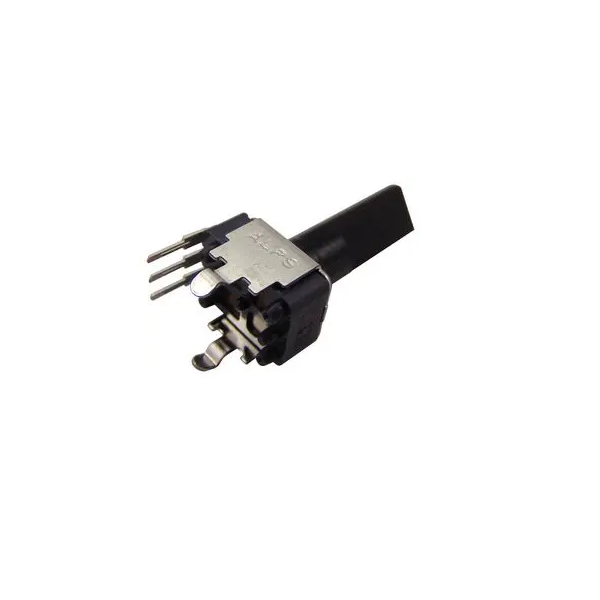

RK09K1130AH1-Rotary Potentiometer

RK09K1130AH1

Rotary Potentiometer, 10 Kohm, 1 Turns, Linear, 50 mW, ± 20%, RK09K Series

1. Single unit or dual unit resistor element
2. Flat knob and screwdriver type shafts are available
3. The length of the shaft varies from 15mm to 30mm
4. With or without center detent option available
5. Total resistance of 5Kohm, 10Kohm, 20Kohm, 50Kohm, 100Kohm and 200Kohm
6. Total resistance tolerance of ±20% and ±30%
7. Horizontal and vertical type mounting available
8. Operating temperature range -10°C to 70°C
9. Total rotational angle of 280° or 300°and maximum power rating up to 0.05W
10. 15A, 15C, 1B, 3B resistance taper available

Specifications:

1. Track Resistance: 10kohm
2. No. of Turns: 1Turns
3. Track Taper: Linear
4. Power Rating: 50mW
5. Resistance Tolerance: ± 20%
6. Product Range: RK09K Series
7. Potentiometer Mounting: Through Hole
8. Shaft Diameter: 6mm
9. No. of Gangs: 1
10. Adjustment Type: Flatted
11. Shaft Length: 17.4mm

Package Includes:

1 x RK09K1130AH1-Rotary Potentiometer
