Rotary Encoder

SKU: RZ24344193 Brand: Arduino Category: General

₹ 58.65

Out of Stock

Buy Rotary Encoder online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 57.48
11 – 30	3%	₹ 56.89
31 – 50	4%	₹ 56.30
51 – 100	5%	₹ 55.72

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Arduino

Category General

Subcategory General

SKU RZ24344193

The rotary encoder is used to detect axial movement and its direction. Rotary Encoder is an incremental electro-mechanical device that converts the angular position or motion of a shaft or axle to digital code. The rotary encoder with nut has a fixed number of positions per revolution. These positions are easily felt as small “clicks” you turn the encoder. The digital output code is in form of 2-bit Gray code. Operating voltage required for the device is 5V.

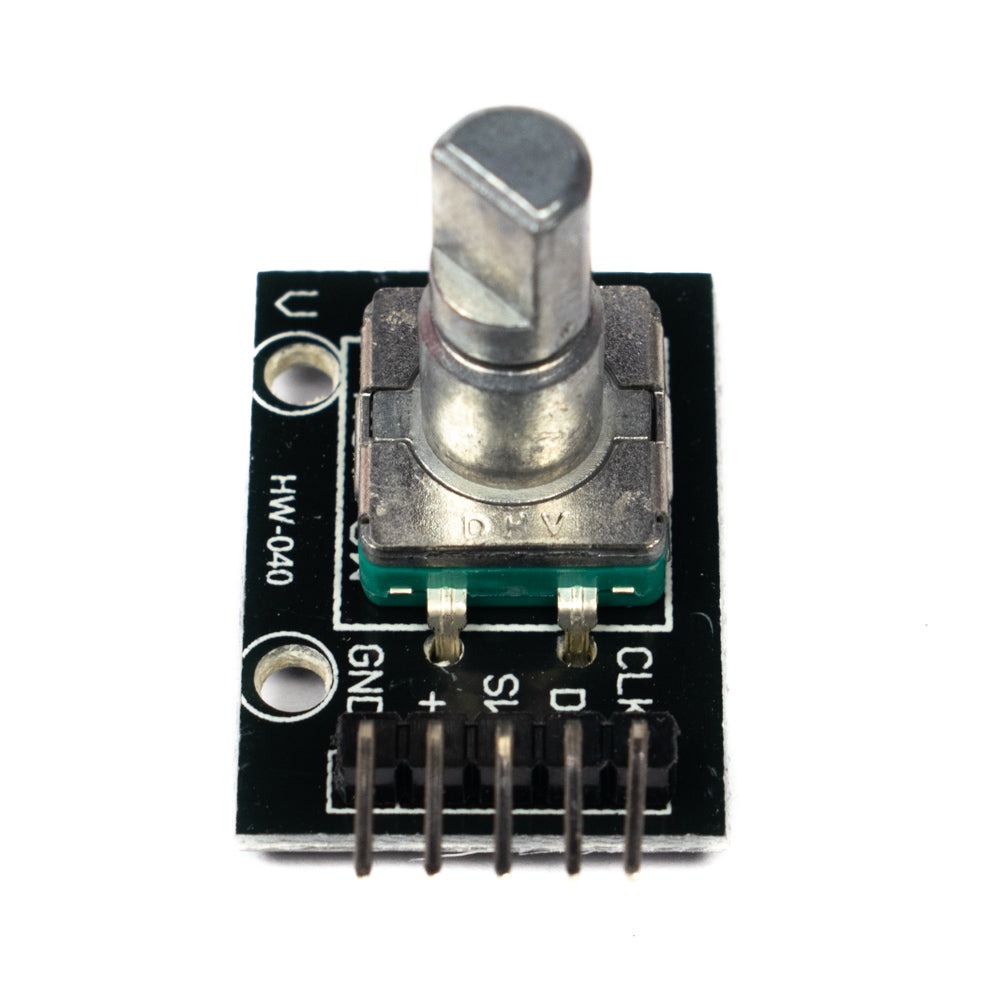

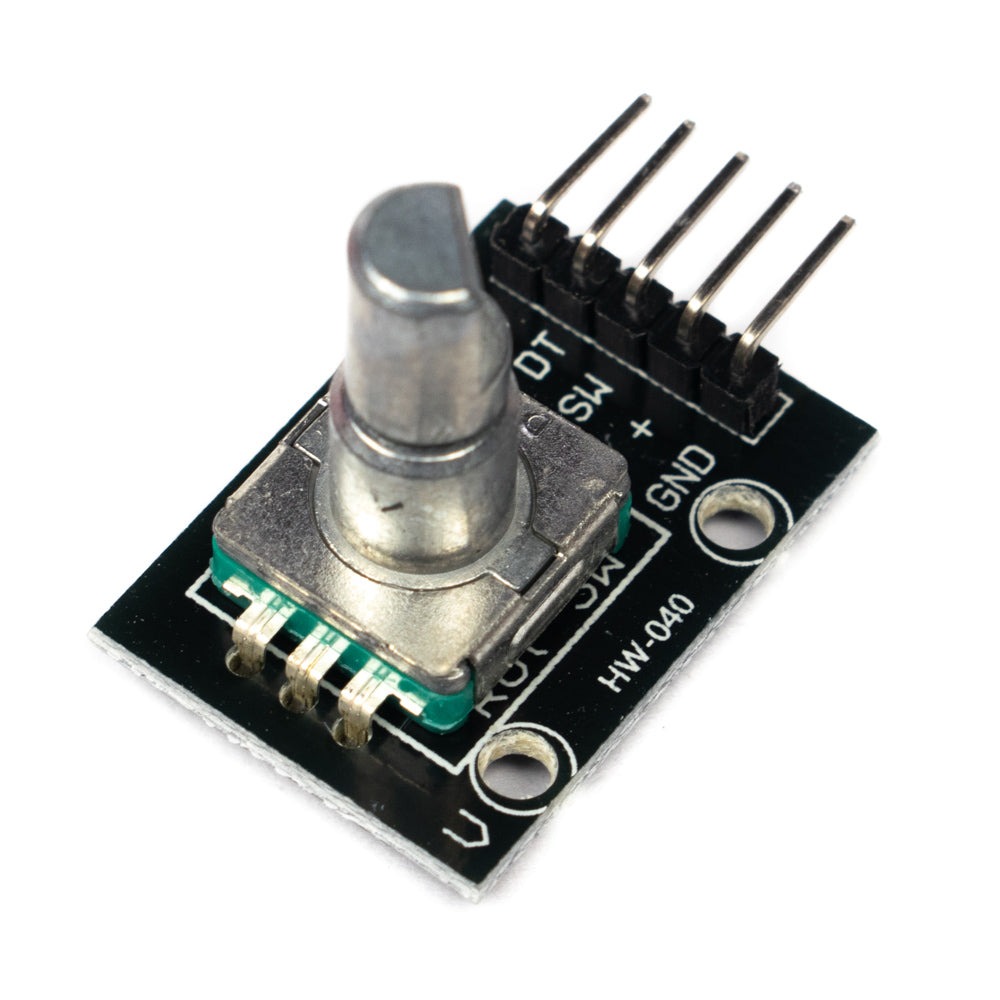

There are 5 pins in this module i.e., GND, +, SW, DT and CLK. GND and + are connected to ground and positive terminal of power supply respectively. SW is an output pin and gives an output of the internal button. DT and CLK are data and clock pin as well as Contact A output and Contact B output pin respectively. Pulses per 360° rotation are 20.

This module is designed in such a way that output is low when the switches are closed and high when the switches are open. Rotary Encoder is usually used for stepper and servo motor control. It can also be used as a digital potentiometer.

Features

Can work on low voltages.
High precision.
Output is in 2-bit Gray code.

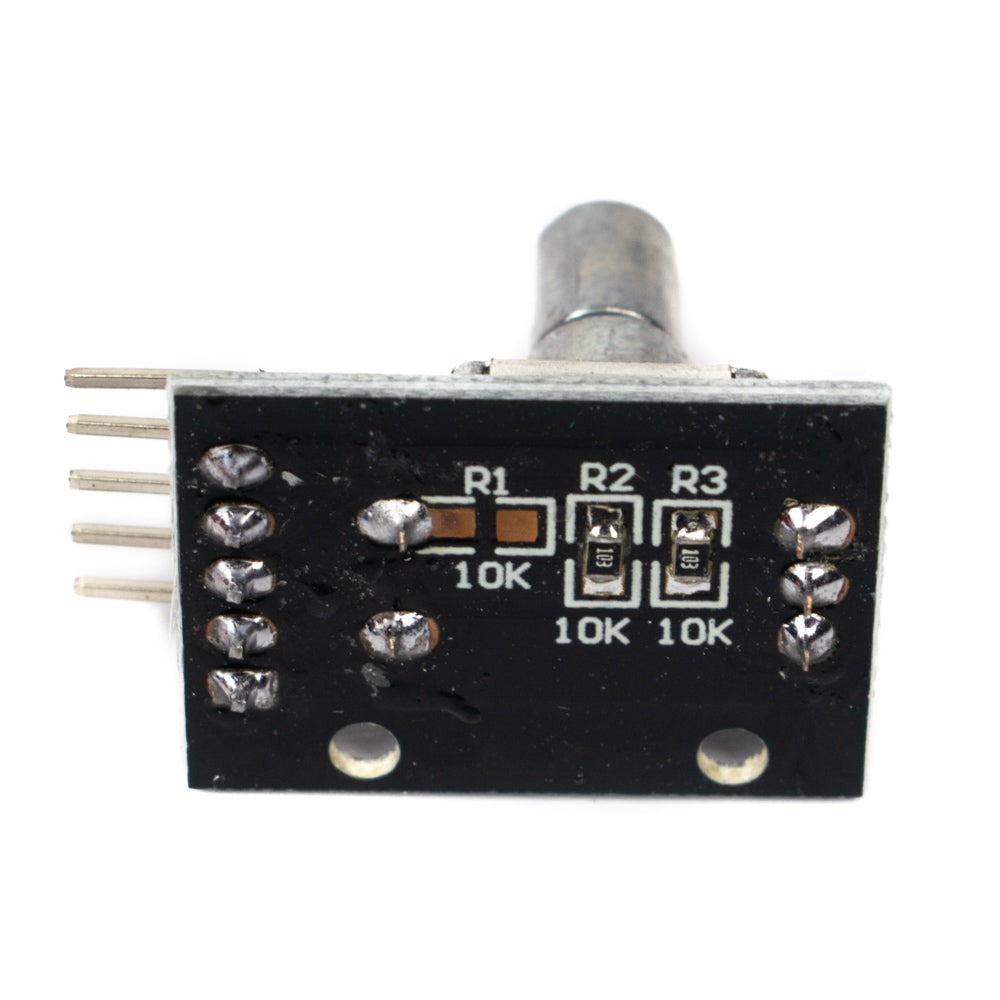

Inbuilt 10K Ohm resistor.
It is compatible with Arduino and raspberry pi controller boards.

Specification

Operating voltage	3V-5V DC
Encoder Type	Incremental
Pulses/360° Rotation	20
Output	2-bit grey code
Mechanical Angle	360° continuous
Dimensions	30 x 18 x 30 mm
Operating Temperature	0°C to 80°C
Country of Origin	China
