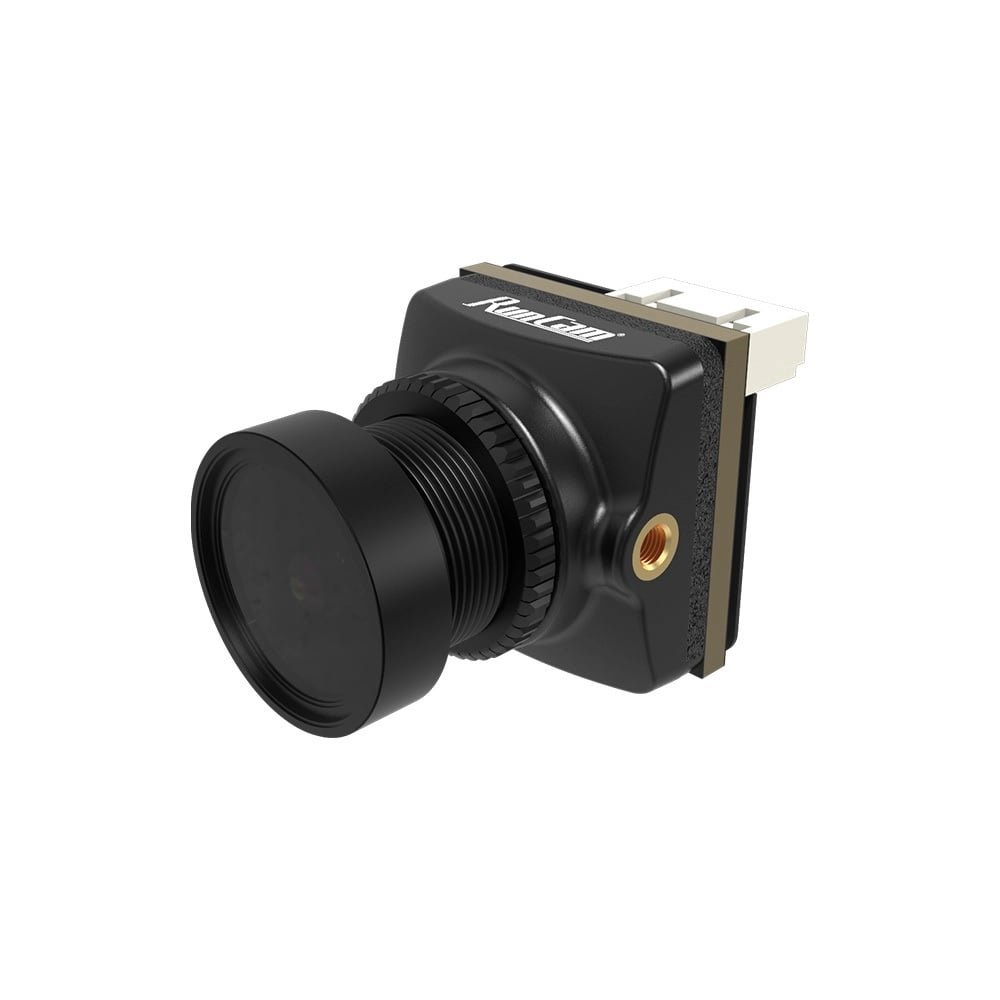

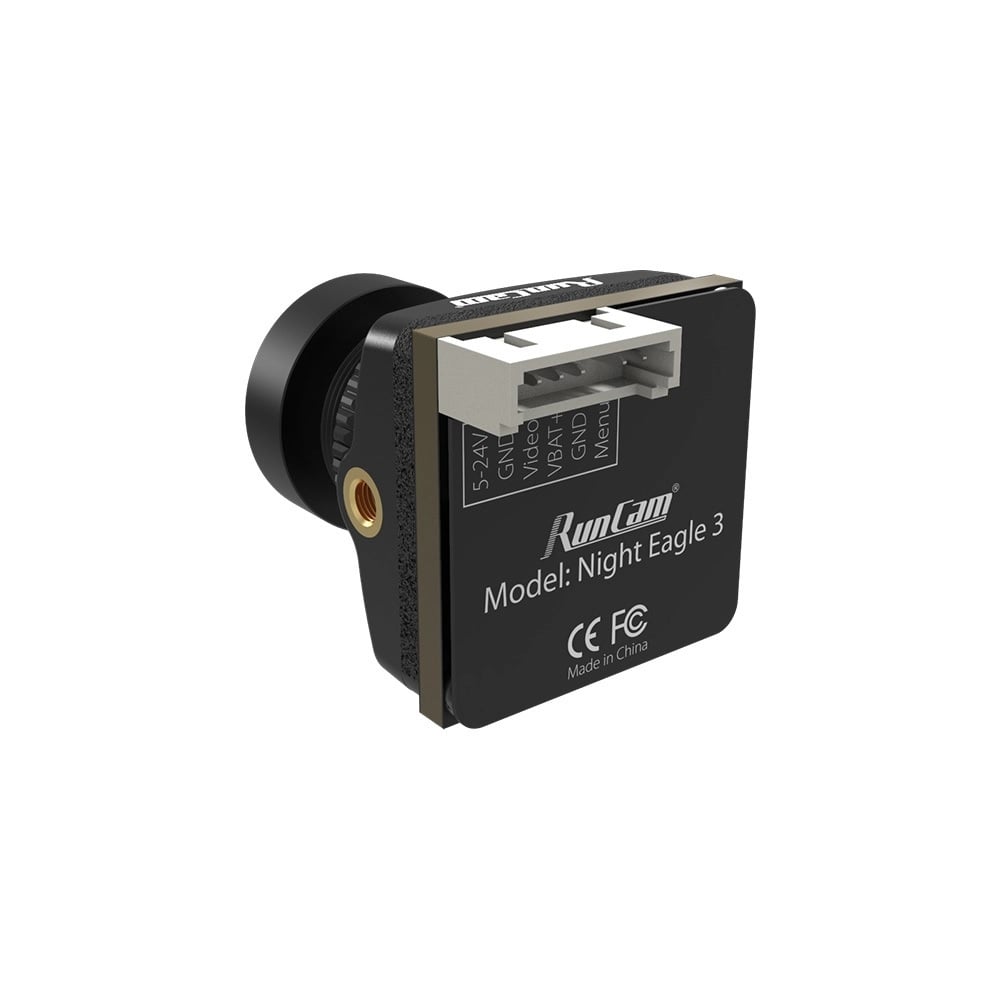

RunCam Eagle 3 Night Vision Camera with OSD

The RunCam Night Eagle 3 is an ultra-sensitive night flight camera. The camera has an OSD for displaying a pilot ID, power-on time, and external battery voltage. Micro-size 19x19mm. It is one of the best night vision of analog FPV cameras, the Eagle 3 aims to take back the crown with its clear, high-resolution picture and wide range of applications – doing exceptionally in low-light scenarios with its Starlight CMOS sensor.

Specifications and Features:

1. Model: RunCam Night Eagle 3
2. Image Sensor: 1/2.8”2MP
3. Horizontal Resolution: 1000TVL
4. Lens: FOV D:125° H:107° V:56° FOV D:97° H:75° V:56°
5. Screen Format: 16:9 4:3
6. Signal System: TSC / PAL Switchable
7. Integrated OSD: Yes
8. Mirror/Flip: Available
9. S/N Ratio: >50dB
10. Electronic Shutter Speed: Auto
11. Sensitivity: 11390 mV/Lux-sec
12. Day/Night: Black & White
13. Menu Control: Joystick Control
14. Operating Power: DC 5-24V
15. Operating Current: 90mA@12V / 250mA@5V
16. Housing Material:  ABS
17. Net Weight: 8.5g

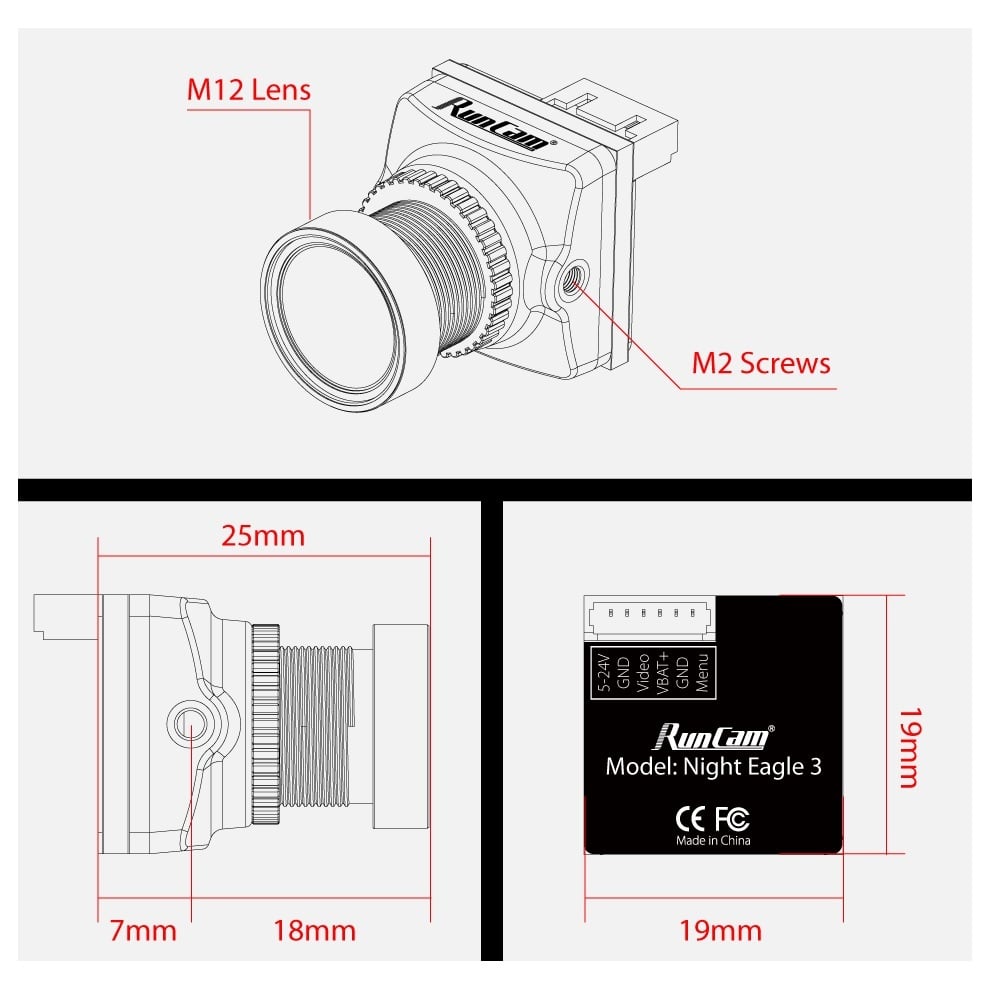

18. Dimensions (L x W x H)mm:  19 x 19 x 25

Package Includes:

1 x RunCam Eagle 3 Night Vision Camera

1 x ABS bracket

1 x 5D-OSD menu cable

1 x 6pin FPV silicone cable

1 x Set of screws

1 x User Manual
