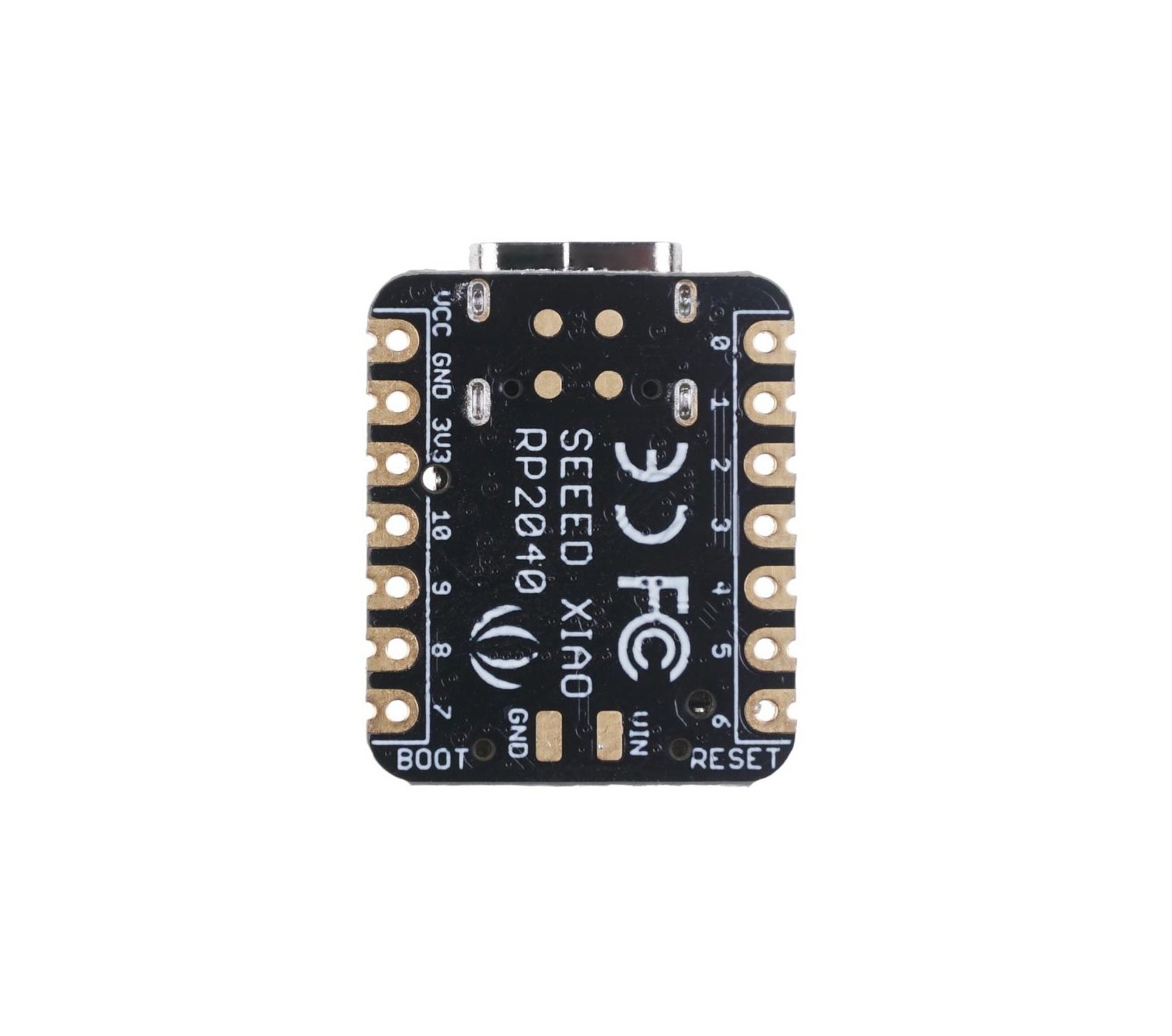

Seeed Studio XIAO RP2040 v1.0

The XIAO RP2040 is as small as the Seeeduino XIAO but it’s more powerful. On one hand, it carries the powerful Dual-core RP2040 processor that can flexible clock running up to 133 MHz which is a low-power microcontrollers. On the XIAO RP2040 there is also 264KB of SRAM, and 2MB of on-board Flash memory which can provide more program to save and run. On the other hand, this little board has good performance in processing but needs less power.
All in all, it is designed in a tiny size as small as a thumb(20×17.5mm) and can be used for wearable devices and small projects.

There are 14 GPIO PINs on XIAO RP2040, on which there are 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interfac

Hardware:

Features:

1. Powerful MCU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
2. Rich on-chip resources: 264KB of SRAM, and 2MB of on-board Flash memory
3. Flexible compatibility: Support Micropython/Arduino/CircuitPython
4. Easy project operation: Breadboard-friendly & SMD design, no components on the back

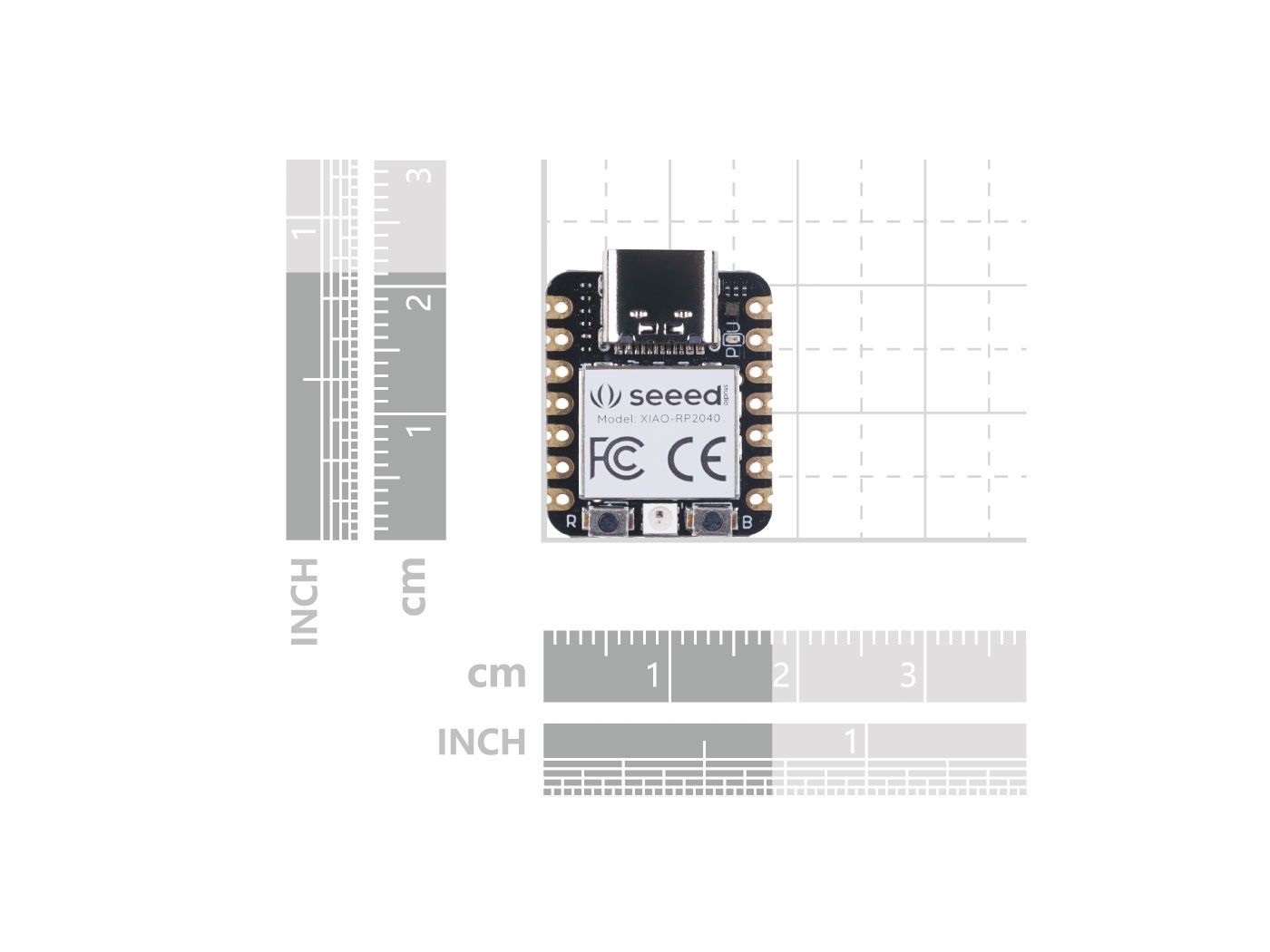

5. Small size: As small as a thumb(20×17.5mm) for wearable devices and small projects.
6. Multiple interfaces: 11 digital pins, 4 analog pins, 11 PWM Pins,1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface.

Application:

1. Wearable devices
2. Rapid prototyping (directly attached to the expanded PCB as a minimal system)
3. Perfect for all the projects that need mini Arduino
4. DIY keyboard
5. USB development (USB to multi-channel TTL/USB host mode, etc.)

Package Includes:

1 x XIAO RP2040 Microcontroller
